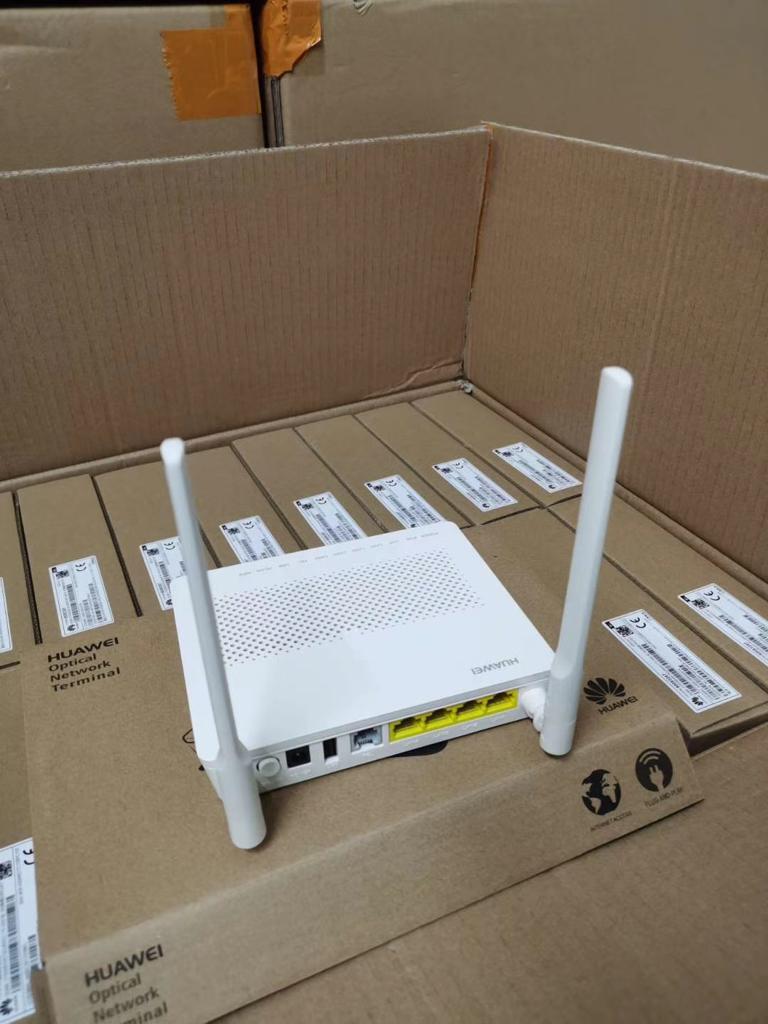

Huawei HG8546M ONU XPON Router
![Buy Huawei HG8546M ONU XPON Router in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/97/a1efcc9d-df79-4cae-8b07-c93f7dc992da.jpg.jpg "Buy Huawei HG8546M ONU XPON Router in [storefront]"){kind=small}
![Buy Huawei HG8546M ONU XPON Router in [storefront]](images/detailed/97/a1efcc9d-df79-4cae-8b07-c93f7dc992da.jpg "Buy Huawei HG8546M ONU XPON Router in [storefront]")
Product Description
Item Parameters Specification
Interface
PON Port
1 XPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 ,Transmission distance 20KM, Ethernet Port(LAN), 1*GE Auto-negotiation RJ45 ports, Full Duplex / Half-DuplexRJ45, Auto-MDI/MDI-X, Power Supply Port 12V DC input
Network Management
Support IEEE802.3 QAM, ONU can be remotely managed by OLT
Support Remote management through SNMP and Telnethttps://www.router-switch.com/pdf/huawei-4g-router-b315-datasheet.pdf
Local management
Management Function Status monitor, Configuration management, Alarm management, Log management
Environmental Specifications
Power
External 12V 0.5A AC/DC power supply adapter
Power consumption: <3W
Dimensions
78mm(L) x78mm(W) x25mm (H)
0.1kg
Environment
Operating Temperature:0~50℃
StorageTemperature:-40~85℃
Operating Humidity:10%~90%(Non-condensing)
StorageHumidity:5%~95%(Non-condensing)
