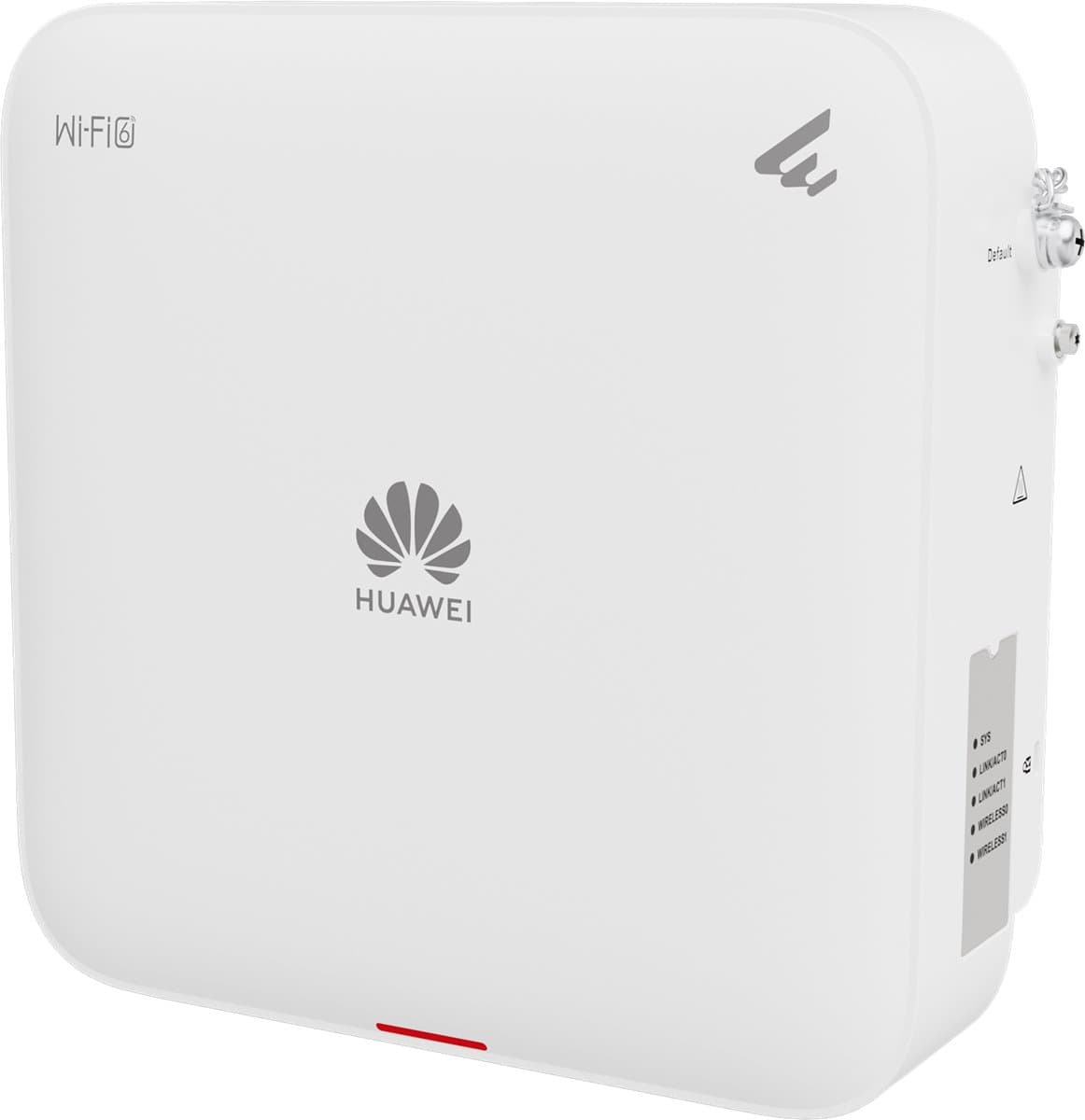

Huawei eKitEngine AP761 Access Point

The Huawei eKitEngine AP761 is an industrial-grade Wi-Fi 6 outdoor access point designed for high-density public environments such as stadiums, squares, pedestrian streets, and amusement parks. It delivers strong outdoor coverage, advanced durability with IP68 protection, and flexible deployment options through both optical and electrical uplink ports.

Specifications

• Model: AP761
• Product Type: Outdoor wireless access point (Wi-Fi 6)
• Wireless Standard: IEEE 802.11ax (Wi-Fi 6)
• Frequency Bands: 2.4 GHz and 5 GHz dual-band
• MIMO: 2×2 MU-MIMO on both 2.4 GHz and 5 GHz bands
• Antenna Type: Built-in directional antennas
• Maximum Users: Up to 1024 users, recommended up to 120 users
• Ports: 1 × GE electrical port, 1 × SFP optical port
• Protection Rating: IP68 waterproof and dustproof
• Surge Protection: 6 kA Ethernet port surge protection
• Operating Temperature: –40°C to +65°C
• Working Modes: Fit mode, Fat mode, cloud management mode
• Leader AP Function: Can act as local controller for other APs in the same network
• Bluetooth O&M: Built-in Bluetooth module for maintenance via CloudCampus App
• Location Support: Works with location server for Bluetooth terminal and tag positioning
• Management: Cloud-based management, local controller (WAC), or standalone configuration
• Installation Type: Outdoor pole or wall mounting
• Package Contents: Device, mounting kit
• Usage Scenarios: Stadiums, public squares, pedestrian streets, amusement parks, large outdoor venues
