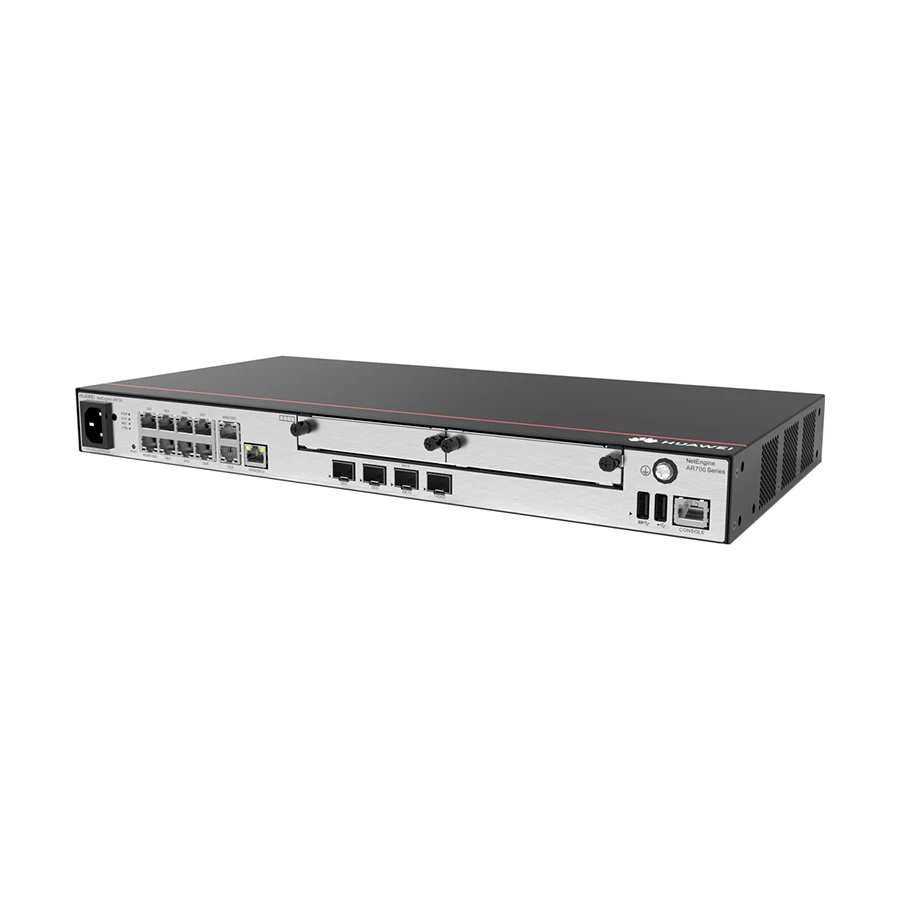

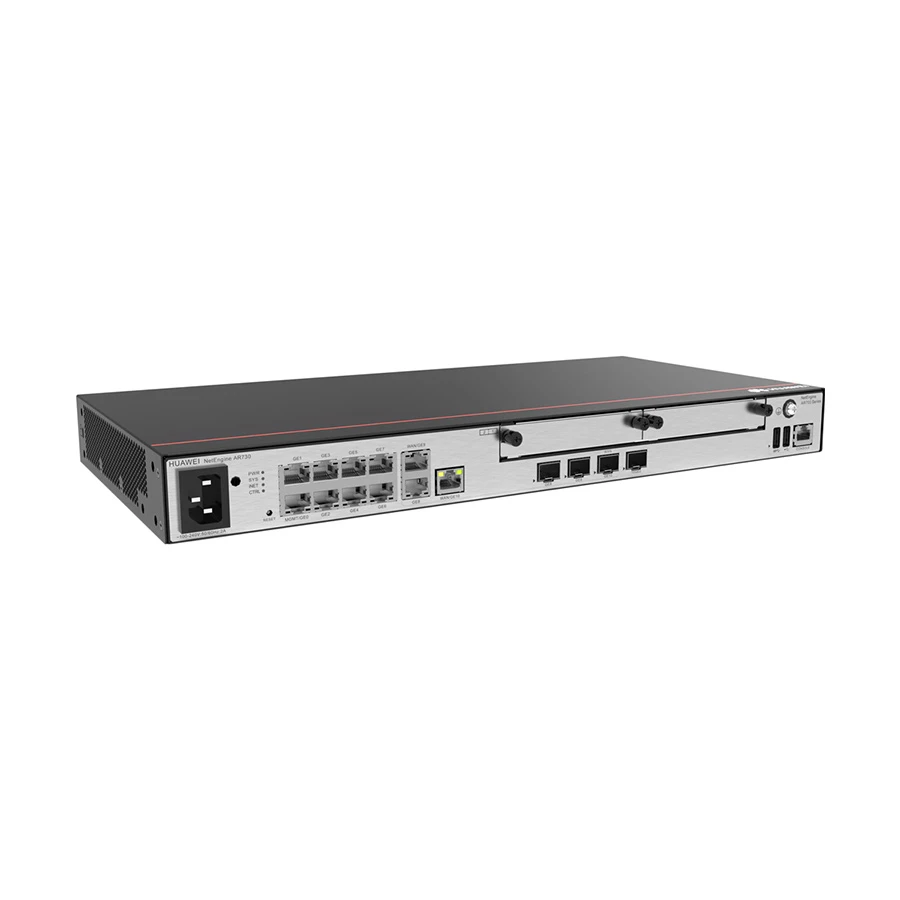

Huawei AR730 Router
![Buy Huawei AR730 Router in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/124/huawei-ar730-8-port-ge-gigabit-ethernet-ekit-11709036038.webp.jpg "Buy Huawei AR730 Router in [storefront]"){kind=small}
![Buy Huawei AR730 Router in [storefront]](images/detailed/124/huawei-ar730-8-port-ge-gigabit-ethernet-ekit-11709036038.webp "Buy Huawei AR730 Router in [storefront]")
![Buy Huawei AR730 Router in [storefront]](images/detailed/124/huawei-ar730-8-port-ge-gigabit-ethernet-ekit-21709036039.webp "Buy Huawei AR730 Router in [storefront]")
![Buy Huawei AR730 Router in [storefront]](images/detailed/124/huawei-ar730-8-port-ge-gigabit-ethernet-ekit-31709036039.webp "Buy Huawei AR730 Router in [storefront]")
![Buy Huawei AR730 Router in [storefront]](images/detailed/124/huawei-netengine-ar730-r_25740.jpg "Buy Huawei AR730 Router in [storefront]")
![Buy Huawei AR730 Router in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/124/huawei-ar730-8-port-ge-gigabit-ethernet-ekit-11709036038.webp.jpg "Buy Huawei AR730 Router in [storefront]")
![Buy Huawei AR730 Router in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/124/huawei-ar730-8-port-ge-gigabit-ethernet-ekit-21709036039.webp.jpg "Buy Huawei AR730 Router in [storefront]")
![Buy Huawei AR730 Router in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/124/huawei-ar730-8-port-ge-gigabit-ethernet-ekit-31709036039.webp.jpg "Buy Huawei AR730 Router in [storefront]")
![Buy Huawei AR730 Router in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/124/huawei-netengine-ar730-r_25740.jpg.jpg "Buy Huawei AR730 Router in [storefront]")
AR730
BrandHuawei
ConditionNew
ConnectivityEthernet Router
Device MountingWall Mount, Rack Mount
Warranty IssuerManufacturer
Please sign in so that we can notify you about a reply
Installation type:
Rack
Work bench
Against the wall
Dimensions without packaging (H x W x D) [mm(in.):
Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)
Dimensions with packaging (H x W x D) mm(in.): 90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.)
Chassis height [U]:1 U
Weight with packaging [kg(lb)]:4.6 kg (10.12 lb)
Weight without packaging [kg(lb)]:3.2 kg (7.04 lb)
CPU:1.4 GHz, 4 Cores
Memory:4 GB
NAND Flash:1 GB
Console port:RJ45
RTC:Supported
Maximum power consumption [W]:33 W
Power supply mode:AC built-in
Number of power modules: 1
Rated input voltage [V] :100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V] :90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]:2 A
Maximum output power [W]:70 W
Type of fans:Built-in
Number of fan modules:0
Heat dissipation mode:Air cooling
Airflow direction:Left to right
Extended slots (standard configuration) :2 x SIC
Number of service board slots:2
LAN ports:8 x GE electrical interfaces, 1 x GE combo interface
WAN ports:2 x GE combo interfaces, 1 x 10GE optical interface (SFP+)
Redundant power supply:Not supported
RPS input:Not supported
PoE:Not supported
Noise at normal temperature (acoustic power) [dB(A)]:52.3 dB(A)
Long-term operating temperature [°C(°F)]:0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]:-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]:5% RH to 95% RH, non-condensing
Rack
Work bench
Against the wall
Dimensions without packaging (H x W x D) [mm(in.):
Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)
Dimensions with packaging (H x W x D) mm(in.): 90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.)
Chassis height [U]:1 U
Weight with packaging [kg(lb)]:4.6 kg (10.12 lb)
Weight without packaging [kg(lb)]:3.2 kg (7.04 lb)
CPU:1.4 GHz, 4 Cores
Memory:4 GB
NAND Flash:1 GB
Console port:RJ45
RTC:Supported
Maximum power consumption [W]:33 W
Power supply mode:AC built-in
Number of power modules: 1
Rated input voltage [V] :100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V] :90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]:2 A
Maximum output power [W]:70 W
Type of fans:Built-in
Number of fan modules:0
Heat dissipation mode:Air cooling
Airflow direction:Left to right
Extended slots (standard configuration) :2 x SIC
Number of service board slots:2
LAN ports:8 x GE electrical interfaces, 1 x GE combo interface
WAN ports:2 x GE combo interfaces, 1 x 10GE optical interface (SFP+)
Redundant power supply:Not supported
RPS input:Not supported
PoE:Not supported
Noise at normal temperature (acoustic power) [dB(A)]:52.3 dB(A)
Long-term operating temperature [°C(°F)]:0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]:-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]:5% RH to 95% RH, non-condensing
Condition
- New
Device Mounting
- Rack Mount
- Wall Mount
Warranty Issuer
- Manufacturer
No reviews found
