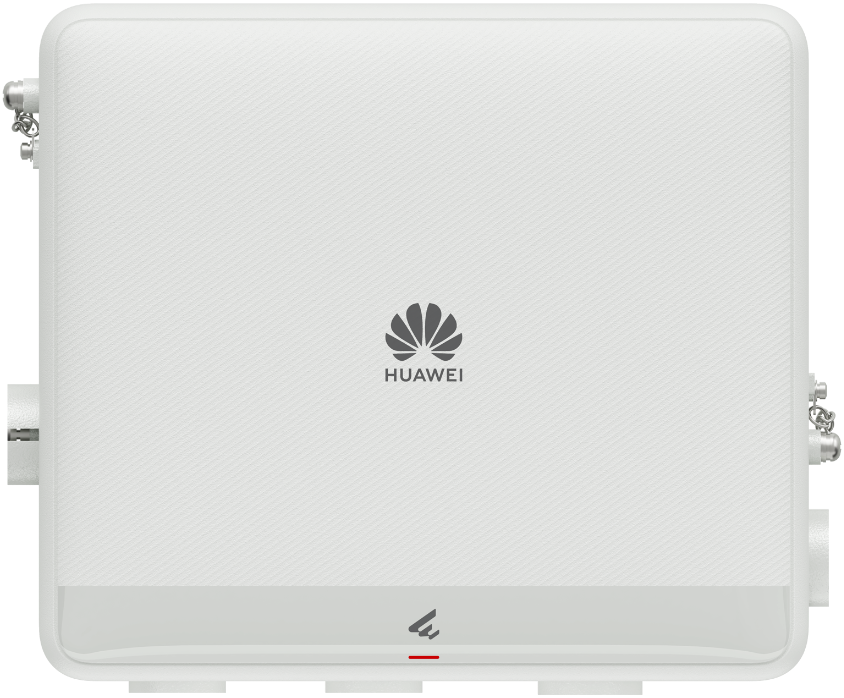

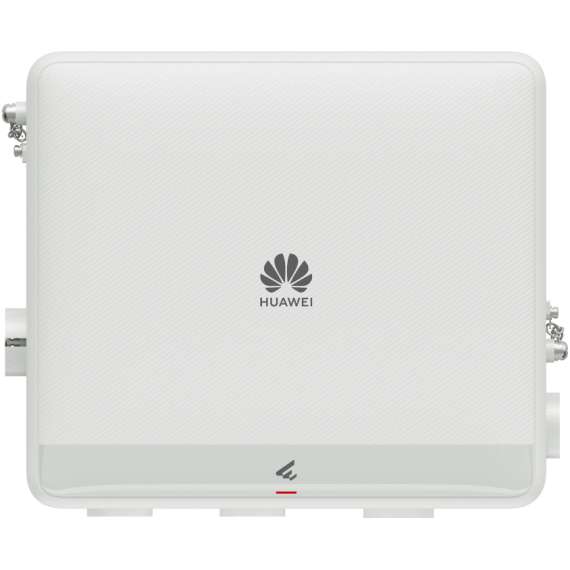

Huawei AP772 Outdoor Wi-Fi 7 Outdoor Access point

The Huawei eKitEngine AP772 is a high-performance Wi-Fi 7 (802.11be) outdoor access point designed for ultra-fast, stable, and reliable wireless connectivity in large open environments. Built for stadiums, parks, pedestrian zones, and event areas, it combines extreme durability with next-generation wireless technologies to deliver seamless connectivity even in highly congested networks.

Specifications

• Model: AP772
• Product Type: Outdoor wireless access point (Wi-Fi 7)
• Wireless Standard: IEEE 802.11be (Wi-Fi 7)
• Maximum Throughput: Up to 6.45 Gbps
• Frequency Bands: 2.4 GHz and 5 GHz dual-band operation
• MIMO: 2×2 MIMO (2.4 GHz), 4×4 MIMO (5 GHz)
• Modulation: 4096-QAM for ultra-high data efficiency
• Advanced Technologies: MU-MIMO, Multi-Link Operation (MLO), preamble puncturing
• Coverage Radius: Up to 180 meters (omnidirectional antenna design)
• Antenna Type: Built-in omnidirectional antennas
• Ports: 1 × 2.5GE Ethernet port (PoE support), 1 × 10GE SFP+ optical port
• Power Supply Modes: 802.3af, 802.3at, 802.3bt (performance varies by power mode)
• Power Behavior: 802.3af restricts 5 GHz radio and reduces power; 802.3at reduces transmit power by 3 dB; 802.3bt enables full functionality
• Protection Rating: IP68 waterproof and dustproof
• Surge Protection: 6 kA Ethernet port surge protection
• Operating Temperature: –40°C to +70°C
• Design: Industrial metal casing for enhanced heat dissipation and durability
• Working Modes: Fit mode, Fat mode, cloud management mode
• Management: HUAWEI eKit App, cloud-based deployment, local controller support
• Deployment: Quick setup via Wi-Fi or serial number scanning
• Security: WPA3, WPA2, 802.1X authentication, DTLS encryption, advanced access control
• Radio Optimization: Automatic radio calibration for optimal performance in dynamic environments
• Usage Scenarios: Stadiums, outdoor events, parks, festivals, pedestrian streets, large public venues
