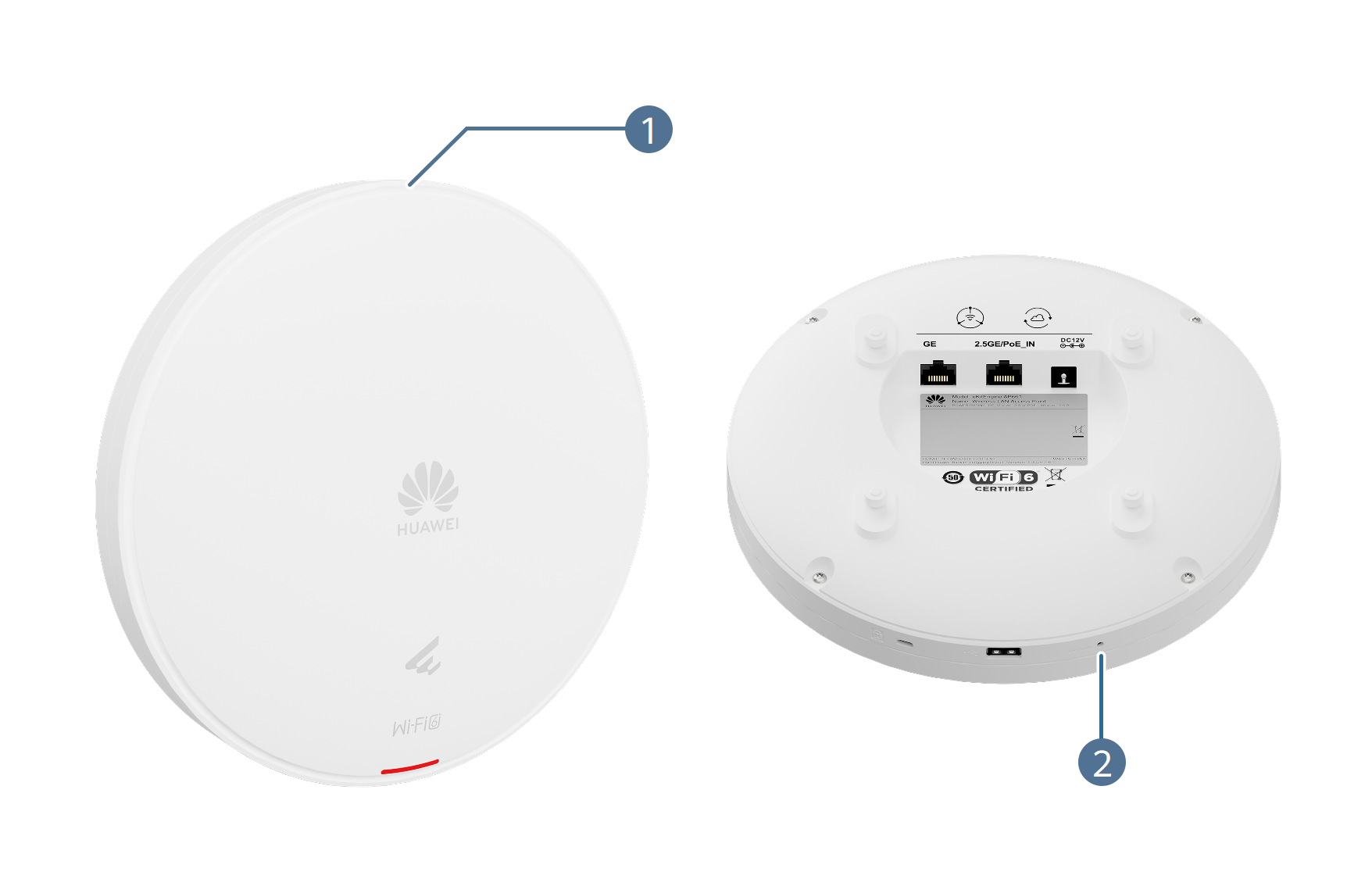

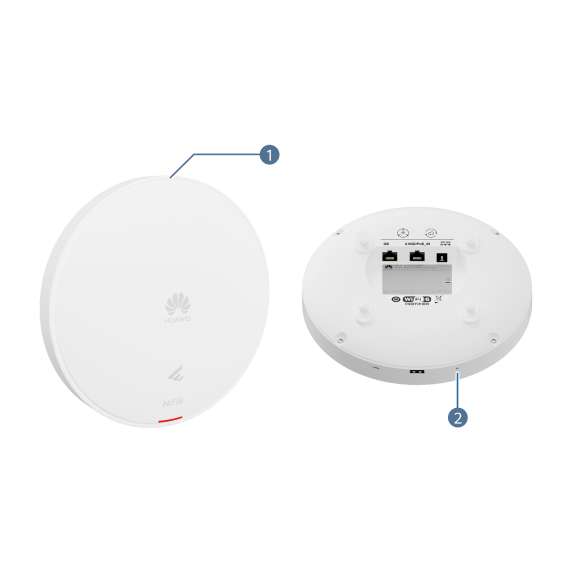

Huawei AP661 Access Point

The Huawei eKitEngine AP661 is a high-performance Wi-Fi 6 indoor access point designed for ultra-high-speed connectivity and dense user environments. With tri-band operation and advanced technologies such as MU-MIMO, OFDMA, and smart antennas, it delivers up to 6.575 Gbps throughput, making it ideal for stadiums, education, mobile offices, and large enterprise deployments.

Specifications

• Model: AP661
• Product Type: Indoor wireless access point (Wi-Fi 6)
• Wireless Standard: IEEE 802.11ax (Wi-Fi 6)
• Maximum Throughput: Up to 6.575 Gbps
• Frequency Bands: 2.4 GHz, 5 GHz (2 radios)
• MIMO Configuration: 2×2 MIMO (2.4 GHz), 2×2 MIMO (5 GHz), 4×4 MIMO (5 GHz high-capacity radio)
• MU-MIMO: Supported on 2.4 GHz and 5 GHz bands, enabling simultaneous multi-user transmission
• OFDMA Technology: Enables simultaneous multi-user data transmission using subcarriers, reducing latency and improving efficiency
• Modulation: 1024-QAM, delivering up to 25% higher efficiency than 802.11ac (256-QAM)
• Smart Antennas: Built-in intelligent antennas with adaptive coverage direction and signal optimization
• Spatial Reuse: BSS coloring technology reduces co-channel interference and improves spectrum efficiency
• Target Wake Time (TWT): Improves battery life of connected devices through scheduled sleep/wake cycles
• USB Port: Supports IoT expansion such as ZigBee and RFID
• Working Modes: Fit mode, Fat mode, cloud management mode
• Management Options: Centralized cloud management, local controller (WAC), or standalone configuration
• Device Capacity: Optimized for high-density environments (exact limit depends on deployment scenario)
• Installation Type: Indoor ceiling or wall mounting
• Security Features: WPA3, WPA2, 802.1X authentication and encryption support
• Usage Scenarios: Stadiums, universities, large offices, mobile workspaces, and high-density public environments
