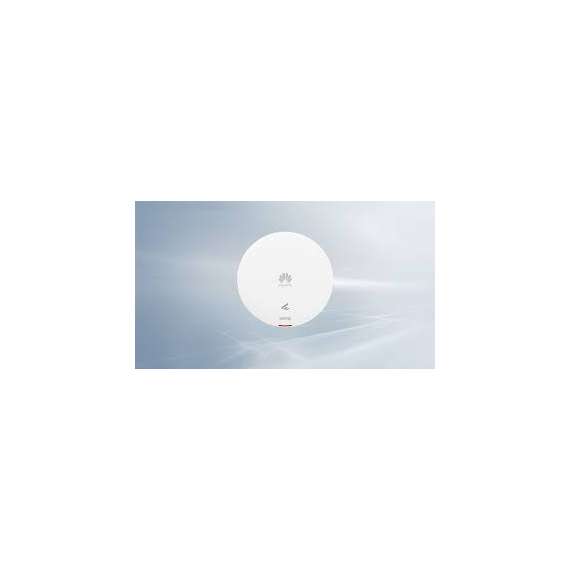

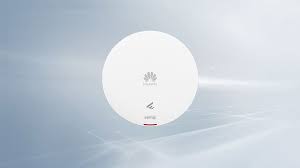

Huawei AP361 Access Point

Dimensions (diameter xlength)
Φ180 mm x 35 mm
Weight:0.45 kg
Port type: 1 x 10M/100M/1GE electrical port
LED indicator Indicates the: power-on, startup, running, alarm, and fault states of the system.
Power input PoE power supply: in compliance with IEEE 802.3af
Maximum power consumption:
 8.8 W
Operating temperature: –10°C to +50°C (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C every time the altitude increases by 300 m.)
Storage temperature: –40°C to +70°C
Operating humidity: 5% to 95% (non-condensing)
Altitude :–60 m to +5000 m
Atmospheric pressure :53 kPa to 106 kPa
Antenna type Built-in smart antennas
Antenna gain 2.4 GHz: 4 dBi
5 GHz: 5 dBi
dBi for 2.4 GHz and 3 dBi for 5 GHz.
Maximum quantity of SSIDs on each radio:≤ 6
Device capacity: ≤ 128
Maximum transmit power 2.4 GHz: 20 dBm (combined power)
5 GHz: 20 dBm (combined power)
Power adjustment increment:
1 dBm
Maximum number of nonoverlapping channels
2.4 GHz (2.412 GHz to 2.472 GHz)
 802.11b/g
− 20 MHz: 3
 802.11n
− 20 MHz: 3
− 40 MHz: 1
 802.11ax
− 20 MHz: 3
− 40 MHz: 1
5 GHz (5.18 GHz to 5.825 GHz)
Item Description
 802.11a
− 20 MHz: 13
 802.11n
− 20 MHz: 13
− 40 MHz: 6
 802.11ac
− 20 MHz: 13
− 40 MHz: 6
− 80 MHz: 3
 802.11ax
− 20 MHz: 13
− 40 MHz: 6
− 80 MHz: 3
