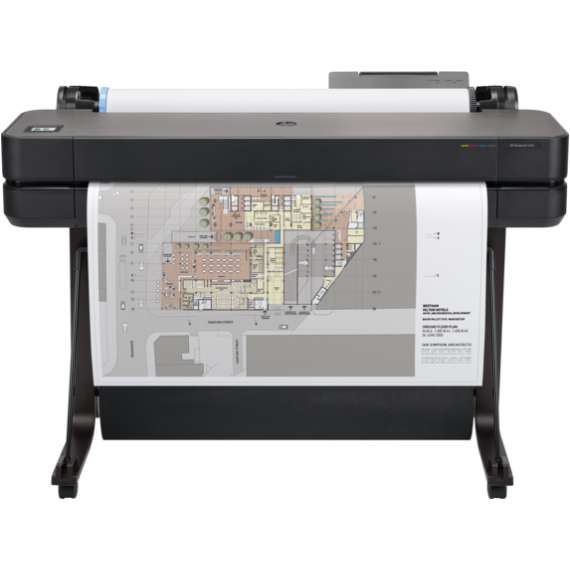

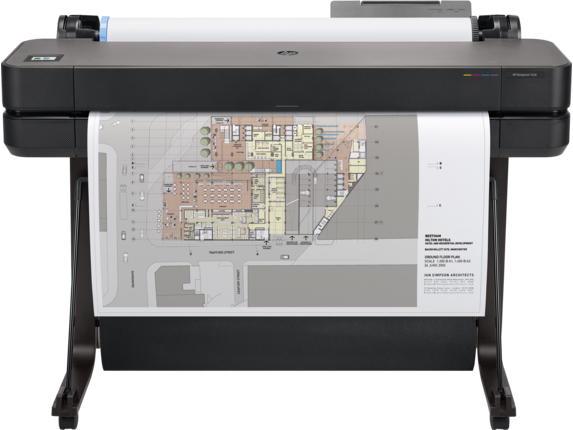

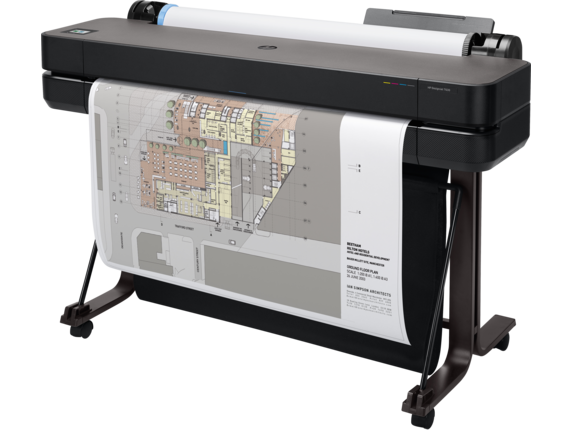

HP DesignJet T630 Large Format Wireless Printer

The HP DesignJet T630 is a compact, high-performance large-format printer designed for professionals who need precise, fast, and reliable printing of technical drawings, maps, and posters. Ideal for AEC, GIS, and CAD workflows, it delivers sharp line accuracy and vibrant output while fitting easily into small office spaces.

Specifications

• Product type: Large format plotter printer
• Print technology: HP Thermal Inkjet
• Ink system: 4 cartridges (Cyan, Magenta, Yellow, Black)
• Print resolution: Up to 2400 x 1200 optimized dpi
• Print speed: A1/D size print in as fast as 30 seconds
• Memory: 1 GB
• Print languages: HP-GL/2, HP-RTL, CALS G4, JPEG, URF
• Connectivity: Gigabit Ethernet, USB 2.0 Hi-Speed, Wi-Fi (802.11a/b/g/n), Wi-Fi Direct
• Mobile printing: HP Smart App support, remote printing and management
• Media handling: Roll feed, sheet feed, automatic sheet feeder, media bin, automatic cutter
• Media sizes supported: A4, A3, A2, A1, A0, custom sizes up to large-format rolls (up to 36 inches)
• Media types: Bond paper, coated paper, heavyweight coated paper, tracing paper, film, photographic paper, self-adhesive media
• Roll diameter: Up to 3.9 inches
• Media thickness: Up to 11.8 mil
• Line accuracy: ±0.1%
• Duty usage: AEC, GIS, MCAD technical drawings, posters, renderings, maps
• Power consumption: <35W printing, <5.6W ready, <2.1W sleep, <0.2W standby
• Power input: 100–240V auto-ranging, 50/60Hz
• Operating temperature: 41°F to 104°F (5°C to 40°C)
• Dimensions: 51.9 x 23.8 x 36.7 in
• Weight: 76.5 lb
• Software included: HP Click, HP Smart App, HP Print Preview, HP DesignJet Utility
• Security: Dynamic security enabled, HP cartridge authentication system
• Sustainability: Uses up to 30% recycled plastic, ENERGY STAR certified, EPEAT registered, HP Planet Partners recycling support
• Warranty: 1-year limited hardware warranty
