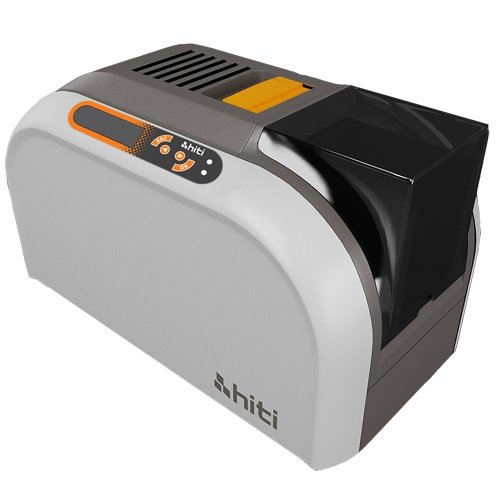

HiTi CS-220E Card Printer

The HiTi CS-220E is a high-efficiency dye-sublimation card printer designed for fast, high-quality ID card production in corporate, education, and access control environments. It offers compact design, flexible upgrade options, and efficient batch printing with strong support for card encoding modules and ID card management software.

Specifications
  • Brand: HiTi
  • Model: CS-220E
  • Product type: Plastic card printer
  • Print technology: Dye-sublimation
  • Print resolution: 300 dpi continuous tone
  • Print size: CR-80 (53.98 x 85.6 mm)
  • Print speed: 21 sec per full-colour YMCKO, 4.5 sec resin black
  • Interface: USB 2.0
  • Display: Multi-language LCM display
  • Operating systems: Windows 7 or later, macOS 10.6 or later
  • Memory: 64 MB + 8 MB flash
  • Input hopper capacity: 100 cards (0.76 mm)
  • Output hopper capacity: 50 cards (0.76 mm)
  • Card thickness support: 0.25 – 1.0 mm
  • Card types supported: PVC and polyester cards with PVC finish
  • Print method: PC-linked printing
  • Power supply: DC 24.5V / 4.08A
  • Weight: Approx. 4.9 kg (without ribbon/module)
  • Dimensions: 199 x 207 x 354 mm
  • Ribbon options: YMCKO, YMCKOK, resin black, half-panel colour ribbons
  • Encoding options: Contact smart IC, contactless RFID, magnetic stripe
  • Optional modules: Flipper module, Ethernet module, high-capacity input hopper (400 cards)
  • Software: CardDésiréé CS card design and management software
  • Application: ID cards, access control cards, membership cards, employee badges
  • Performance: Fast, scalable, and reliable card printing solution
  • Warranty: Standard manufacturer warranty
