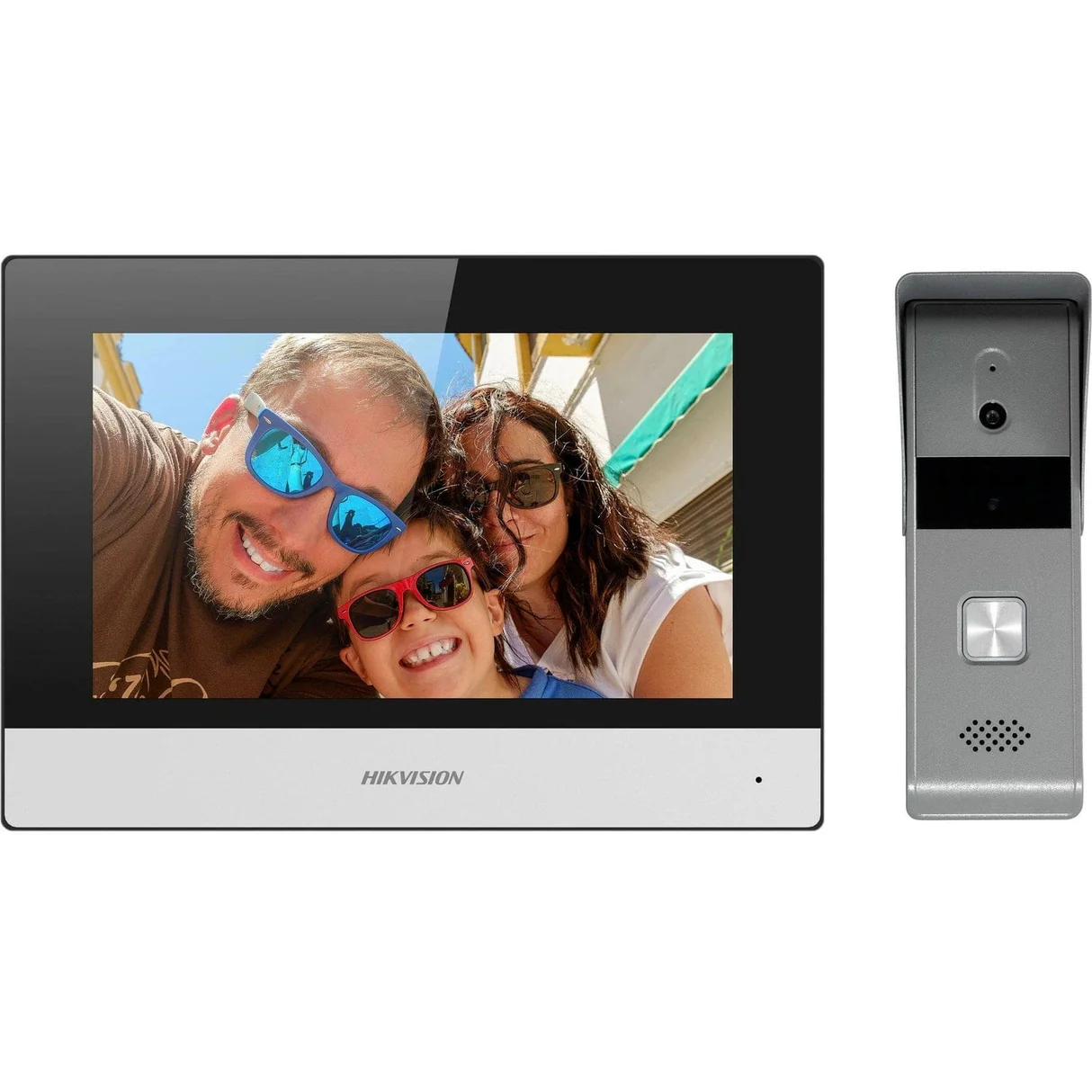

Hikvision- Hybrid video intercom kit
DS-KIS303-P(O-STD)
Please sign in so that we can notify you about a reply
Specification |
|
| Door station | |
| Resolution | 1920 x 1080 |
| FOV | Horizontal: 66.2°，Vertical: 37.2° |
| Door station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
Door station |
|
| I/O output | 1 relay output |
| Four-wire | 1 for 4-wire interface |
| Door station | |
| Power supply | 12 VDC |
| Power consumption | Max. 5 W |
| Working temperature | -10° C to 55° C (14° F to 131° F) |
| Working humidity | 10% to 90% |
| Dimensions | 135.14 mm × 49.6 mm × 41.93 mm (5.32″ × 1.95″ × 1.65″) |
Indoor station |
|
| Operation system | Embedded Linux operation system |
| RAM | 128 MB |
| ROM | 32 MB |
| Indoor station | |
| Size | 7-inch colorful TFT screen |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT screen |
| Resolution | 1024 × 600 |
Indoor station |
|
| Resolution | / |
| Lens | / |
| WDR | / |
| FOV | / |
| Indoor station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression Rate | 64 Kps |
| Audio compression standard | G.711 U G.711 A |
| Volume adjustment | Adjustable |
| Audio quality | Noise suppression and echo cancellation |
Indoor station |
|
| Linked IPC capacity | 16 |
| Notice capacity | 200 |
| Linked indoor extensionscapacity | 5 |
| Linked doorphone capacity | 2 analog doorphones, 15 IP doorphones Max. |
| Indoor station | |
| Wi-Fi | Wi-Fi 802.11 b/g/n |
| 3G/4G | / |
| Bluetooth | / |
| Protocol | TCP/IP, SIP, RTSP |
Indoor station |
|
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 2-ch alarm inputs |
| Alarm output | 2 |
| Power input | 1, 12 VDC |
| TAMPER | / |
| TF card | Max to 128 G, SD 2.0 or lower version |
| USB interface | / |
| Four-wire interface | 2 |
Indoor station |
|
| Button | 0 |
| Power supply | IEEE802.3af, Standard PoE,12V DC |
| Power consumption | ≤ 6 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × H × D) | 200 mm × 140 mm × 23.6 mm (7.9″ × 5.5″ × 0.9″) |
| Installation | Surface mounting |
| Application environment | Indoor |
| Protective level | / |
| Weight | With package: 365 gWithout package: 355 g |
