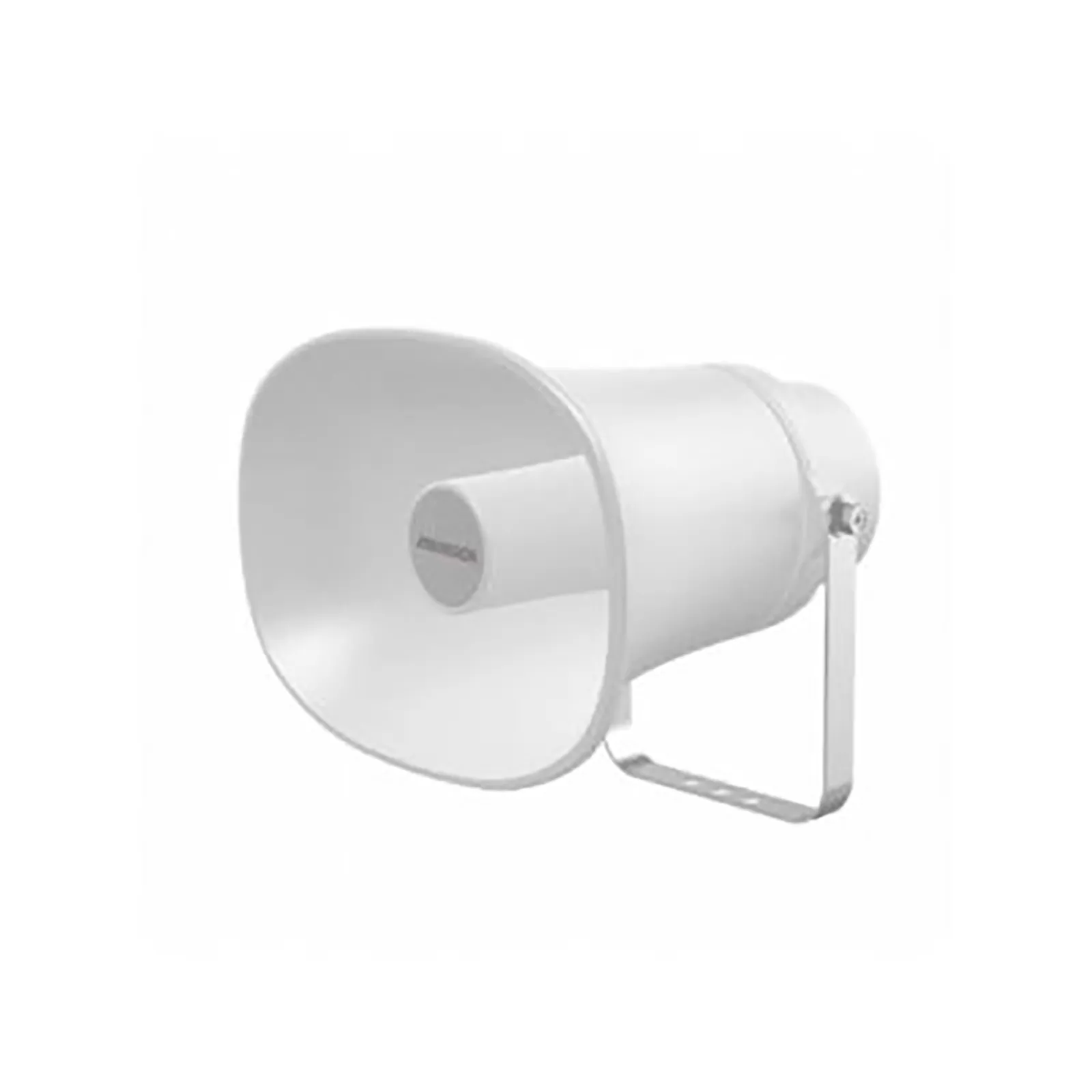

Hikvision DS-PA0103-A IP Horn speaker

The Hikvision DS-PA0103-A is an IP network horn speaker with a built-in 15W Class-D amplifier, PoE power, SD card playback and two-way audio, suitable for network-based announcements, alerts and remote communication.

Specifications
  • Brand: Hikvision
  • Model: DS-PA0103-A
  • Product Type: IP Horn Speaker
  • Network Interface: 10/100Base-TX self-adaptive Ethernet, RJ45
  • Network Protocols: TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
  • Audio Protocols: MP3, G.711a/u, G.722
  • Amplifier: Built-in 15W Class-D amplifier
  • Maximum Sound Pressure Level: 120dB
  • Frequency Response: 300Hz–12.5kHz
  • Coverage Pattern: 70° horizontal × 100° vertical
  • Storage: Micro SD card, up to 32GB
  • Audio Functions: Network broadcast, SD card playback, two-way talk, real-time sound collection
  • Microphone Input: 0.2Vrms
  • Speaker Output: 8Vrms
  • Power Supply: PoE, IEEE 802.3af
  • Power Consumption: <1W without sound; maximum 13W when producing sound
  • Protection Level: IP67
  • Operating Temperature: -40°C to 60°C
  • Material: Aluminium alloy casing, stainless-steel rear cover
  • Colour: White
  • Dimensions: 242 × 182 × 250mm without bracket; 242 × 182 × 338.5mm with bracket
  • Weight: Approx. 1.5kg
  • Applications / Use Case: Network announcements, security alerts, public-address systems and remote audio communication
  • Warranty: Standard manufacturer warranty
