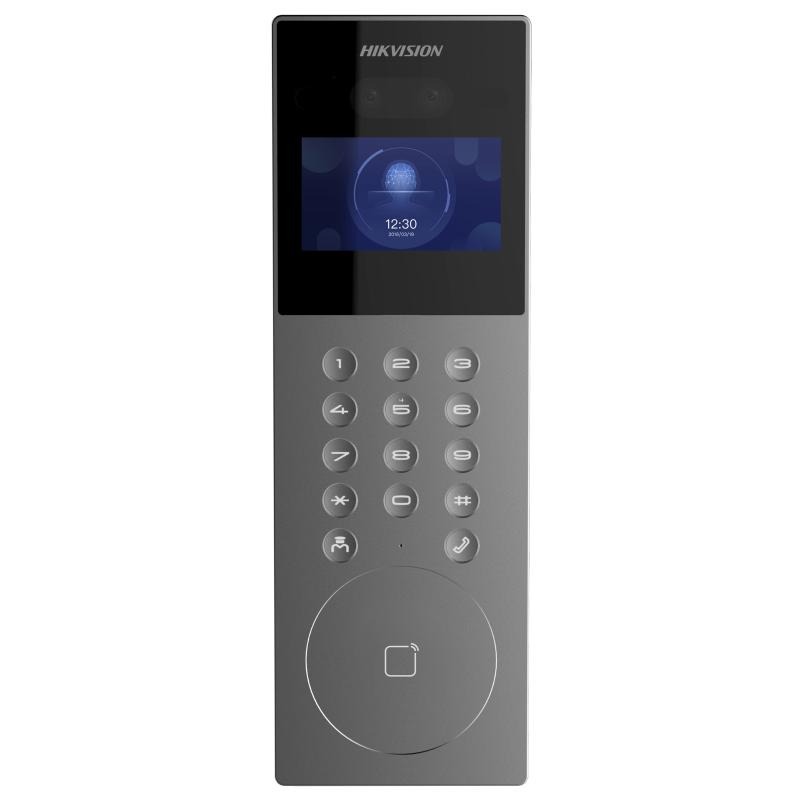

Hikvision DS-KD9203-E6 Facial Recognition Door Station

The Hikvision DS-KD9203-E6 is an advanced IP facial recognition door station designed for secure access control and video intercom applications. Featuring dual 2MP cameras, a 4.3-inch touchscreen, anti-spoofing technology, and multiple authentication methods, it provides reliable and intelligent entrance management.

Specifications
  • Brand: Hikvision
  • Model: DS-KD9203-E6
  • Product Type: Facial Recognition Door Station
  • Display: 4.3-Inch Colour LCD Touch Display (800 × 480 Resolution)
  • Camera: Dual 2MP Wide-Angle HD Cameras
  • Viewing Angle: 120° Wide-Angle Lens
  • Authentication Methods: Face Recognition, M1 Card, PIN Code
  • Face Capacity: Up to 5,000 Faces
  • Card Capacity: Up to 25,000 Cards
  • Anti-Spoofing: Supported
  • Audio: Built-in Microphone and Speaker with Two-Way Audio, Noise Suppression, Echo Cancellation
  • Video Compression: H.264
  • Network Interface: 1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet
  • Network Protocols: TCP/IP, RTSP
  • Access Control Interfaces: Relay Output, Door Contact Input, RS-485, Wiegand, Alarm Input
  • Night Vision: IR Supplement Light
  • Wide Dynamic Range: True WDR
  • Power Supply: 12V DC
  • Power Consumption: ≤13 W
  • Protection Rating: IP65 Weatherproof
  • Installation: Flush Mount
  • Operating Temperature: -30°C to +60°C
  • Configuration: Remote Web-Based Configuration
  • Application / Use Case: Residential apartments, office buildings, commercial facilities, gated communities, industrial premises, and secure access control systems
  • Warranty: Standard manufacturer warranty
