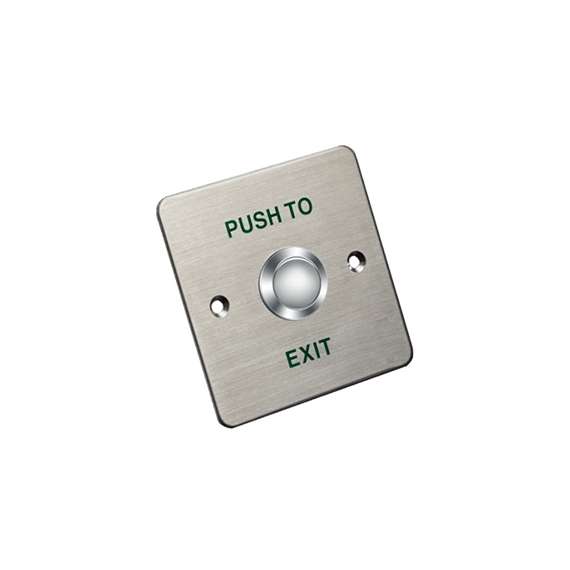

Hikvision DS-K7P01 Exit Button
The Hikvision DS-K7P01 is a durable exit button designed for access control systems. It features an aluminium alloy panel, metal button and NO/NC/COM contacts, with a tested service life of over 500,000 operations.
Specifications
• Brand: Hikvision
• Model: DS-K7P01
• Product Type: Exit Button
• Suitable Doors: Hollow doorframes and embedded electrical boxes
• Output Contact: NO/NC/COM
• Current Rating: 3A @ 36V DC maximum
• Construction: Aluminium alloy panel | Metal button | Sandblasted aluminium finish
• Aging Test: Passed 500,000-operation aging test
• Working Temperature: -10°C to 55°C
• Working Humidity: 0–95% RH
• Dimensions: 86 × 86 × 28.9mm (L × W × H)
• Weight: 0.25kg
• Applications / Use Case: Suitable for exit-door control in access control and security systems
• Warranty: Standard manufacturer warranty
