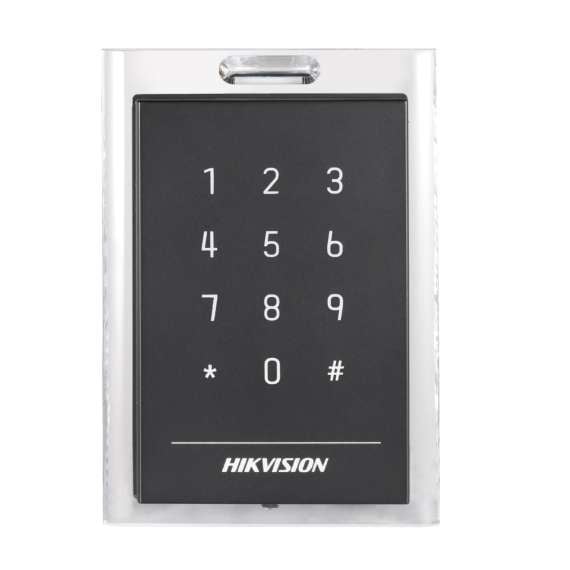

Hikvision DS-K1101MK Mifare Card Reader Keypad Access Control
![Buy Hikvision DS-K1101MK Mifare Card Reader Keypad Access Control in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/90/DS-K1101MK1.JPG.thumb.1280.1280.png.jpg "Buy Hikvision DS-K1101MK Mifare Card Reader Keypad Access Control in [storefront]"){kind=small}
![Buy Hikvision DS-K1101MK Mifare Card Reader Keypad Access Control in [storefront]](images/detailed/90/DS-K1101MK1.JPG.thumb.1280.1280.png "Buy Hikvision DS-K1101MK Mifare Card Reader Keypad Access Control in [storefront]")
Please sign in so that we can notify you about a reply
Hikvision DS-K1101MK Mifare Card Reader with Keypad
- PC+ABS material shell with PMMA panel design
- Equipped with the 32-bit high-speed processor
- Built-in audible beeper
- Display the reader status with LED indicator
- DIP switch
- RS485 and Wiegand(W26/W34) protocol
- Tamper-proof alarm
- Online upgrade function(under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
- Dust-proof and water-proof design
- Read Mifare card and obtain the card No.
| Power Supply | 12V DC |
| Working Current | ≤500mA |
| Processor | 32-bit |
| Reading Frequency | 13.56MHz |
| Reading Range | ≤50mm (≤1.97") |
| ID Settings | via DIP Switch |
| Audio Alert | Beeper |
| Power Consumption | ≤2W |
| Keypad | Keypad with 12 Keys (0 to 9, *, #) |
| Certifications | FCC, CE |
| LED Indicator | Power Indicator; Status LED Indicator |
| Working Temperature | -20°C to +65°C (-4°F to +149°F) |
| Working Humidity | 10% to 90% (Non Condensing) |
| Protection Level | IP 64 |
| Dimensions | 132.0mm × 92.3mm × 20.5mm (5.20” × 3.63” × 0.81") |
| Weight | ≤0.14Kg |
| Installing Method | Applied for 120 Gang Box Only |
