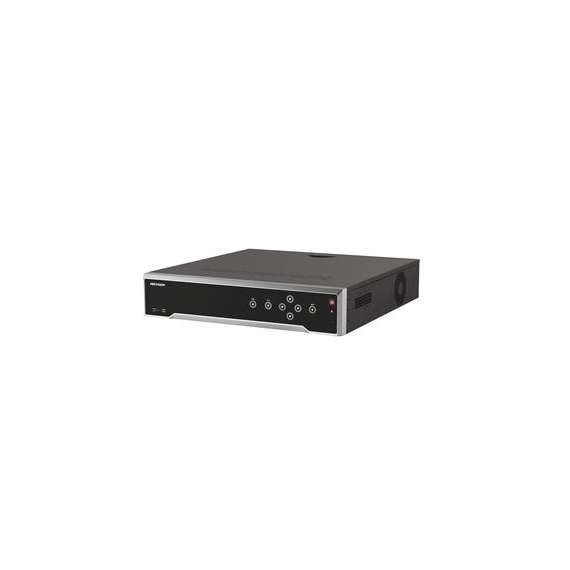

Hikvision DS-7732NI-K4/16P 32 Channel NVR

• Third-party network cameras supported

• Up to 8 Megapixels resolution recording

• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution

• 32-ch network cameras can be connected with

• 256M incoming bandwidth

• Up to 4 SATA interfaces

• Plug & Play with up to 16 independent PoE network interfaces

• Support dual-os to ensure high reliablility of system running

• Support various VCA detection alarm and VCA search

• Support H.265/H.264/MPEG4 video formats

Technical Specifications

Video/Audio Input

Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)

IP video input: 32-ch

Network

Incoming bandwidth: 256Mbps

Outgoing bandwidth: 160Mbps

Video/Audio Output

HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Audio Output: 1-ch, RCA (Linear, 1kΩ)

Synchronous Playback: 16-ch

VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding

Capability: 8-ch@1080P

Live view / Playback: 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk

SATA: 4 SATA interfaces for 4HDDs

Capacity: Up to 6TB capacity for each HDD

External Interface

Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface

Serial Interface: RS-232; RS-485;

USB Interface: Front panel: 2 × USB 2.0 , Rear panel: 1 × USB 3.0

Alarm In: 16-ch

Alarm Out: 4-ch

POE

Supported Standard: AF and AT

Interface: 16 independent 100 Mbps PoE network interfaces

Max. Power:  200W

General

Power Supply: 100 to 240 VAC

Consumption(without hard disk and POE): ≤20 W

Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF)

Working Humidity: 10 % ~ 90 %

Chassis: 19-inch rack-mounted 1.5U chassis

Weight(without HDD): ≤ 5 kg (11 lb)
