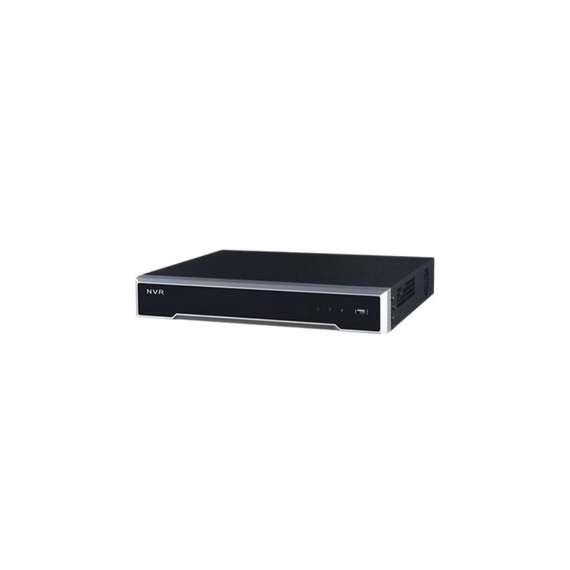

Hikvision DS-7632NI-K2/16P 32Ch 2-HDD Slot NVR

• Up to 32 channel IP cameras can be connected
• Supports decoding H.265+/H.265/H.264+/H.264 video formats
• Up to 4K high-definition live view, storage and playback
• Up to 8-ch @ 1080p decoding capacity
• Up to 256 Mbps high incoming bandwidth ensures IP cameras can be connected
• 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
• 2 HDDs for continuous video recording
• Plug & Play with 16 Power-over-Ethernet (PoE) interfaces

Video And Audio

• IP Video Input     32-ch
• HDMI Output     4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output       HDMI,VGA
• Incoming Bandwidth      160 Mbps, 256 Mbps
• Audio Output          1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio      1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

• Decoding Format             H.265+,H.265,H.264+,H.264
• Decoding Capability         8-ch@1080p
• Synchronous Playback     16-ch
• Recording Resolution       8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Network

• Network Protocol      TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface     1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface     16-ch
• Power          ≤ 200 W
• Standard     IEEE 802.3 af/at

RAID

• RAID Type   No

Auxiliary Interface

• SATA                   2
• Capacity             Up to 6 TB capacity for each HDD
• USB Interface    Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out     4/1

General

• Power Supply     100 to 240 VAC,≤ 280 W
• Consumption     ≤ 15 W (without enabling PoE)
• Working Temperature    -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity      10 to 90 >#/span###
• Dimension (W × D × H)     385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″)≤ 3 kg (6.6 lb)
