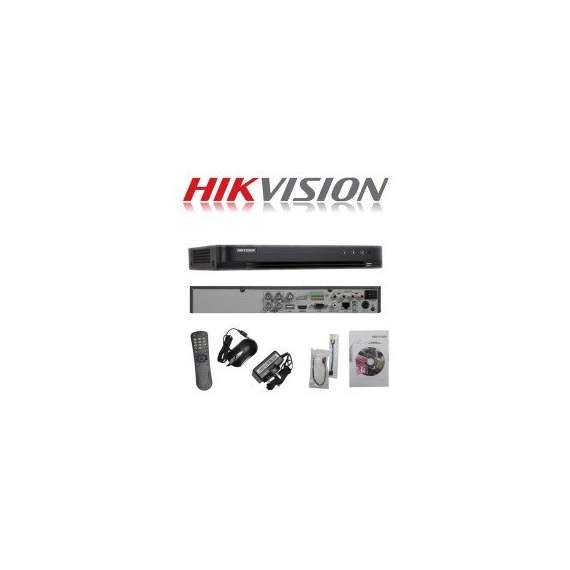

Hikvision DS-7204HQHI-K1 DVR VIDEO RECORDER

Enhance your CCTV system with reliable 4-channel recording, multi-format camera support and efficient H.265+ compression. Supports additional IP cameras, remote access and up to 10TB HDD storage for flexible surveillance.

Specifications
  • Channels: 4-channel analogue video input via BNC, with support for up to 6 IP cameras
  • Camera Support: HDTVI up to 4MP, AHD up to 4MP, HDCVI up to 4MP, CVBS PAL/NTSC, and IP cameras up to 6MP
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Recording Resolution: 4MP Lite, 3MP, 1080p, 1080p Lite, 720p, WD1, 4CIF, VGA and CIF; 4MP Lite/3MP up to 15fps
  • Video Output: HDMI/VGA up to 1920 × 1080 @ 60Hz, plus 1-channel CVBS output
  • Audio: 1-channel RCA audio input/output, G.711u compression, two-way audio, 64Kbps audio bit rate
  • Storage: 1 × SATA interface, supports up to 10TB HDD
  • Playback: 4-channel synchronous playback, smart search and dual-stream support
  • Network: 1 × RJ45 10/100M Ethernet; TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS and ONVIF
  • Interfaces: 2 × USB 2.0, RS-485 half-duplex
  • Transmission: HDTVI transmission up to 800m at 1080p and 1,200m at 720p over UTP/coaxial cable
  • Smart Functions: VCA events, line crossing and intrusion detection, video quality diagnostics (VQD), Hik-Connect and third-party cloud storage support
  • Power Consumption: ≤6W without HDD
  • Operating Conditions: -10°C to +55°C, 10%–90% humidity
  • Dimensions: 315 × 242 × 45mm
  • Weight: ≤1.16kg without HDD
  • Warranty: Standard manufacturer warranty
