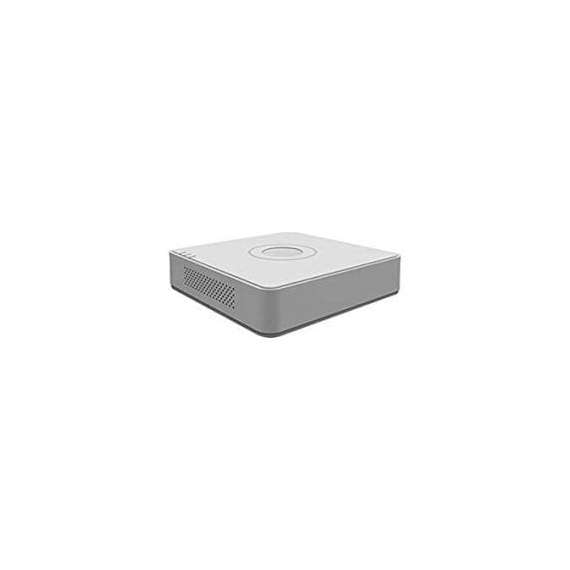

HIKVISION DS-7116HQHI-K1(16ch plastic 1080p)
- Recording
- Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution
  When 1080p Lite mode is not enabled:

  4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame rate
  Main stream:

  When 1080p Lite mode not enabled:

  For 4 MP stream access:

  4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

  For 1080p stream access:

  1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video bit rate32 Kbps to 6 Mbps
- Dual streamSupport
- Stream typeVideo, Video & Audio
- Audio compressionG.711u
- Audio bit rate64 Kbps
- Video and Audio
- IP video input8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog video input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI input1080p25, 1080p30, 720p25, 720p30
- CVBS inputSupport
- Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio output1-ch, RCA (Linear, 1 KΩ)
- Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous playback16-ch
- HDTVI input
  4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

  *: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
- VGA/HDMI output
  HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

  VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Network
- Remote connections128
- Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network interface
  1,

  RJ45 10M/100M/1000M

  self-adaptive

  Ethernet interface
- Auxiliary interface
- SATA1 SATA interface
- CapacityUp to 6 TB capacity for each disk
- Alarm in/outN/A
- USB interfaceReal panel: 2 × USB 2.0
- General
- Power supply12 VDC
- Consumption (without HDD)≤ 15 W
- Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working humidity10% to 90%
- Dimensions (W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
- Weights (without HDD)≤ 1 kg (2.2 lb)
