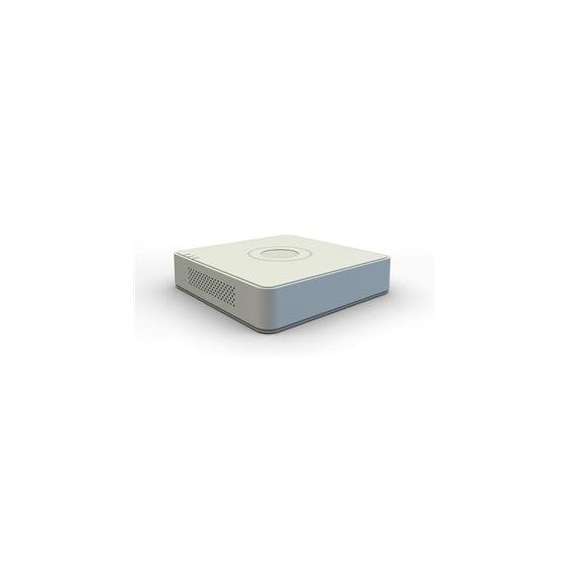

Hikvision DS-7116HGHI-M1 (720P,Turbo HD 3.0)DVR
![Buy Hikvision DS-7116HGHI-M1 (720P,Turbo HD 3.0)DVR in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/43/9c0c1b6f4430f4fa9f2f57b0e870674a.jpg.jpg "Buy Hikvision DS-7116HGHI-M1 (720P,Turbo HD 3.0)DVR in [storefront]"){kind=small}
![Buy Hikvision DS-7116HGHI-M1 (720P,Turbo HD 3.0)DVR in [storefront]](images/detailed/43/9c0c1b6f4430f4fa9f2f57b0e870674a.jpg "Buy Hikvision DS-7116HGHI-M1 (720P,Turbo HD 3.0)DVR in [storefront]")
DS-7116HGHI-M1
Please sign in so that we can notify you about a reply
Overview
H.264 ,H.264+& Dual-stream video compression
• Support HD-TVI, AHD and analog cameras with
adaptive access
• Up to 3 MP resolution for recording of the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N
•Support 1080P lite mode enabled to realize the real-time
1080P lite and 720P lite resolution
• Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution for DS-7104/7108HQHI-F1/N and 4K (3840 × 2160) resolution for HDMI output of DS-7116HQHI-F1/N
• Long transmission distance over coax cable
• Up to 4/8-ch synchronous playback at 1080p resolution
• Playback at up to 256X speed.
Technical Specifications
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA Output: | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
|
| Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF |
|
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS,ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 6 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interfaces | |
| General | ||
|---|---|---|
| Power Supply: | 12V DC | |
| Consumption: | ≤ 20W(without hard disks) | |
| Working Temperature: | -10 oC ~+55 oC (14 oF ~ 131 oF) | |
| Working Humidity: | 10% ~ 90% | |
| Chassis: | Mini 1U chassis | |
| Dimensions: | 285 × 210 × 45 mm (11.2× 8.3 × 1.8 inch) |
|
| Weight: | ≤1.2 kg(2.6lb) | |
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.264,H.264+ | |
| Analog and HD-TVI video input: | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: The 3 MP signal input is only available for the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N. Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz support CVBS input |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) | |
