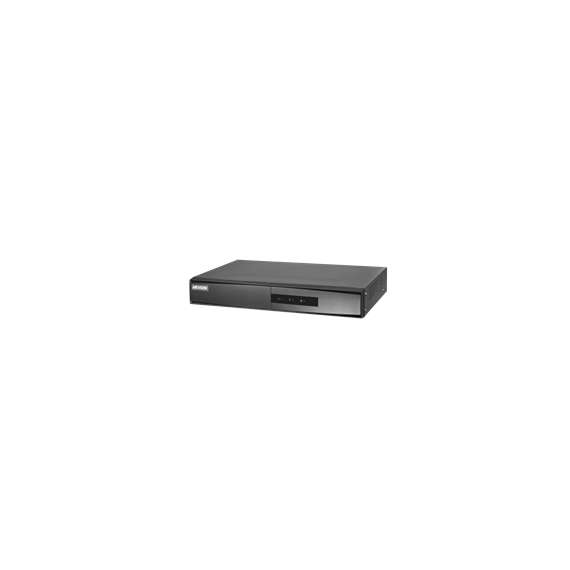

Hikvision DS-7108NI-QI/8P/M 8 Channel 1 Hdd Slot NVR

Overview

• Connectable to the third-party network cameras

• Up to 8 network cameras can be connected

• H.265+/H.265 compression effectively reduces the storage space and costs

• Full channel recording at up to 4 MP resolution

• HDMI/VGA output at 1080p resolution

• 1-ch playback at 4 MP resolution or 2-ch at 1080p resolution

• 1 SATA hard disk can be connected with 6TB capacity

• Supports line crossing and intrusion detection

• Smart search for the selected area in the video; and smart playback to improve the playback efficiency

• One-key operation: automatically search, modify and add IP cameras after device is activated

• Hik-Connect for easy network management

• 100 Mbps Ethernet network interface

• 4/8 independent 100 Mbps built-in switch network interfaces

Technical Specifications

Video/Audio Input

IP video input: 8-ch

IP Video input: Up to 4 MP resolution

Network

Incoming bandwidth: 60 Mbps

Outgoing bandwidth: 60 Mbps

Video/Audio Output

HDMI/VGA output: 1-ch, resolution:1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz

VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding

Decoding format: H.265+/H.265/ H.264+/H.264

Live view / Playback: 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Hard Disk

Interface Type: 1 SATA interface

Capacity:Up to 6TB capacity for each HDD

External Interface

Network Interface: 1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface

USB Interface: 2, USB2.0

POE

Supported Standard: AF and AT

Interface:8 independent 10 /100 Mbps PoE Ethernet interfaces

Max. Power: 75W

General

Power: ≤ 90W

Consumption(without hard disk and POE): ≤ 10 W

Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF)

Working Humidity:10 % ~ 90 %

Chassis: 1U chassis
