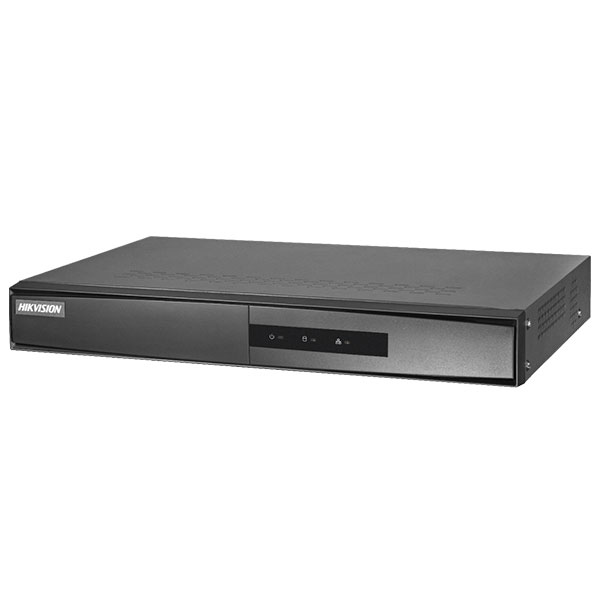

Hikvision DS-7104NI-Q1/4P/M 4 Channel POE NVR

Features

• Up to 4 channel IP cameras can be connected
• Supports decoding H.265+/H.265/H.264+/H.264 video formats
• Up to 4 MP high-definition live view, storage and playback
• Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected
• Up to 4-ch @ 1080p decoding capacity
• 1 HDD for continuous video recording
• Plug & Play with 4 Power-over-Ethernet (PoE) interfaces
• Metal case for professional industry applications

Technical Specifications

Video And Audio

IP Video Input: 4-ch
HDMI Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output: HDMI,VGA
Incoming Bandwidth: 40 Mbps 60 Mbps

Decoding

Decoding Format: H.265+,H.265,H.264+,H.264
Decoding Capability: 1-ch @ 6 MP / 4-ch @ 1080p
Synchronous Playback: 4-ch
Recording Resolution: 6MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: ≤ 36W
Standard: IEEE 802.3 af/at

RAID

RAID Type: No

Auxiliary Interface

SATA: 1
Capacity: Up to 6TB capacity for each disk
USB Interface: 2 × USB 2.0

General

Power Supply: ≤ 50W
Consumption: ≤ 10 W
Working Temperature: -10 to +55º C (+14 to +131º F)
Working Humidity: 10 to 90 %
Chassis: 1U chassis
Dimension (W × D × H): 260 × 225 × 48 mm (10.2″ × 8.9″ × 1.9″)
Weight: ≤ 1 kg (2.2 lb)
