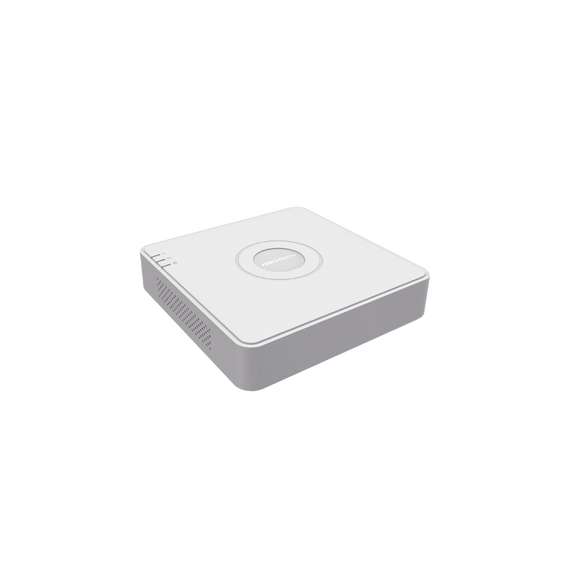

Hikvision DS-7104HGHI-K1 4-ch 1080p Lite DVR

Key Feature
 H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
 HDTVI/AHD/CVI/CVBS/IP video input
 Audio via coaxial cable
 Up to 6/12-ch IP camera inputs (up to 1080p/5 MP)
 Max. 1200 m for 720p HDTVI signal
Compression and Recording
 H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
 Full channel recording at up to 1080p resolution
Storage and Playback
 1 SATA interface (up to 4 TB capacity per HDD)
 Smart search for efficient playback
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 64/72 Mbps total bandwidth
DS-7100HGHI-K1 TURBO HD DVR
Specification
Model DS-7104HGHI-K1 DS-7108HGHI-K1
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA/CIF@25 fps
(P)/30 fps (N)
When 1080p Lite mode enabled:
1080p Lite/HD 720p
Lite/WD1/4CIF/VGA/CIF@25 fps
(P)/30 fps (N)
Main stream:
When 1080p Lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA/CIF@15 fps;
For SD stream access:
WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
1080p Lite/HD 720p
Lite/WD1/4CIF/VGA/CIF@15 fps
Sub-stream:
4CIF/CIF/QVGA@25 fps (P)/30 fps (N)
Sub-stream:
CIF/QVGA@25 fps (P)/30 fps (N)
Video bit rate 32 Kbps to 4 Mbps
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input
1-ch (up to 5-ch) 2-ch (up to 10-ch)
Up to 1080p resolution Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
4-ch 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Turbo HD input 1080p25, 1080p30, 720p25, 720p30
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
HDMI/VGA output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA simultaneous output
Audio input
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable 8-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio Reuse the first audio input
Synchronous playback 4-ch 8-ch
Network
Remote connection 32 64
Network protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI,
UPnP™, HTTPS
Network interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary interface
SATA 1 SATA interface
Capacity Up to 4 TB capacity for each disk
Alarm in/out N/A
USB interface Rear panel: 2 × USB 2.0
General
Power supply 12 VDC, 1.5 A
Consumption (without HDD) ≤ 16 W ≤ 17 W
Working temperature -10 °C to 55 °C (14 °F to +31 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight (without HDD) ≤ 0.8 kg (1.8 lb)
