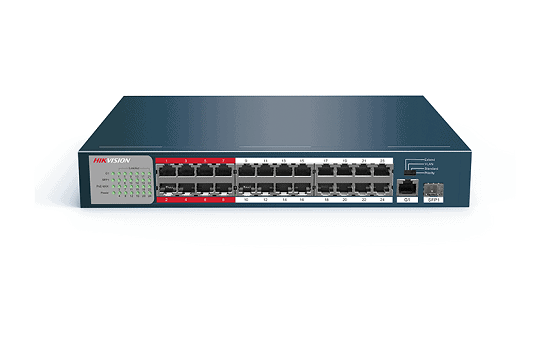

Hikvision DS-3E0326p-E/M 24 port Poe Unmanaged switch

• Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

Port Number
24 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode
Standard mode (default); Extend mode
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode
Store-and-forward switching
Ports For Long-Distance Transmission
Ports 17 to 24
MAC Address Table
4 K
Internal Cache
2.75 Mbits
Switching Capacity
8.8 Gbps
Packet Forwarding Rate
6.547 Mpps
High Priority Ports
Ports 1 to 8
PoE Power Supply
PoE Standard
IEEE 802.3af, IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)

Mid-span: 4/5(+), 7/8(-)

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port
Ports 1 to 24
Max. Port Power
30 W
PoE Power Budget
230 W
Dialing Function
Long Range
Ports 17 to 24: up to 300 m; and the speed rate of the port is 10 Mbps.
