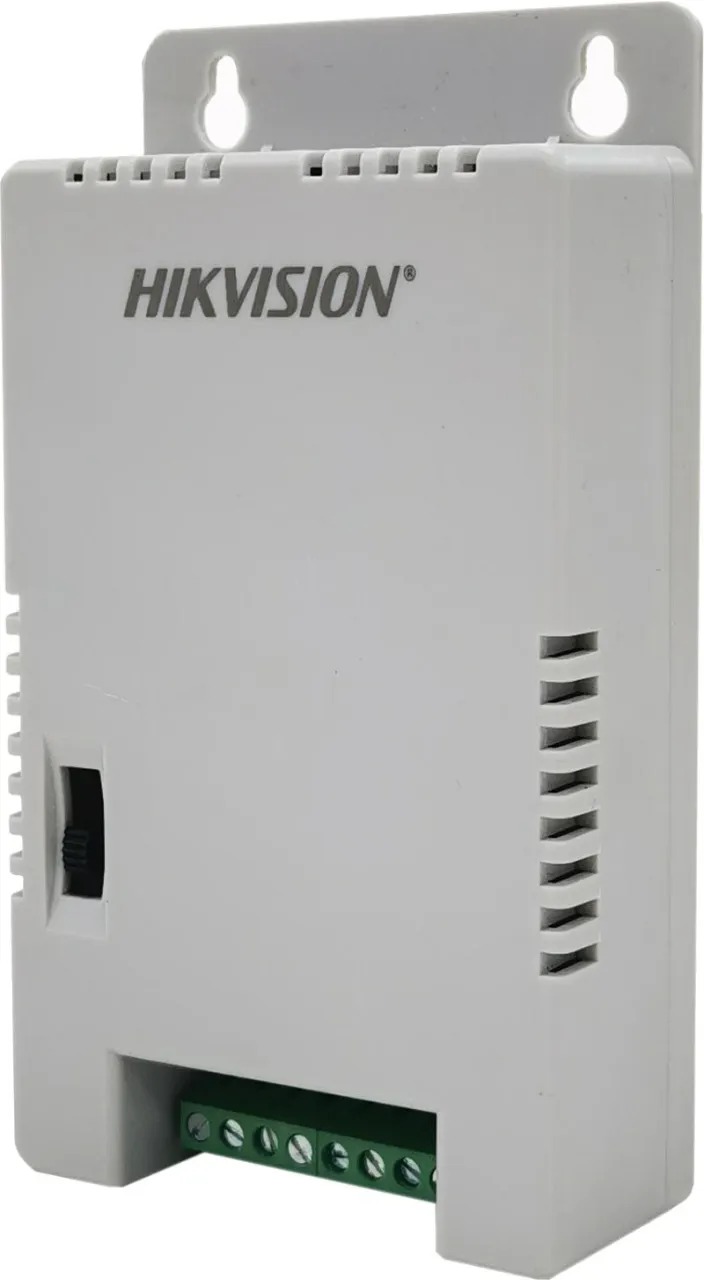

Hikvision DS-2FA1225-C4(UK) Switching Mode Power Supply
The Hikvision DS-2FA1225-C4(UK) is a 4-channel switching mode power supply designed to provide stable DC power for compatible CCTV and surveillance equipment.
Specifications
• Brand: Hikvision
• Model: DS-2FA1225-C4(UK)
• Product Type: Switching Mode Power Supply
• Output: 12V DC
• Channels: 4
• Input: 150–285V AC, 47–63Hz
• Output Current: 1A per channel
• Total Power: 48W
• Protection: Over-current, short-circuit and over-voltage protection
• Cable Length Compensation: 12V DC normal mode | 13.5V DC long-distance mode | 15V DC extra-long-distance mode
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10–95% RH, non-condensing
• Dimensions: 144 × 80 × 33mm
• Applications / Use Case: Suitable for powering compatible CCTV cameras and surveillance equipment
• Warranty: Standard manufacturer warranty
