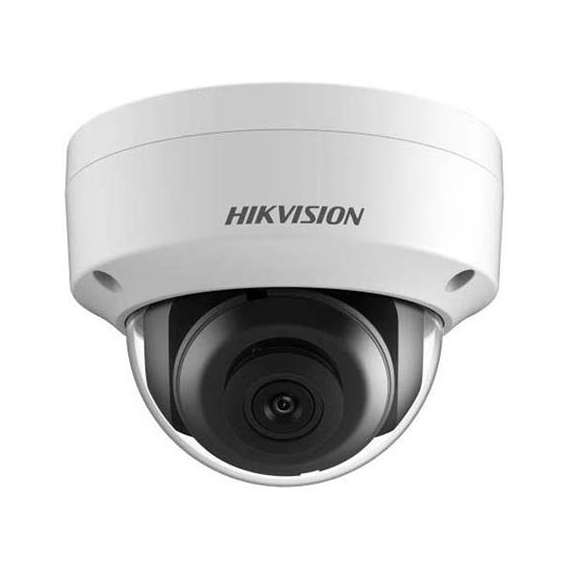

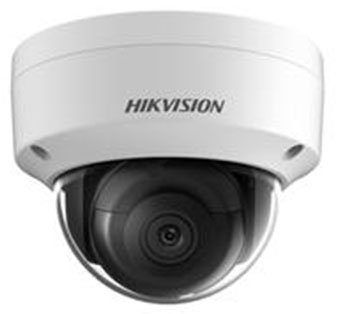

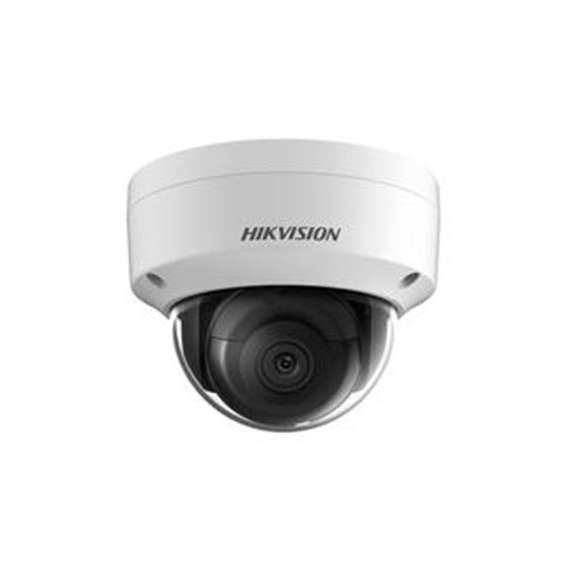

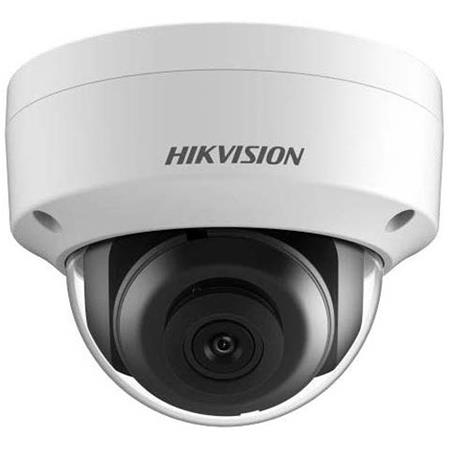

2MP Powered by DarkFighter Fixed Dome Network Camera

• High quality imaging with 2 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• S: audio and alarm interface available
• Water and dust resistant (IP67) and vandal proof (IK10)
• Robust structure design with full metal materials.
• Image Sensor: 1/2.8" Progressive Scan CMOS
• Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR;Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Day &NightIR Cut Filter
• Wide Dynamic Range:120dB
• Angle AdjustmentPan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
• DNR3D DNR
• Lens: 2.8/4/6/8/12 mm
• Aperture: F1.6
• Focus: Fixed
• FOV2.8 mm, horizontal field of view: 108°;4 mm, horizontal field of view: 86.4°;6 mm, horizontal field of view: 52°;8 mm, horizontal field of view: 41°;12 mm, horizontal field of view: 25°
• Lens Mount: M12
• Illuminator
• IR Range: 30 m

• Video
• Max. Resolution: 1920 × 1080
• Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream: 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288);60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
• Video Compression Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 16 Mbps

• Smart Feature-Set
• Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
• Region Of InterestSupport 1 fixed region for main stream and sub-stream separately

• Image
• Image EnhancementBLC/3D DNR/HLC
• Day/Night SwitchDay/Night/Auto/Schedule

• Network
• Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator and User
• Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login

• Interface
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G

• General
• Firmware Version: V5.5.80
• General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• ResetYes
• Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Consumption And Current: 12 VDC ± 25%, 5 W; PoE(802.3af, 36 V to 57V, class 3), 6.5 W
• Material: Camera body: metal, bubble: plastic
• Dimensions: Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″);Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
• WeightCamera: 500 g (1.1 lb.)

• Compression Standard
• H.264+Main stream supports
• H.265+Main stream supports

• Smart Feature-Set
• Face DetectionYes
• Exception DetectionScene change detection
