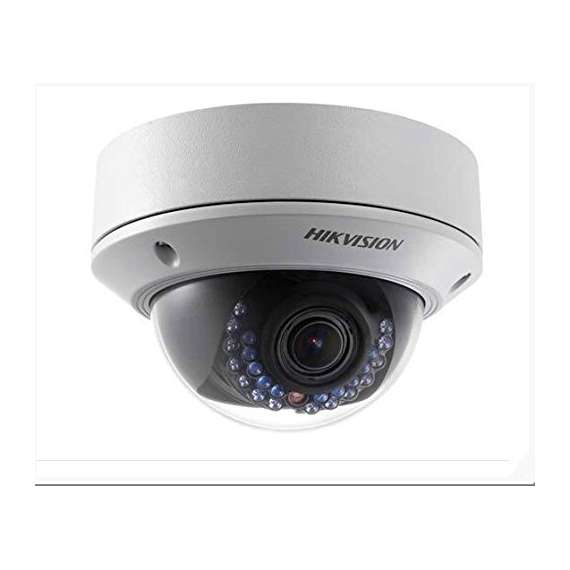

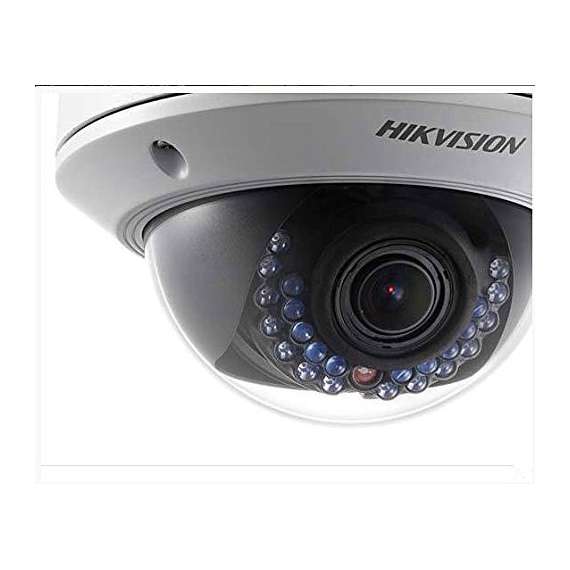

Hikvision DS-2CD2742FWD-IZS 4MP IR Network Dome Camera

Overview

•4 Megapixel High Resolution

 •Full HD1080p Video

 •Dual Video Streams

 •2.8 mm to 12 mm Motorized Lens

•120 dB Wide Dynamic Range

 •3D Digital Noise Reduction

•Smart Features

•PoE (802.3af)

 •IR Range 30 Meters (~100 feet)

•IP67 and IK10 Protection

•Audio and Alarm Input/Output

•Edge Storage, MicroSD Slot, 128 GB

Technical Specifications

Image Sensor:1/3"progressive scan CMOS

Minimum Illumination: Color: 0.014 lux @ (ƒ/1.4,AGC on); B/W; 0 lux with IR

Shutter Speed:1/3 s to 1/10,000 s

Slow Shutter:Yes

Lens: 2.8 mm to12 mm @ ƒ/1.4, motorized lens

Angle of View:112° to 33.8°

Lens Mount: Φ14

Day/Night: IR cut filter with auto switch/schedule/triggered by alarm

Digital Noise Reduction: 3D DNRWide Dynamic Range120 dB

Pan/Tilt /Rotation: Pan 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°

Compression Standards

Video Compression: H.264+/H.264/MJPEG

H.264 Type: Main Profile

Video Bit Rate: 32 Kbps to 16 Mbps

Dual Streams: Yes

Audio: G.711/G.722.1/G.726/MP2L2, 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 128 Kbps (MP2L2)


Maximum Resolution: 2688 × 1520

Frame Rate: 20 fps (2688 × 1520), 30 fps (1920 × 1080,1280 × 720)

Image Settings: Compression, color, saturation, brightness, contrast, sharpness, rotate mode, privacymask

Backlight Compensation:Yes, zone configured

Region of Interest (ROI): Yes, 4 regions

Analytics

Smart Features: Line crossing detection (4 lines), intrusion detection (4 regions)

Network

Network Storage: NAS (supports NFS,SMB/CIFS); ANR

Alarm Triggers: Motion detection, line crossing detection, intrusion detection, tamper alarm, network disconnect, IP address conflict, storage exception

Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Security: Three level user authentication, password authorization, HTTPS and SSH certificate, IEEE802.1X, basic and digest authentication, watermark, IP address filtering, log-in lockout

Standards: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

Interface

Communication: 1 RJ-45 10M/100M Ethernet port

On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB

Alarm: 1 alarm I/O

Audio: 1 audio I/O

General

Operating Conditions: -30° C to 60° C (-22° F to 140° F), humidity 95% or less (non-condensing)

Power: 12 VDC ±10%, PoE (802.3af) UL/cUL Listed

Power Consumption: Maximum 5.5 W

IR Range: 30 meters (~100 feet)

Ingress Protection: IP67

Impact Protection: IEC60068-275Eh, 20J; EN50102, up to IK10

Dimensions: Φ140 mm ×99.9 mm (Φ5.51"×3.94")

Weight: 1000 g
