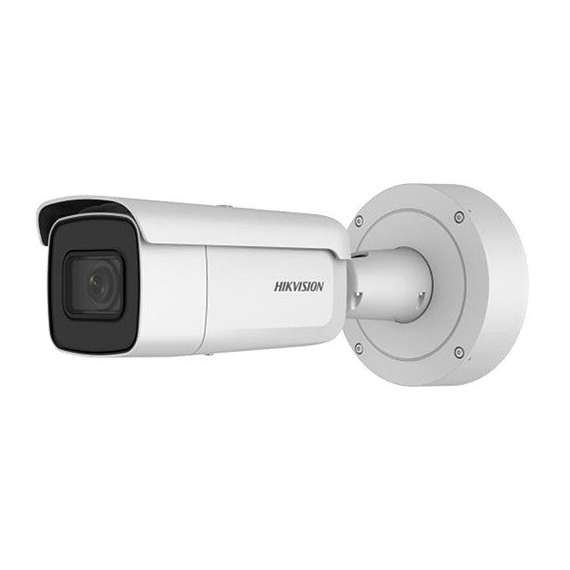

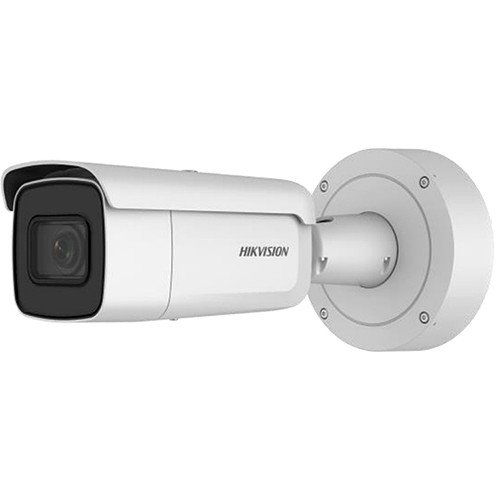

Hikvision DS-2CD2645FWD-IZS 4MP IR Vari-focal Bullet Network Camera
![Buy Hikvision DS-2CD2645FWD-IZS 4MP IR Vari-focal Bullet Network Camera in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/49/d59f54049f3ebe172eabdddbd3bb0c5d.jpg.jpg "Buy Hikvision DS-2CD2645FWD-IZS 4MP IR Vari-focal Bullet Network Camera in [storefront]"){kind=small}
![Buy Hikvision DS-2CD2645FWD-IZS 4MP IR Vari-focal Bullet Network Camera in [storefront]](images/detailed/49/d59f54049f3ebe172eabdddbd3bb0c5d.jpg "Buy Hikvision DS-2CD2645FWD-IZS 4MP IR Vari-focal Bullet Network Camera in [storefront]")
PRODUCTCODE_19321
Please sign in so that we can notify you about a reply
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.5" Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8 mm to 12 mm, horizontal FOV: 114° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 141° to 36.5° | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Auto | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| H.264 code profile: | Main Profile/High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) | |
| Triple Streams: | Yes | |
| Image | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Image Resolution: | 2688 × 1520 | |||||||||||||||||||
| Frame Rate: | 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) |
|||||||||||||||||||
| Sub Stream: | 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
|||||||||||||||||||
| Third Stream: | 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240) |
|||||||||||||||||||
| Image Enhancement: | BLC/3D DNR/ROI/HLC | |||||||||||||||||||
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser | |||||||||||||||||||
| ROI: | Support 1 fixed region for main stream and sub stream separately | |||||||||||||||||||
| Day/Night Switch: |
Day/Night/Auto/Schedule/Triggered by Alarm In
|
|||||||||||||||||||
| Interface | ||
|---|---|---|
| Audio: | 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Alarm: | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block | |
| Video Output: | 1Vp-p Composite Output(75Ω/CVBS) (For adjustment only) | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection | |
| Recognition: | Face Detection | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | 12 VDC, 1.2 A, max. 14.4 W PoE (802.3at, 42.5V to 57V), 0.5 A to 0.3 A, max. 18 W |
|
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 50m | |
| Dimensions: | Φ144.1 × 332.7 mm (Φ5. 7"× 13.1") | |
| Weight: | Camera: approx. 1893 g (4.2 lb.) | |
