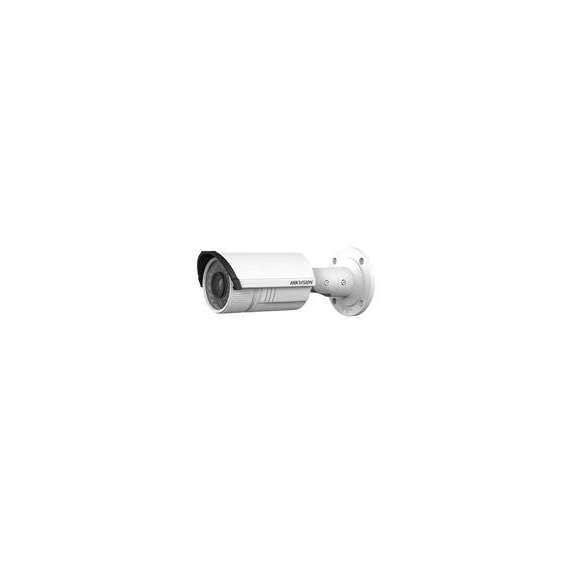

Hikvision DS-2CD2642FWD-IZS 4MP WDR Varifocal Bullet Network Camera


Key Features

• 4 Megapixel High Resolution
• Full HD1080p Video
• Dual Video Streams
• 2.8 mm to 12 mm Motorized Lens
• 120 dB Wide Dynamic Range
• 3D Digital Noise Reduction
• Smart Features PoE (802.3af)
• IR Range 30 Meters (~100 Feet)
• IP67 Protection
• Audio and Alarm Input/Output
• Edge Storage, MicroSD Slot, 128 GB

Technical Specifications

Image Sensor:1/3"progressive scan CMOS

Minimum Illumination: 014 lux @ (ƒ/1.4,AGC on);  0 lux with IR

Shutter Speed:1/3 s to 1/10,000 s

Slow Shutter:Yes

Lens: 2.8 mm to12 mm @ ƒ/1.4, motorized lens

Angle of View:112° to 33.8°

Lens Mount: Φ14

Day/Night: IR cut filter with auto switch

Digital Noise Reduction: 3D DNR

Wide Dynamic Range:120 dB

Pan/Tilt /Rotation: 3- axis positioning

Compression Standards

Video Compression: H.264+/H.264/MJPEG

H.264 Type: Main Profile

Video Bit Rate: 32 Kbps to 16 Mbps

Dual Streams: Yes

Audio: G.711/G.722.1/G.726/MP2L2, 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 128 Kbps (MP2L2)


Maximum Resolution: 2688 × 1520

Frame Rate: 20 fps (2688 × 1520), 30 fps (1920 × 1080,1280 × 720)

Image Settings: Compression, color, saturation, brightness, contrast, sharpness, rotate mode, privacymask

Backlight Compensation:Yes, zone configured

Region of Interest (ROI): Yes

Analytics

Smart Features: Line crossing detection, intrusion detection

Network

Network Storage: NAS (supports NFS,SMB/CIFS); ANR

Alarm Triggers: Motion detection, line crossing detection, intrusion detection, tamper alarm, network disconnect, IP address conflict, storage exception

Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Security: Three level user authentication, password authorization, HTTPS and SSH certificate, IEEE802.1X, basic and digest authentication, watermark, IP address filtering, log-in lockout

Standards: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

Interface

Communication: 1 RJ-45 10M/100M Ethernet port

On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB

Alarm: 1 alarm I/O

Audio: 1 audio I/O

General

Operating Conditions: -30° C to 60° C (-22° F to 140° F), humidity 95% or less (non-condensing)

Power: 12 VDC ±10%, PoE (802.3af)

Power Consumption: Maximum 5.5 W(Maximum  7.5W with IR cut filter on)

IR Range: 30 meters (~100 feet)

Ingress Protection: IP67

Impact Protection: IEC60068-275Eh, 20J; EN50102, up to IK10

Dimensions: 95 mm × 105mm x 258.6mm

Weight: 1200 g
