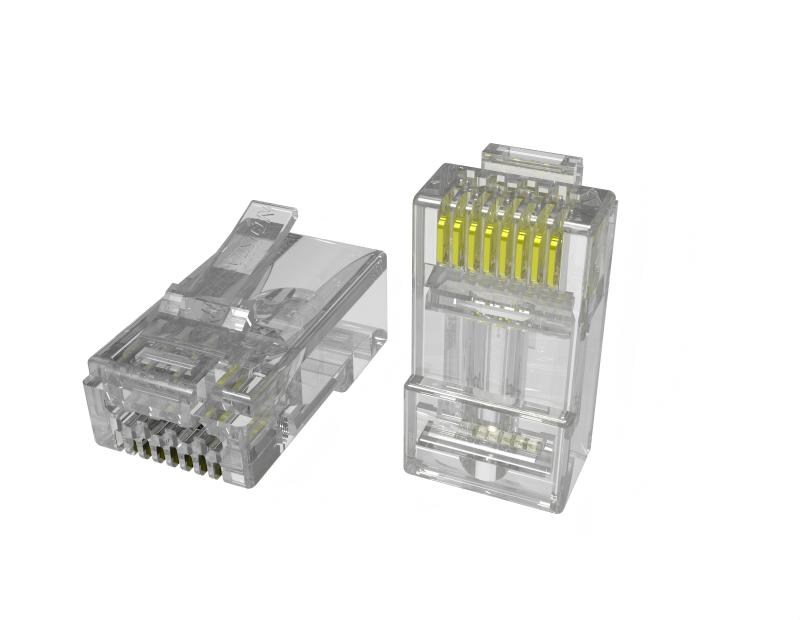

Hikvision DS-1M6AUA Cat6A Unshielded Connector
The Hikvision DS-1M6AUA is a Cat6A RJ45 unshielded connector supporting 10G Base-T Ethernet, featuring 15µ-inch gold-plated contacts, 8-pin/8-conductor construction and RoHS compliance for reliable high-speed network installations.
Specifications
• Brand: Hikvision
• Model: DS-1M6AUA
• Product Type: Cat6A RJ45 Unshielded Connector
• Quantity: 100 pieces
• Connector Type: RJ45, 8P8C
• Category: Cat6A
• Shielding: Unshielded
• Ethernet Support: 10G Base-T
• Contacts: 15µ-inch gold-plated contacts
• Pin Configuration: 8 pins × 8 conductors
• Housing Material: Polycarbonate, UL94V-2
• Maximum Current: 1.5A @ 25°C
• Maximum Voltage: ≤150VAC
• Contact Resistance: ≤20mΩ
• Mechanical Life: ≥750 insertion/extraction cycles
• Operating Temperature: -25°C to +55°C
• Compliance: RoHS
• Applications / Use Case: Cat6A structured cabling, high-speed Ethernet networks and surveillance installations
