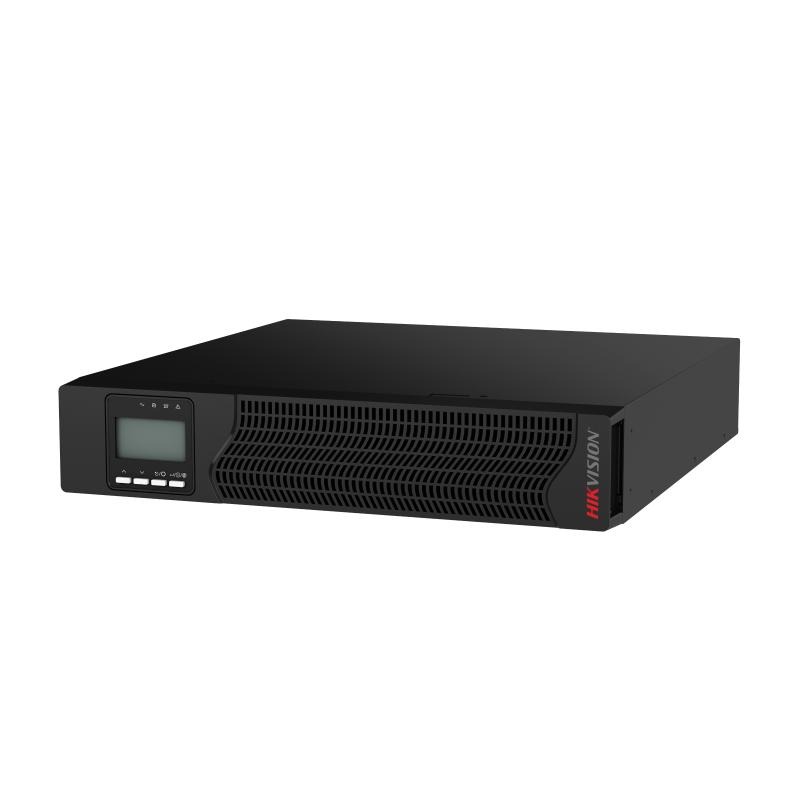

Hikvision 6000VA/6000W Online Uninterruptible Power Supply

Protect critical equipment with the Hikvision online UPS, delivering stable power, advanced electrical protection and flexible external battery expansion for servers, data centres, networking equipment and other essential business systems.

Specifications
  • Model: DS-UPS06K-R/TJL | Brand: Hikvision | Product Type: Online Uninterruptible Power Supply (UPS)
  • UPS Capacity: 6000VA / 6000W
  • UPS Technology: Online double-conversion
  • Input Voltage: 208/220/230/240V AC
  • Input Voltage Range: 110–300V AC (110–300V at 50% load; 176–300V at 100% load)
  • Input Frequency: 40–70Hz | Automatic 50/60Hz sensing
  • Phase: Single-phase
  • Input Power Factor: ≥0.99
  • Output Voltage: 208/220/230/240V AC
  • Output Power Factor: 1.0
  • Output Waveform: Pure sine wave
  • Crest Factor: 3:1
  • Transfer Time: 0ms from AC mode to battery mode; 0ms from inverter to bypass
  • Built-in Battery: None | Requires compatible external battery pack
  • Battery Type: Valve-regulated lead-acid (VRLA)
  • DC Battery System Voltage: 192V or 240V DC, configurable
  • Maximum Charging Current: 12A
  • Compatible External Battery Packs: DS-UPSB09192A-R/TJ or DS-UPSB09240A-R/TJ
  • Display: LCD showing input/output voltage and frequency, load percentage, battery voltage, internal temperature and estimated remaining backup time
  • Alarms: Battery mode, low battery voltage, overload and fault
  • Efficiency: Up to 95% in AC mode and 93% in battery mode
  • Output Connections: Connecting terminal plus IEC socket panel; socket configuration depends on model version
  • Protection: Overload, short circuit, over-temperature and battery-related protection
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -25°C to 55°C
  • Operating Humidity: 0–95% (non-condensing)
  • Noise Level: ≤50dB
  • Dimensions (W × D × H): 440 × 621.5 × 86.5mm
  • Net Weight: Approximately 15.5kg
  • Installation: Rack or tower configuration
