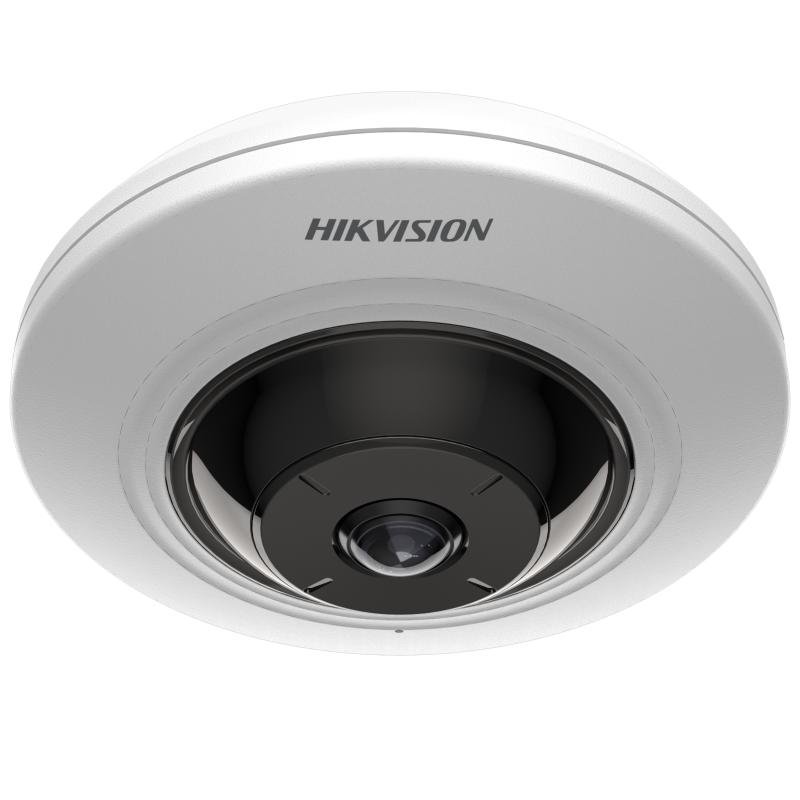

Hikvision - 5MP Fixed Fisheye Network Camera
DS-2CD2955G0-IS(U)
BrandHikvision
CCTV Camera TypeFish Eye
ConditionNew
Power over Ethernet (PoE)Full PoE
Warranty IssuerManufacturer
Please sign in so that we can notify you about a reply
| Camera | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1920 |
| Min. Illumination | Color: 0.017 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
Lens |
|
| Lens Type | Fixed focal lens, 1.05 mm |
| Focal Length & FOV | 1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180° |
| Lens Mount | M12 |
| Focus | Fixed |
| Iris Type | Fixed |
| Aperture | F2.25 |
| Depth of Field | 0.1 m to ∞ |
DORI |
|
| DORI | D: 21 m, O: 8 m, R: 4 m, I: 2 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 8 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video |
|
| Main Stream | 50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960）60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960） |
| Sub-Stream | 50 Hz: 25 fps (640 × 480)60 Hz: 30 fps (640 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
Fisheye Display |
|
| Mount Type | Support wall/table/ceiling mounting |
| Display Mode | Support 14 display modes in total(including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ,Panorama View, Panorama + 3PTZ, Panorama + 8PTZ |
Audio |
|
| Audio Type | Mono sound |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw/G.711 alawm/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps(MP2L2)/16~64Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
Network |
|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI |
| User/Host | Up to 32 users3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+,Local service: Chrome 57.0+, Firefox 52.0+ |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter,Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS) |
Image |
|
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, white balance, adjustable byclient software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, 3D DNR |
| Wide Dynamic Range (WDR) | 120 dB |
Interface |
|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Built-in Microphone | -U: Yes |
| Audio | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 A) |
| Reset Key | Yes |
| Power Output | 12 VDC, max. 100 mA |
Event |
|
| Basic Event | Motion detection, video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, triggerrecording, trigger capture, trigger alarm output |
General |
|
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Material | ADC12 |
| Dimension | Ø119.9 mm × 41.2 mm (Ø4.7″ × 1.6″) |
| Package Dimension | 150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″) |
| Weight | Approx. 320 g (0.7 lb.) |
| With Package Weight | Approx. 500 g (1.1 lb.) |
| Storage Conditions | -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Language | 13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese,Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian |
| Startup and OperatingConditions | -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, anti-banding, mirror, password protection |
Approval |
|
|
EMC |
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
|
Safety |
UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU |
