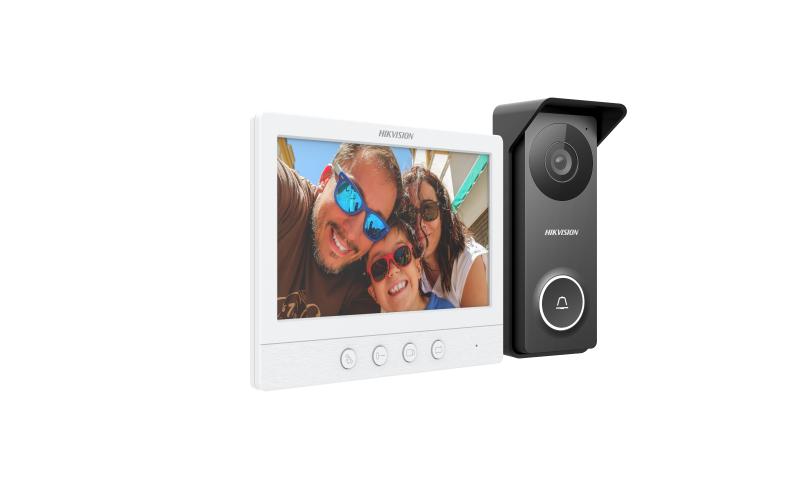

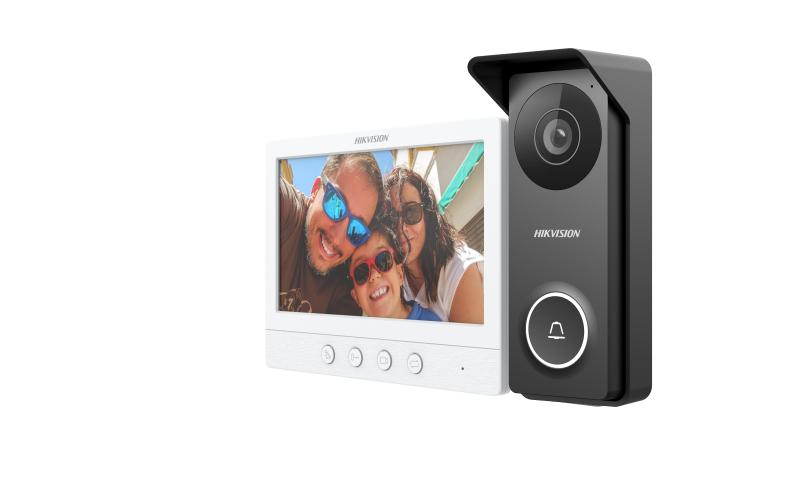

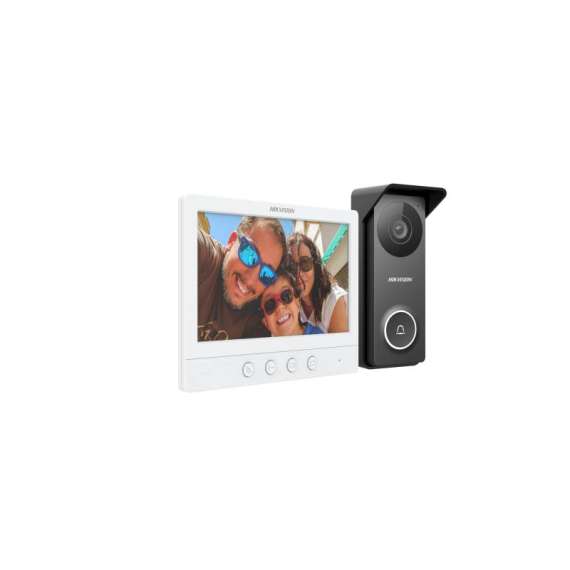

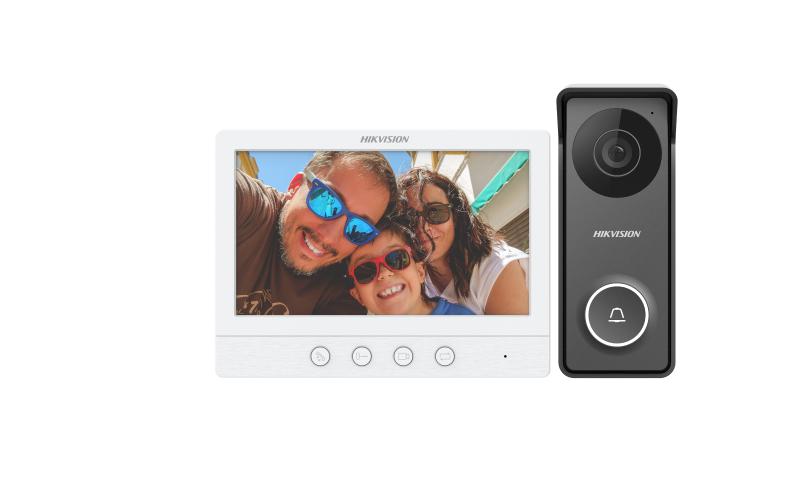

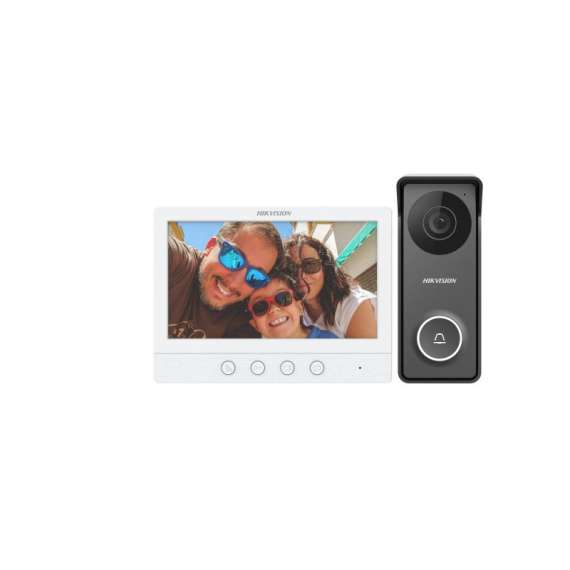

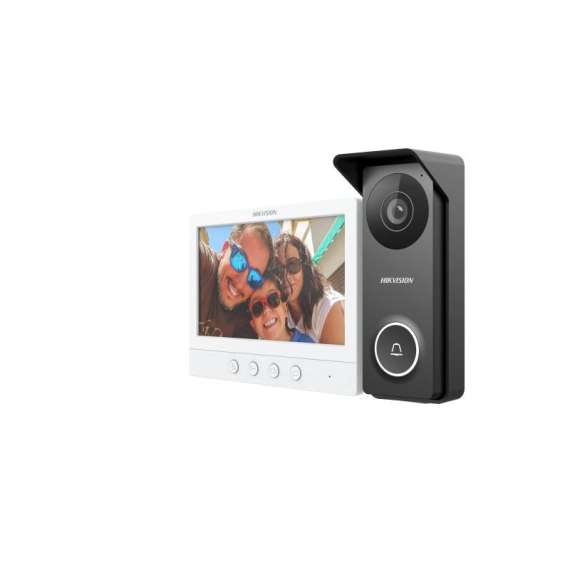

Hikvision 4 wire HD VEDIO INTERCOM KIT
Ds-kis213
Please sign in so that we can notify you about a reply
Door station/Video parameters
Supplement lightIR light, up to 3 m
ResolutionStream resolution: 1280 x 720@60fps
FOVHorizontal: 117°, Vertical: 70°, Diagonal: 141°
Door station/Audio parameters
Audio inputBuilt-in omnidirectional microphone (≤50 cm)
Audio outputBuilt-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)
Door station/Device interfaces
Lock control1 relay, max 30 V 1 A
Debugging port1
Four-wire1 four-wire interface
Door station/General
Button1 physical button(s)
Power supply12 VDC
Power consumptionMax. 4 W
Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity10% to 90%
Dimensions145 mm × 55 mm × 24 mm (5.71" × 2.17" × 0.94")
Application environmentOutdoor
InstallationSurface mounting
Protective levelIP65, IK08
MaterialMetal
Indoor station/Display parameters
Operation methodPhysical button
Type7-inch colorful TFT
Resolution1024 x 600
Indoor station/Audio parameters
Audio inputBuilt-in omnidirectional microphone (≤50 cm)
Audio outputBuilt-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)
Indoor station/Capacity parameters
Linked indoor extensions capacity2
Linked doorphone capacity2
Linked analog camera1
Indoor station/Device interfaces
Power supply input12V DC
Debugging port1
Four-Wire interface4, 2 for indoor extensions, 2 for doorphones
DIP switch1 Bit
BNC1
Indoor station/General
Button4 physical buttons
Power supply12 VDC
Power consumption≤4 W
Working temperature-10° C to + 55° C (14° F to 131° F)
Working humidity10% to 90%
Dimensions (W × H × D)178 mm x 132 mm x 19 mm (7.01" × 5.20" × 0.75")
InstallationSurface mounting
Application environmentIndoor
Supplement lightIR light, up to 3 m
ResolutionStream resolution: 1280 x 720@60fps
FOVHorizontal: 117°, Vertical: 70°, Diagonal: 141°
Door station/Audio parameters
Audio inputBuilt-in omnidirectional microphone (≤50 cm)
Audio outputBuilt-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)
Door station/Device interfaces
Lock control1 relay, max 30 V 1 A
Debugging port1
Four-wire1 four-wire interface
Door station/General
Button1 physical button(s)
Power supply12 VDC
Power consumptionMax. 4 W
Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity10% to 90%
Dimensions145 mm × 55 mm × 24 mm (5.71" × 2.17" × 0.94")
Application environmentOutdoor
InstallationSurface mounting
Protective levelIP65, IK08
MaterialMetal
Indoor station/Display parameters
Operation methodPhysical button
Type7-inch colorful TFT
Resolution1024 x 600
Indoor station/Audio parameters
Audio inputBuilt-in omnidirectional microphone (≤50 cm)
Audio outputBuilt-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)
Indoor station/Capacity parameters
Linked indoor extensions capacity2
Linked doorphone capacity2
Linked analog camera1
Indoor station/Device interfaces
Power supply input12V DC
Debugging port1
Four-Wire interface4, 2 for indoor extensions, 2 for doorphones
DIP switch1 Bit
BNC1
Indoor station/General
Button4 physical buttons
Power supply12 VDC
Power consumption≤4 W
Working temperature-10° C to + 55° C (14° F to 131° F)
Working humidity10% to 90%
Dimensions (W × H × D)178 mm x 132 mm x 19 mm (7.01" × 5.20" × 0.75")
InstallationSurface mounting
Application environmentIndoor
