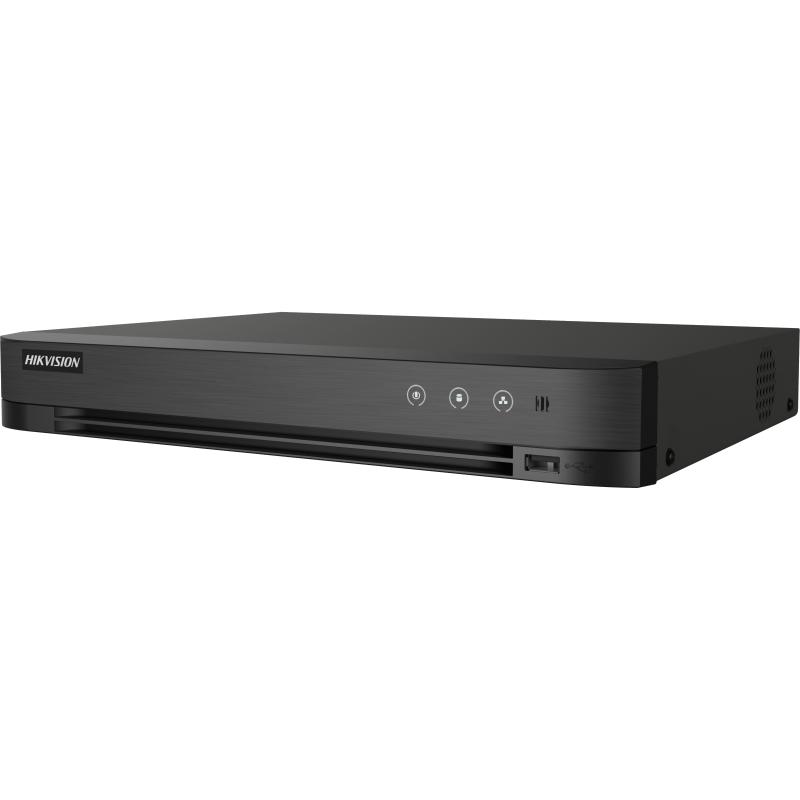

Hikvision- 4-ch 1080p 1U H.265 AcuSense DVR

The Hikvision 4-Channel AcuSense DVR supports analogue and IP cameras, H.265 Pro+ compression, recording up to 5MP Lite/3K Lite, 10TB HDD capacity, HDMI/VGA output, and reliable network access for intelligent surveillance systems.

Specifications
  • Brand: Hikvision
  • Product Type: 4-Channel 1080p 1U H.265 AcuSense DVR
  • Video Input: 4 × BNC, 1.0 Vp-p, 75Ω | Coaxitron support | 1 × IP video input, expandable up to 6 channels
  • Video Output: 1 × HDMI and 1 × VGA | Up to 1920 × 1080 @ 60Hz
  • Audio Input: 1 × RCA, 2.0 Vp-p, 1KΩ | 4-channel audio via coaxial cable
  • Audio Output: 1 × RCA, linear, 1KΩ
  • Video Compression: H.265 Pro+, H.265 Pro, H.265 and H.264+/H.264
  • Recording Resolution: 3K Lite, 5MP Lite, 4MP Lite, 1080p, 720p, VGA, WD1, 4CIF and CIF
  • Frame Rate: 3K Lite @ 12fps | 4MP Lite/1080p @ 15fps | 720p/WD1/4CIF/VGA/CIF @ 20fps
  • Network: 72Mbps total bandwidth | 1 × RJ45 10/100Mbps self-adaptive Ethernet | Up to 32 remote connections | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP and HTTPS
  • Storage: 1 × SATA interface | Supports up to 10TB capacity
  • USB: 2 × USB 2.0 ports on rear panel
  • Power: 12V DC, 1.5A | Maximum 18W consumption without HDD
  • Chassis: 1U
  • Dimensions & Weight: 315 × 242 × 45mm | Up to 1.16kg without HDD
  • Operating Conditions: -10°C to 55°C, 10% to 90% humidity
  • Applications / Use Case: Suitable for homes, offices, shops, warehouses, schools and commercial CCTV systems requiring analogue and IP camera support with efficient H.265 recording
  • Warranty: Standard manufacturer warranty
