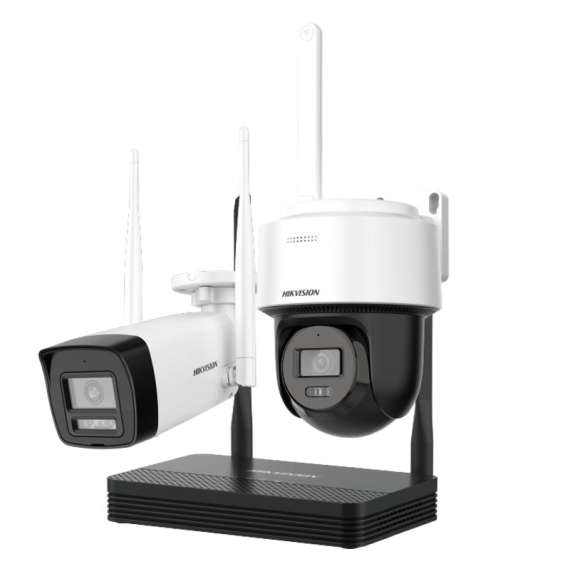

Hikvision - 2MP H.265 One bullet + One PTDome WiFi NVS Kit
- Camera Case TypeBullet;Dome
- Image Sensor1/3" Progressive Scan CMOS
- Min. Illumination
Bullet：Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
Dome：Color: 0.04 Lux @ (F2.0, AGC ON),B/W: 0.01 Lux @ (F2.0, AGC ON),0 Lux with IR
- Day &NightIR cut filter
- WDRDWDR
- Angle Adjustment
Bullet: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Dome: Pan: 0° to 345°,tilt: 0° to 80°
- Protection LevelIP66
- Wi-Fi SupportYes
- Power Supply
Bullet: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Dome: 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug
- Consumption
Bullet: ≤ 6 W
Dome: ≤ 9 W
- Working Temperature
Bullet: -30 °C to 60 °C (-22 °F to 140 °F)
Dome: -10 °C to 40 °C (-14 °F to 104 °F)
- Working Humidity95% or less (non-condensing)
- Dimension (W × D × H)
Bullet: 260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5\" × 2.7\")
Dome: Ø124 mm × 119 mm (Ø4.89 × 4.68\")"
-
Bullet: 305 g (0.67 lb.)
Dome: 600 g (1.32 lb.)
- Focal Length2.8 mm
- ApertureF2.0
- FocusFixed
- FOVHorizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
- Camera/IR
- IR Range
Bullet：Up to 30 m
Dome：White light distance: up to 25 m,IR distance: up to 25 m
- Camera/Compression Standard
- Video CompressionH.265;H.264;MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 8 Mbps
- Audio CompressionG.711/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Camera/Image
- Max. Resolution2MP
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)
- Sub-stream
50 Hz: 25 fps (768 × 432)
60 Hz: 30 fps (768 × 432)
- Image SettingSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchAuto/Scheduled/Day/Night
- Alarm TriggerMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP
- General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Camera/Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Reset ButtonYes
- IP Video Input4-ch
- Incoming/Outgoing Bandwidth20 Mbps/20 Mbps
- Video Resolution6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback1-ch
- Network Interface1, RJ45 10/100M Ethernet interface
- Frequency Band2.4 GHz
- Antenna StructureHigh gain antenna
- Transmission Speed150 Mbps
- SD Card32G/64G/128G/256G/512G
- Power Supply12 VDC
- Consumption (without HDD and PoE off)≤ 6 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)163 x 125 x 26 mm (6.4" × 4.9" × 1.0")
- Weight (without hard disk)≤ 500g
- Kit
- Accessories
Power adaptor: 2 × IPC power adaptor, 1 × NVS power adaptor
Ethernet cable: RJ45, Cat5e UTP, 1 m
- Weight (with package)≤ 2.5 kg (5.5 lb)
- New
- Full PoE
- Manufacturer
