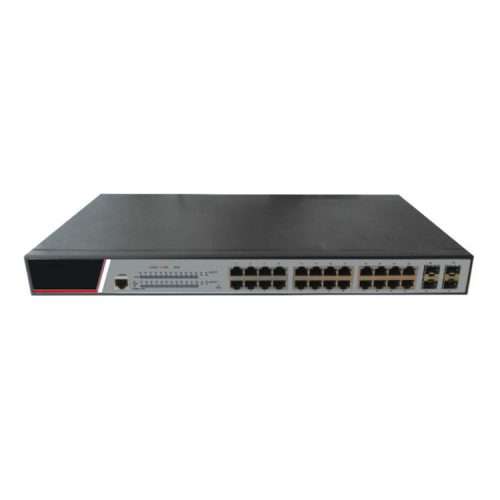

Hikivision DS-3E2528P 24 Port Gigabit Full Managed POE Switch

24 Port Gigabit Full Managed POE Switch

• 24 Gigabit Poe electrical ports and 4 Gigabit combo ports.
• Support static routing, policy routing, rip, OSPF and other three-layer routing protocols.
• IGMP snooping and GRMP for filtering multicast traffic.
• Port‐based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
• Support IEEE 802.1x authentication, radius and bdtacacs + authentication.
• Support EAPs and ERPs Ethernet ring network protection protocol.
• QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism.
• Support IEEE 802.3af/at compliant PoE.
• Each PoE port provides up to 30W output power.
• PoE management: PoE device detection, PoE power management.
• Easy network management by web browser, Console, Telnet, SSH.
• SNMPv1/v2c/v3 for different levels of network management.

Features and Functions

• Supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
• Has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
• Supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
• Supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
• Supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
• Supports the configuration of Base-T port priority when the power is inadequate.
• Supports POE port and up to 4KV power thunder-proof.
• Supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
• Provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
• Supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;
• Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
• Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
• Supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
• Supports perfect ring detection mechanism which ensures the long-term stable running of network;
• Supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
• Supports many management modes such as the console port, Telnet, SSH;
• Supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;
• Supports TFTP-patterned file upload/download management;
