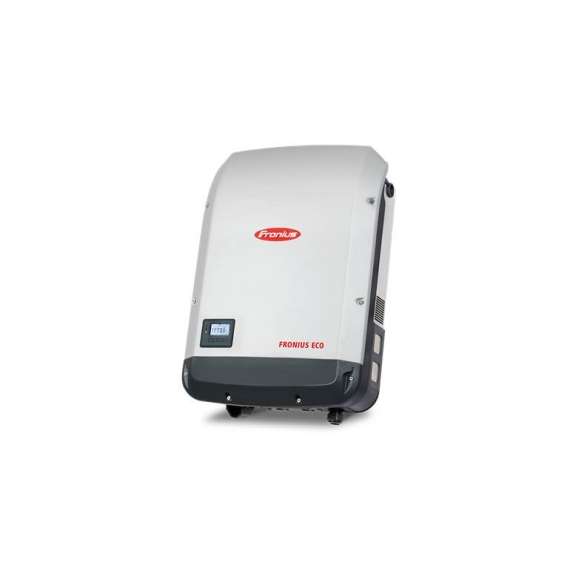

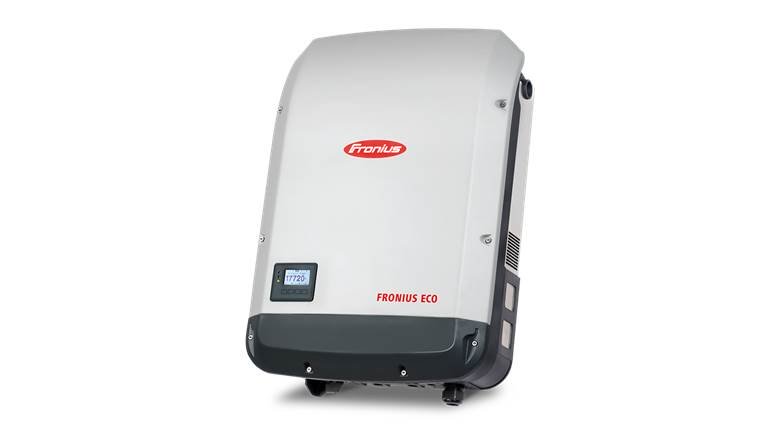

Shopit 0777-777-000 | Fronius Eco 27.0-3-S Light Inverter in Nairobi, Kenya

Write a review

CODE :

PRODUCTCODE_25025

Ksh 578,000

(Ksh 670,480 Inc VAT)

+ −

Request for Quotation

BrandFronius ConditionNew

Vendor: Shopit Limited - Kenya

Ask a question

Number of MPP trackers	1
Max. input current (Idc max)	44,2 A
Max. short circuit current, module array	71,6 A
DC input voltage range (Udc min - Udc max)	580 - 1000 V
Feed-in start voltage (Udc start)	650 V
Nominal input voltage (Udc,r)	580 V
MPP voltage range (Umpp min - Umpp max)	580 - 850 V
Usable MPP voltage range	580 - 850 V
Number of DC connections	6
Max. PV generator power (Pdc max)	37,8 kWpeak

Number of MPP trackers

Max. input current (Idc max)

44,2 A

Max. short circuit current, module array

71,6 A

DC input voltage range (Udc min - Udc max)

580 - 1000 V

Feed-in start voltage (Udc start)

650 V

Nominal input voltage (Udc,r)

580 V

MPP voltage range (Umpp min - Umpp max)

580 - 850 V

Usable MPP voltage range

580 - 850 V

Number of DC connections

Max. PV generator power (Pdc max)

37,8 kWpeak

AC nominal output (Pac,r)	25 kW
Max. output power (Pac max)	25 kVA
AC output current (Iac nom)	37,9 / 36,2 A
Grid connection (Uac,r)	3~ NPE 400/230, 3~ NPE 380/220 V
AC voltage range (Umin - Umax)	150 - 275 V
Frequency (fr)	50 / 60 Hz
Frequency range (fmin - fmax)	45 - 65 Hz
Total harmonic distortion	< 2 % 2="" %="">
Power factor (cos φac,r)	0 - 1 ind./cap.

AC nominal output (Pac,r)

25 kW

Max. output power (Pac max)

25 kVA

AC output current (Iac nom)

37,9 / 36,2 A

Grid connection (Uac,r)

3~ NPE 400/230, 3~ NPE 380/220 V

AC voltage range (Umin - Umax)

150 - 275 V

Frequency (fr)

50 / 60 Hz

Frequency range (fmin - fmax)

45 - 65 Hz

Total harmonic distortion

< 2 % 2="" %="">

Power factor (cos φac,r)

0 - 1 ind./cap.

Height	725 mm
Width	510 mm
Depth	225 mm
Weight	35,7 kg
Degree of protection	IP 66
Protection class	1
Overvoltage category (DC / AC) 1)	2 / 3
Night-time consumption	< 1 w 1="">
Inverter design	Transformerless
Cooling	Regulated air cooling
Installation	Indoors and outdoors
Ambient temperature range	-25°C - +60°C
Permitted humidity	0 - 100 %
Max. altitude 2)	2.000 m
DC connection technology	6x DC+ and 6x DC- screw terminals 2.5 - 16 mm²
AC connection technology	5-pin AC screw terminals 2.5 - 16 mm²
Certificates and compliance with standards	ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G99, UNE 206007-1, SI 4777, CEI 0-16, CEI 0-21

Height

725 mm

Width

510 mm

Depth

225 mm

Weight

35,7 kg

Degree of protection

IP 66

Protection class

Overvoltage category (DC / AC) 1)

2 / 3

Night-time consumption

< 1 w 1="">

Inverter design

Transformerless

Cooling

Regulated air cooling

Installation

Indoors and outdoors

Ambient temperature range

-25°C - +60°C

Permitted humidity

0 - 100 %

Max. altitude 2)

2.000 m

DC connection technology

6x DC+ and 6x DC- screw terminals 2.5 - 16 mm²

AC connection technology

5-pin AC screw terminals 2.5 - 16 mm²

Certificates and compliance with standards

ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727,
AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G99, UNE 206007-1, SI 4777, CEI 0-16, CEI 0-21

Fast and high quality delivery

Our company makes delivery all over the country

Quality assurance and service

We offer only those goods, in which quality we are sure

Returns within 30 days

You have 30 days to test your purchase

Fronius Eco 27.0-3-S Light Inverter

INPUT DATA

OUTPUT DATA

GENERAL DATA
