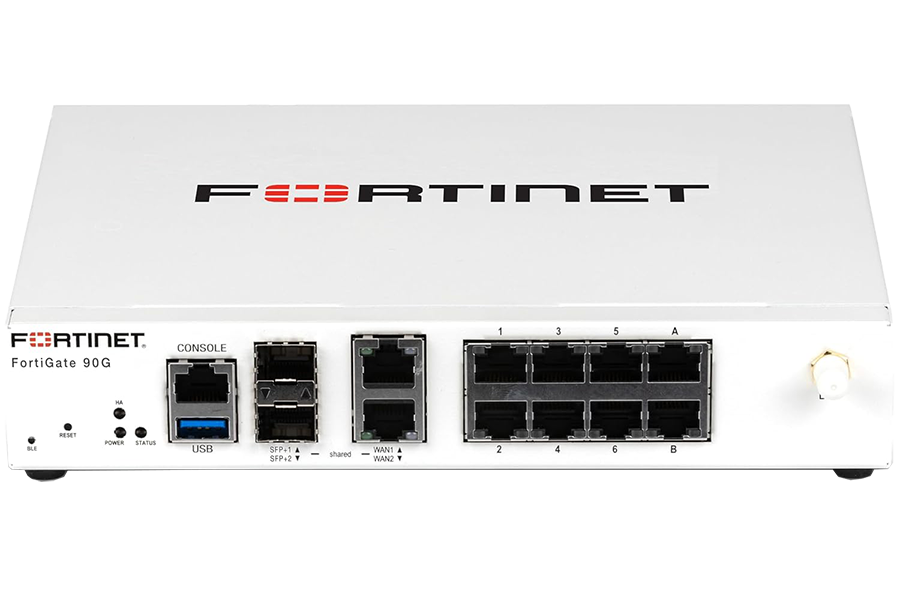

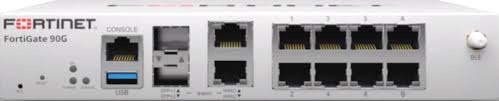

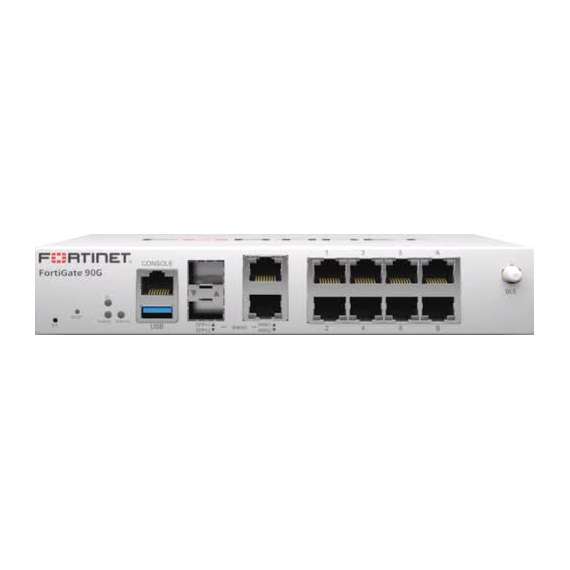

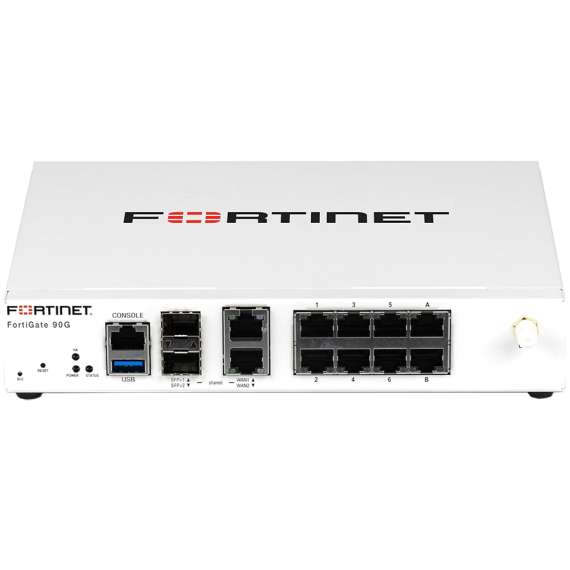

FortiGate 90G Appliance

10/5/2.5/GE RJ45 or 10GE/GE SFP+/ SFP Shared Media pairs: 2
GE RJ45 Internal Ports :8
Wireless Interface :–
USB Ports : 1
Console (RJ45) : 1
Internal Storage: –
Trusted Platform Module (TPM):Yes
Bluetooth Low Energy (BLE): Yes
System Performance* :—
IPS Throughput :4.5 Gbps
NGFW Throughput : 4 2.5 Gbps
Threat Protection Throughput : 2.2 Gbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets):28 / 28 / 27.9 Gbps
Firewall Latency (64 byte UDP packets):3.23 μs
Firewall Throughput(Packets Per Second):41.85 Mpps
Concurrent Sessions (TCP) :3 M
New Sessions/Second (TCP) :124 000
Firewall Policies :5000
IPsec VPN Throughput (512 byte) : 25 Gbps
Gateway-to-Gateway IPsec VPN Tunnels :200
Client-to-Gateway IPsec VPN Tunnels: 2500
SSL-VPN Throughput 6 :1.4 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode):200
SSL Inspection Throughput(IPS, avg. HTTPS) :2.6 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) :1400
SSL Inspection Concurrent Session (IPS, avg. HTTPS) :300 000
Application Control Throughput(HTTP 64K) :6.7 Gbps
CAPWAP Throughput (HTTP 64K): 23.6 Gbps
Virtual Domains (Default / Maximum): 10 / 10
Maximum Number of FortiSwitches Supported:24
Maximum Number of FortiAPs(Total / Tunnel Mode):96 / 48
Maximum Number of FortiTokens :500
High Availability Configurations: Active-Active, Active-Passive, Clustering
