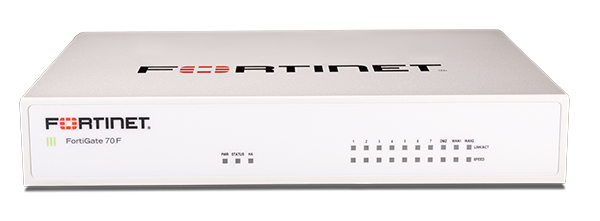

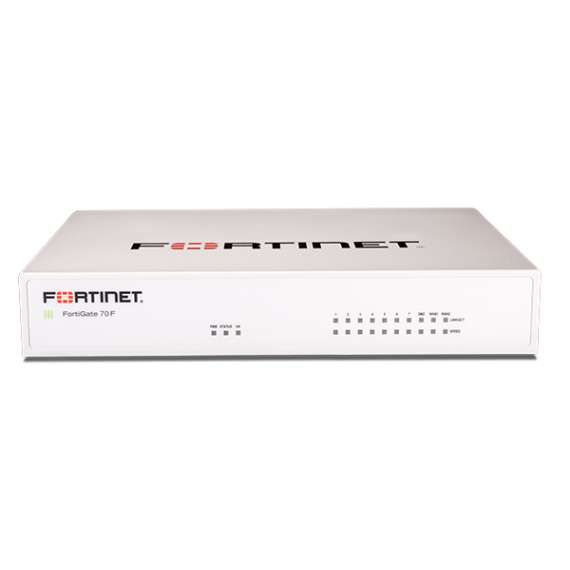

FortiGate 70F Appliance

GE RJ45 WAN / DMZ Ports: 2 / 1
GE RJ45 Internal Ports :5
GE RJ45 FortiLink Ports (Default): 2
Wireless Interface: –
USB Ports: 1
Console (RJ45): 1
Internal Storage: –
Trusted Platform Module (TPM): No
Bluetooth Low Energy (BLE): No
System Performance*: —
IPS Throughput 2 :1.4 Gbps
NGFW Throughput 2, 4: 1 Gbps
Threat Protection Throughput 2, 5 :800 Mbps
System Performance and Capacity Firewall Throughput (1518 / 512 / 64 byte UDP packets):10/10/6 Gbps
Firewall Latency (64 byte UDP packets) :2.54 μs
Firewall Throughput(Packets Per Second):9 Mpps
Concurrent Sessions (TCP): 1.5 M
New Sessions/Second (TCP) :35 000
Firewall Policies :5000
IPsec VPN Throughput (512 byte): 1 6.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels:200
Client-to-Gateway IPsec VPN Tunnels :500
SSL-VPN Throughput 6 :405 Mbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode):200
SSL Inspection Throughput (IPS, avg. HTTPS) 3:700 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 3: 500
SSL Inspection Concurrent Session(IPS, avg. HTTPS):100 000
Application Control Throughput(HTTP 64K):1.8 Gbps
CAPWAP Throughput (HTTP 64K): 8.5 Gbps
Virtual Domains (Default / Maximum) :10 / 10
Maximum Number of FortiSwitches Supported:24
Maximum Number of FortiAPs(Total / Tunnel Mode):64 / 32
Maximum Number of FortiTokens: 500
High Availability Configurations Active-Active, Active-Passive, Clustering
