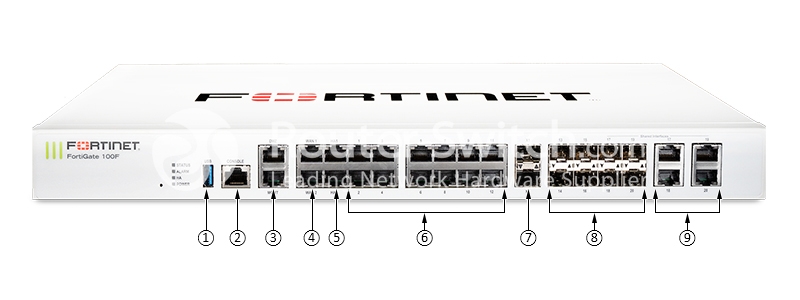

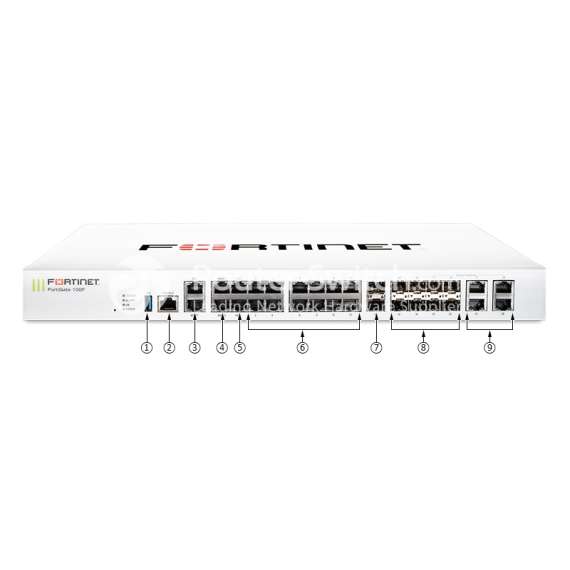

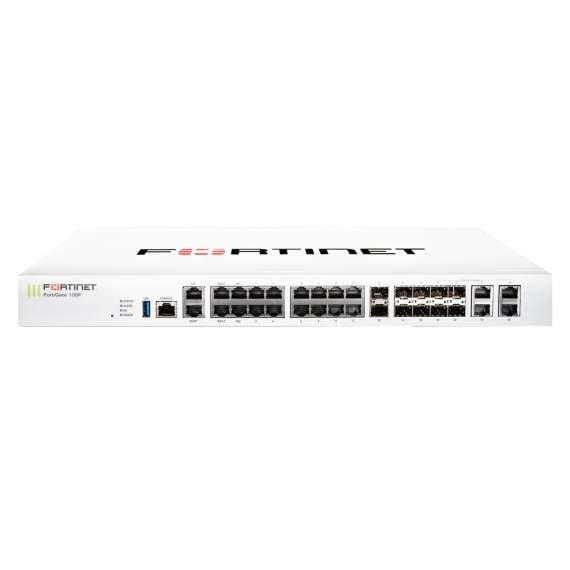

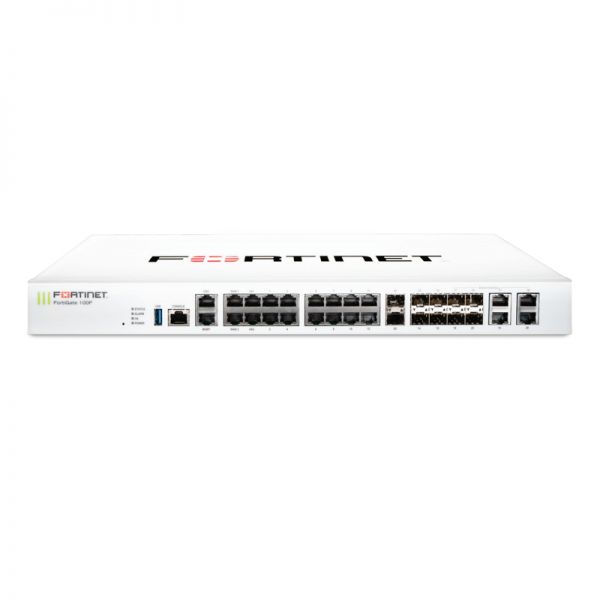

Fortigate 100F Firewall Appliance

Hardware Accelerated GE RJ45 Ports :12
Hardware Accelerated GE RJ45 Management/ HA/ DMZ Ports:1 / 2 / 1
Hardware Accelerated GE SFP Slots: 4
Hardware Accelerated 10 GE SFP+ FortiLink Slots (default):2
GE RJ45 WAN Ports :2
GE RJ45 or SFP Shared Ports *: 4
USB Port :1
Console Port: 1
Onboard Storage :0 1x 480 GB SSD
Included Transceivers: 0
System Performance — Enterprise Traffic Mix
IPS Throughput 2 :2.6 Gbps
NGFW Throughput 2,: 4 1.6 Gbps
Threat Protection Throughput 2,: 5 1 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP):20 / 18 / 10 Gbps
Firewall Latency (64 byte, UDP): 4.97 μs
Firewall Throughput (Packet per Second) :15 Mpps
Concurrent Sessions (TCP): 1.5 Million
New Sessions/Second (TCP) :56 000
Firewall Policies: 10 000
IPsec VPN Throughput (512 byte) 1: 11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 2000
Client-to-Gateway IPsec VPN Tunnels :16 000
SSL-VPN Throughput :1 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode):500
SSL Inspection Throughput (IPS, avg. HTTPS) 3:1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 :1800
SSL Inspection Concurrent Session(IPS, avg. HTTPS) 3:135 000
Application Control Throughput (HTTP 64K) 2:2.2 Gbps
CAPWAP Throughput (HTTP 64K) :15 Gbps
Virtual Domains (Default / Maximum): 10 / 10
Maximum Number of FortiSwitches Supported:32
Maximum Number of FortiAPs (Total / Tunnel):128 / 64
Maximum Number of FortiTokens :5000
High Availability Configurations: Active-Active, Active-Passive, Clustering

Height x Width x Length (inches) :1.73 x 17 x 10
Height x Width x Length (mm) :44 x 432 x 254
Weight :7.25 lbs (3.29 kg) 7.56 lbs (3.43 kg)
Form Factor
(supports EIA/non-EIA standards)
Rack Mount, 1 RU
AC Power Supply: 100–240V AC, 50/60 Hz
Power Consumption
(Average / Maximum):26.5 W / 29.5 W 35.3 W / 39.1 W
Current (Maximum) :100V / 1A, 240V / 0.5A
Heat Dissipation :100.6 BTU/h 121.13 BTU/h
Redundant Power Supplies: Yes
(Default dual non-swappable AC PSU for
1+1 Redundancy)
Power Supply Efficiency: Rating 80Plus Compliant
Operating Environment and Certifications
Operating Temperature :32°F to 104°F (0°C to 40°C)
Storage Temperature :-31°F to 158°F (-35°C to 70°C)
Humidity: 10% to 90% non-condensing
Noise Level :40.4 dBA
Forced Airflow Side to Back
Operating Altitude Up to 10 000 ft (3048 m)
Compliance FCC Part 15B, Class A, CE, RCM, VCCI,
UL/cUL, CB, BSMI
Certifications: USGv6/IPv6
