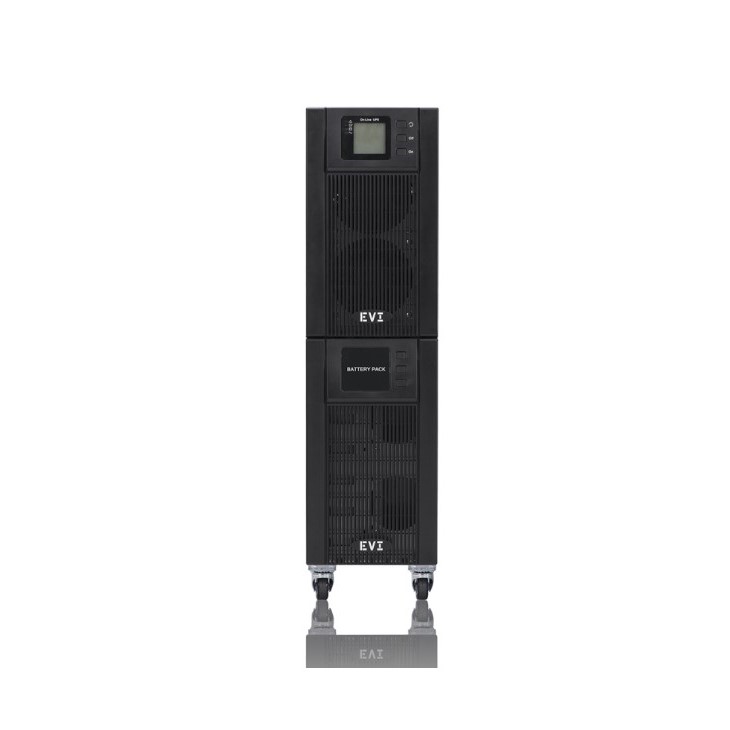

EVI Power EP-UPS10000Y11OT 10KVA Online single phase Tower UPS
EP-UPS10000Y11OT
Please sign in so that we can notify you about a reply
The EVI 10kVA Online UPS is a high-capacity enterprise-grade power backup system designed for data centers, telecom systems, and mission-critical infrastructure. It delivers true online double conversion power with zero transfer time, ensuring clean, stable, and continuous protection for sensitive equipment.
Specifications
- Capacity: 10kVA / 9kW
- Topology: Online double conversion UPS with DSP control
- Form Factor: Rack mount / tower convertible (4U)
- Output: Terminal (L+N+G)
- Input: Terminal (L+N+G), wide voltage range (110–300V AC)
- Power Factor: Input 0.99 (PFC), Output 1.0
- Transfer Time: 0 ms (AC ↔ battery / inverter ↔ bypass)
- Voltage: Selectable output (200/208/220/230/240V)
- Battery: 16 x 7Ah lead-acid (192V), external battery support, charging current up to 15A
- Display: 3.5" touchscreen LCD
- Communication: USB, RS232, RS485, parallel port (SNMP optional)
- Features: ECO mode, generator compatible, cold start, self-test, emergency power off (EPO), maintenance bypass, programmable dry contacts
- Redundancy: N+X parallel redundancy support
- Protection: Advanced load management with zero-interruption power delivery
- Usage: Data centers, enterprise servers, networking systems, and critical infrastructure
- Warranty: 2 Years (1 Year battery)
