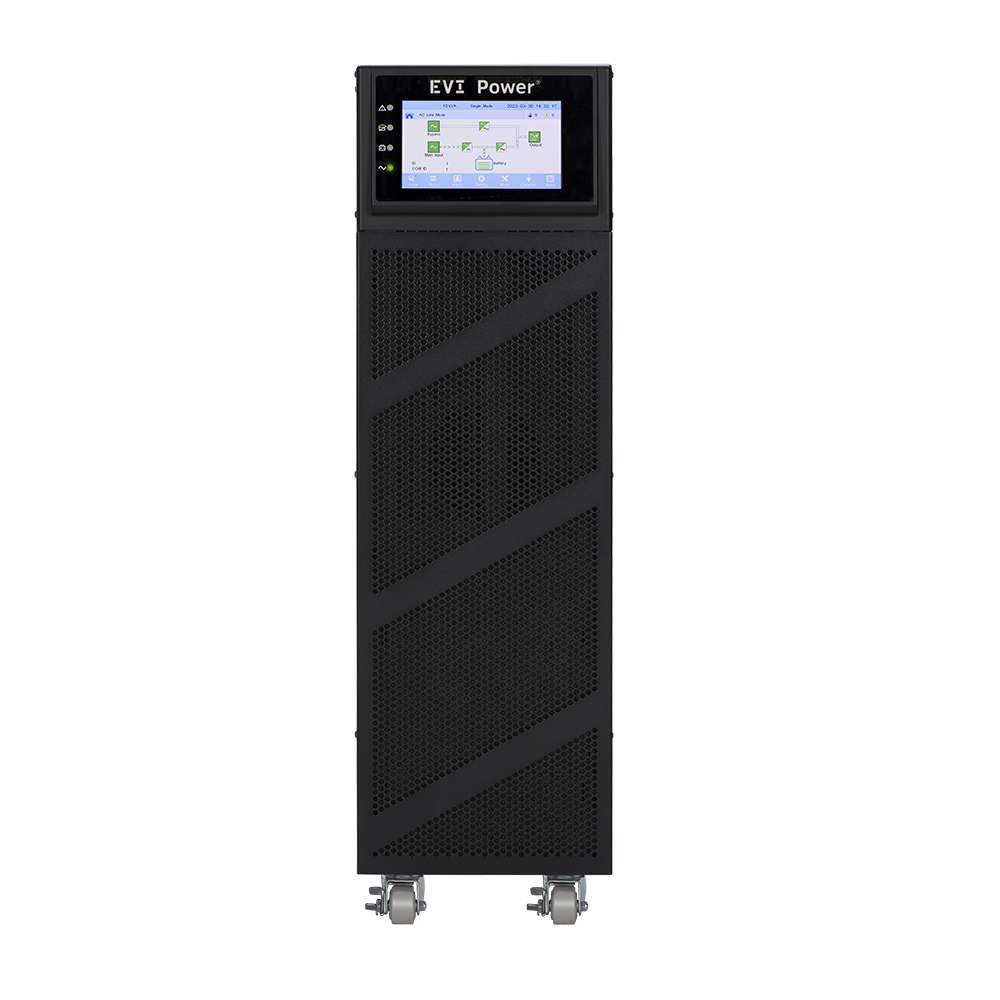

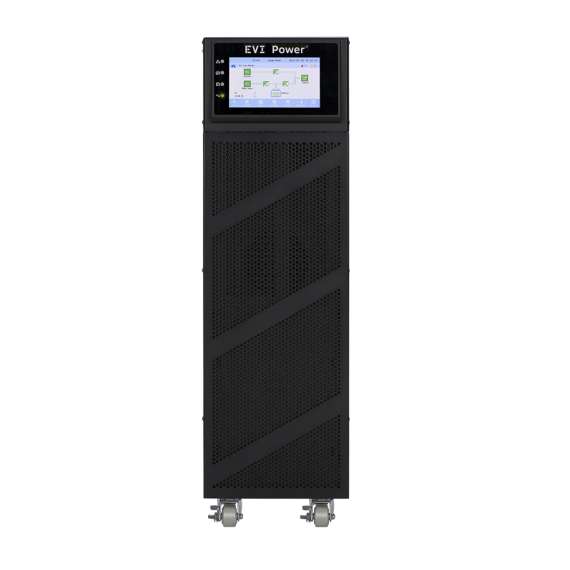

EVI Power 10KVA/9KW Online Three Phase Double conversion Ups
EP-UPS10000Y33OT
Please sign in so that we can notify you about a reply
The EVI 10kVA three-phase UPS is a high-capacity industrial power backup system designed for data centers, hospitals, and large-scale enterprise environments. It delivers true online double conversion power with zero transfer time, ensuring stable and clean electricity for mission-critical systems.
Specifications
- Capacity: 10kVA / 9kW
- Topology: Online double conversion UPS with DSP control
- Input/Output: 3-phase input and output
- Power Factor: Output 0.9 PF, input PFC support
- Input Voltage Range: 208–478V AC
- Input Frequency Range: 40–70Hz
- Transfer Time: 0 ms (no interruption)
- Battery: Internal lead-acid batteries (16 x 7Ah, 192V) with external battery support
- Charging Current: Up to 15A
- Display: 7-inch touchscreen LCD
- Communication: USB, RS232, RS485, parallel port, dry contact (SNMP optional)
- Features: N+X parallel redundancy (up to 4 units), ECO mode, cold start, generator compatible, intelligent charging, EPO function
- Protection: Surge, overload, short circuit, and advanced digital power management
- Form Factor: Tower (4U rack/tower convertible)
- Usage: Data centers, industrial systems, telecom, and critical infrastructure
- Warranty: 2 Years (1 Year battery)
