EVI 40000VA / 36000W Tower Online 3 Phase UPS
EP-UPS40Y33OT
Please sign in so that we can notify you about a reply

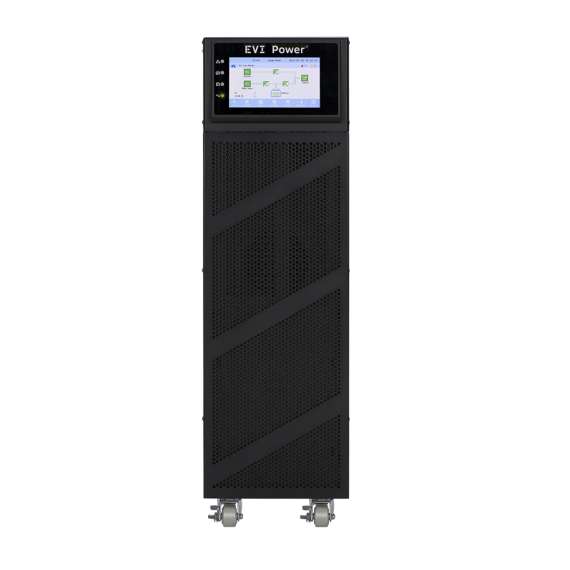

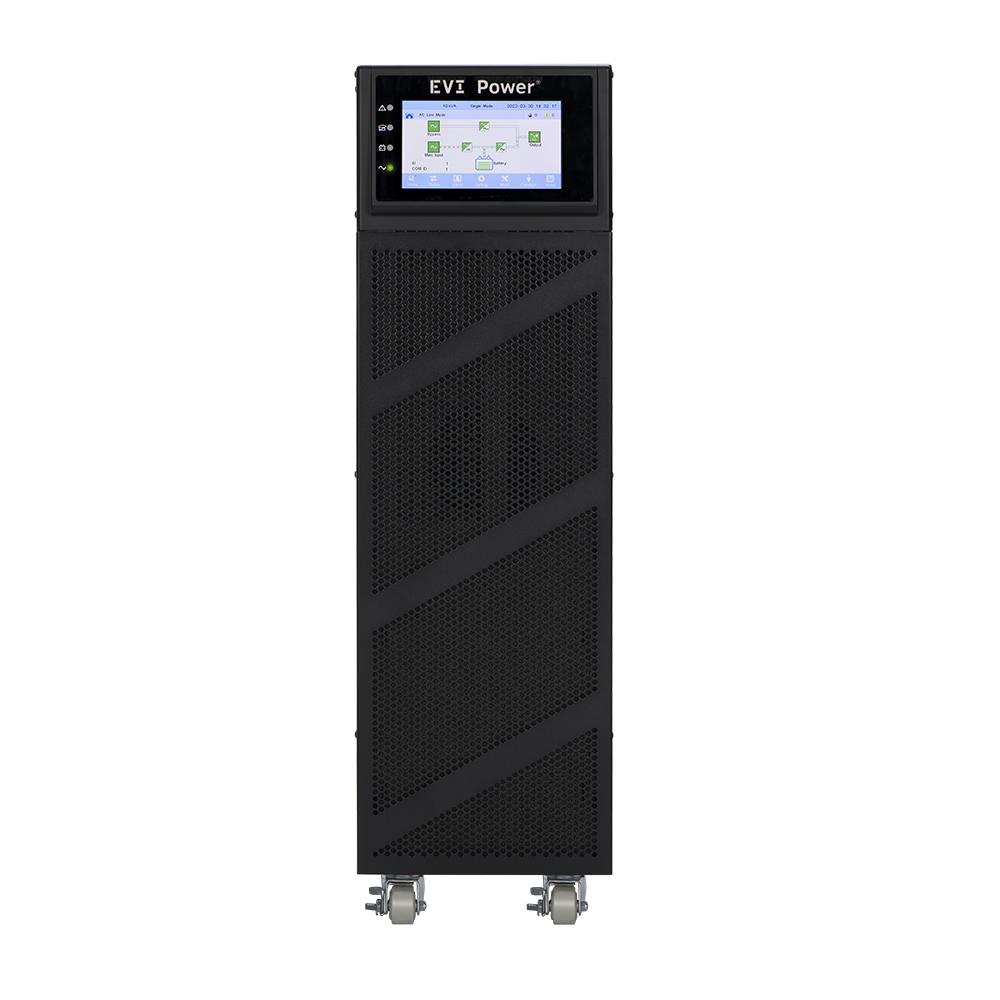

The EVI 40kVA Online 3 Phase UPS is a high-capacity industrial power backup system designed for data centers, hospitals, telecom infrastructure, and heavy-duty industrial environments. It uses true online double conversion technology with DSP control to deliver continuous, clean, and stable power with zero transfer time.
Specifications
- Capacity: 40000VA / 36000W (40kVA / 36kW)
- Topology: Online double conversion UPS with DSP control
- Input/Output: 3 Phase input and 3 Phase output
- Transfer Time: 0 ms (no interruption)
- Input Voltage Range: 208–478V AC
- Input Frequency Range: 40–70Hz
- Power Factor: Output 0.9 PF, input PFC technology
- Harmonic Distortion: ≤3% input current THD
- Battery: Inbuilt batteries with optional external battery packs
- Redundancy: N+X parallel support (up to 4 units)
- Display: 7-inch touch LCD screen
- Communication: USB, RS232, RS485, parallel port, dry contact (SNMP optional)
- Features: ECO mode, DC start, intelligent charging, EPO function
- Protection: Full digital control for rectifier, inverter, and charging systems
- Usage: Data centers, industrial plants, telecom systems, hospitals, and mission-critical infrastructure
- Warranty: 2 Years (1 Year battery)
