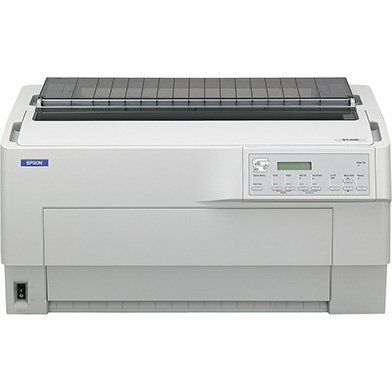

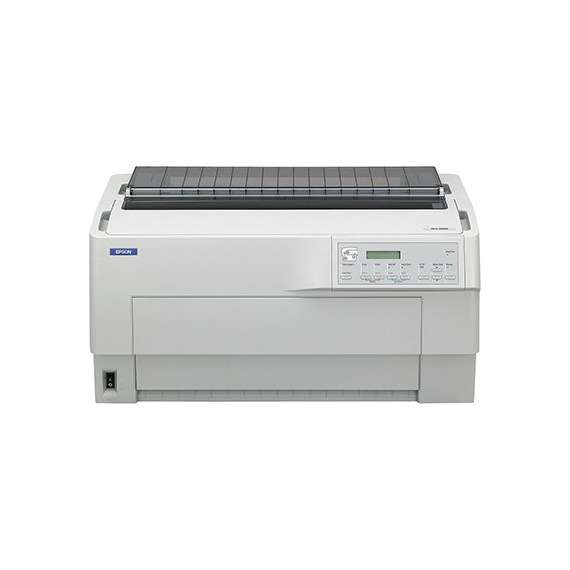

Epson DFX-9000 A3 Mono Dot Matrix Printer

The Epson DFX-9000 is a high-speed, heavy-duty 9-pin dot matrix printer designed for demanding business environments that require continuous, high-volume printing. It delivers exceptional reliability, long operational life, and the ability to handle multi-part forms, making it ideal for industrial, logistics, and enterprise document processing.

Specifications
  • Brand: Epson
  • Model: DFX-9000
  • Product type: Dot matrix printer
  • Print technology: Impact dot matrix
  • Pin count: 9 pins (36 needles, 4 x 9 configuration)
  • Print speed: Up to 1550 characters/sec (HighSpeed-Draft mode)
  • Print resolution: 240 x 144 dpi
  • Columns: 136 columns
  • Copy capability: Up to 10-part forms (1 original + 9 copies)
  • Ribbon yield: Up to 15,000,000 characters
  • Print head life: Up to 200 million strokes/wire
  • MTBF: 20,000 hours
  • Memory: 128 KB
  • Interfaces: USB 2.0, Serial, Bidirectional parallel; optional Ethernet (10/100 Base-T), RS-232
  • Paper handling: Continuous forms (front and rear tractors), labels, multi-part forms
  • Emulations: IBM PPDS, ESC/P
  • Noise level: 58 dB (A) during operation
  • Power consumption: 185W (operation), 75W (standby)
  • Dimensions: 700 x 378 x 363 mm
  • Weight: 34 kg
  • Operating temperature: 5°C to 35°C
  • Operating humidity: 10% to 80% RH
  • Compatible OS: Windows 2000, XP, 7, 8, 98
  • Included software: Epson Status Monitor
  • Warranty: 12 months on-site service
  • Application: High-volume invoicing, logistics, industrial reporting, and continuous form printing
  • Performance: Ultra-reliable heavy-duty printing for enterprise workloads
