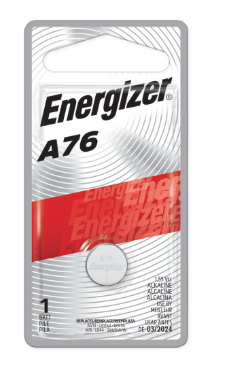

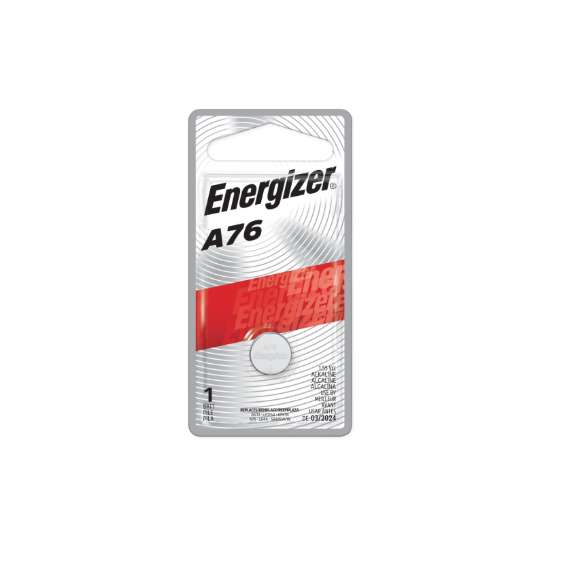

Energizer LR44/A76 electronic battery
LR44/A76
Please sign in so that we can notify you about a reply
- Reliable power for watches, toys, glucose monitors, and calculators
- Cell size: A76
- Type: Miniature Alkaline
- Volt: 1.5
- Replacement for: 157, 303, 357, AG13, EPX76, LR44, S76, SG13, SR44
Chemical System: Manganese Dioxide (MnO2
)
Designation: ANSI/NEDA 1166A, IEC-LR44
Nominal Voltage: 1.5 Volts
Typical Capacity: 175 mAh* (to 0.9 volts)
Capacity Test: 6.8K ohm continuous drain at 21°C (70°F)
Typical Weight: 1.85 grams (0.07 oz.)
Typical Volume: 0.57 cubic centimeters (0.035 cubic inch)
Impedance (40 Hz): 5 to 15 ohms
Max Bulge: This battery will bulge as it is discharged,
but will not exceed the maximum height
shown on the battery drawing.
