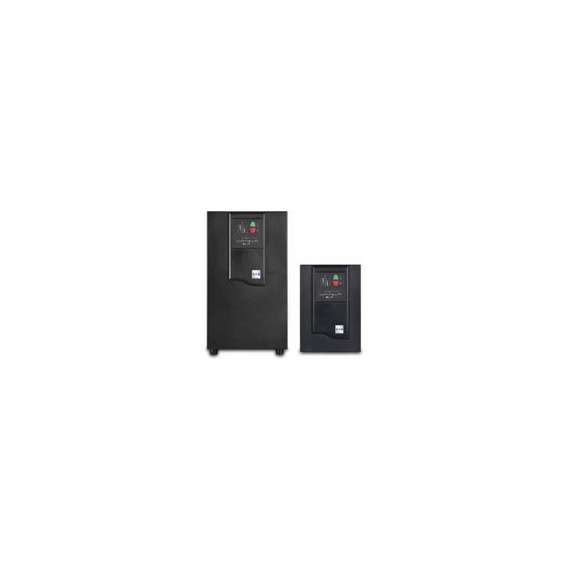

Eaton EDX1000H 1000VA UPS
Please sign in so that we can notify you about a reply
EDX1000H
Eaton DX 1000VA Tower
| General | ||
| Topology | Online double-conversion IGBT with micro-controller | |
| Configuration | Tower | |
| Style Number | EDX1000H | |
| Part Number | EDX1000H | |
| Rating (VA/Watts) | 1000VA/700W | |
| UPS Bypass | In-Built Automatic Relay Bypass | |
| Dimensions (H x W x D, mm) | 220 x 145 x 400 | |
| Weight (kg) | 14 | |
| Warranty | 2 years warranty | |
| Efficiency | >85>#/td### | |
| Electrical Input | ||
| Connection | (1) IEC-320-C14
 | |
| Input Voltage Range | 122V to 300V | |
| Nominal Voltage | 220V | |
| Voltage Range | 208/220/230/240V | |
| Frequency | '50/60Hz, auto-detection | |
| Frequency Range | 46Hz - 64Hz | |
| Input Power Factor | > 0.95pf | |
| Input Current Distortion | <30% THDi | |
| Electrical Output | ||
| Voltages | 208/220/230/240V | |
| Nominal Voltage | 220V | |
| Voltage Range | 208/220/230/240V | |
| Output voltage regulation | ±2>#/td### | |
| Output Receptacles | (4) IEC-320-C13
 | |
| Power Factor | 0.7 | |
| Output Frequency | 50 / 60Hz | |
| Load Crest Factor | 3:1 | |
| Battery | ||
Runtime
(Minutes)
100
200
300
400
500
600
700
0
20
40
60
80
100
120
140
| ||
| Battery Description | Valve Regulated Lead Acid, AGM | |
| Battery Type | 3x 12V, 7.2 Ah | |
| Start On Battery | Unit can be started without being connected to AC utility power -- allows for portable power source | |
| Recharge Time | < 5 hours to recover 90 percent of nominal backup | |
| Communications | ||
| User Interface | Led's | |
| LEDs | LED mimic diagram with 4 x LEDs for Utility, Bypass, Inverter & Battery Status, | |
| Audible Alarms | Battery Operation Mode, Low Battery, General Fault, Overload, On Bypass | |
| Communication Ports | 1 off Intelligent-Slot (Empty), 1 x RS232 DB9 Serial Port | |
| Power Management Software | WINPOWER power management software, included on CD | |
| Environmental & Standards | ||
| Audible Noise | <50dB | |
| Operating Temperature | 0°C to 40°C | |
| Safety markings | CE | |
| EMC Markings | IEC/EN 62040-2 Category C3 | |
| Markings | CE, C−Tick | |
| Data Line Protection | Input / output jacks included for telephone / modem / internet line surge protection | |
| Storage Temperature | 0°C to 40°C | |
| Relative Humidity | 5 to 95%, no condensation allowed | |
| Altitude | 1000m above sea level |
