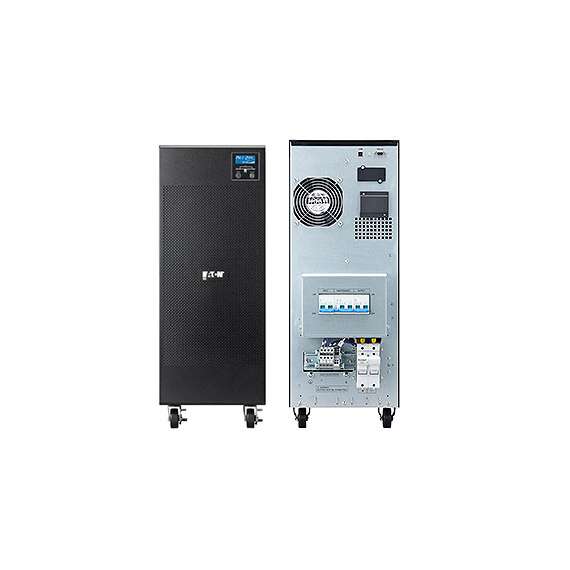

Eaton 9E6Ki 6KVA Smart-Online Double Conversion Tower UPS

EATONUPS9E6KI(4800W/6000VA) Topology-Online Double Conversion, Configuration-Tower, Input Voltage Range-176-276V without derating (up to 110-276V with derating), Nominal Voltage-220/230/240V, Freq-50/60 Hz auto selection, Short Circuit current -82A, Output Voltage -220V/230V/240V ±2 %, Voltage THD- <3%, Efficiency (Normal Mode)-Up to 93% in Online mode, 97% in ECO mode, Communication Ports-1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), Communication Slot-1 slot for Network-M2, Modbus-MS or Relay-MS cards, Power Management Software-Intelligent Power Software, Warranty 1

Input voltage
110 - 276 V

Primary frequency
40 - 70 Hz

Number of phases primary
1

Output voltage
220 - 240 V

Secondary frequency
50 - 60 Hz

Output effective power
4800 W

Output apparent power
6000 VA

Type of interface
Other

Number of phases secondary
1

SNMP
Yes

Voltage type
AC

Height
708.5 mm

Width
262.4 mm

Depth
612.9 mm

Transition time for full load
8 min

Weight
68 kg

Network-management
Yes

USV- technology
Online

Construction type
Free standing model

Max. voltage distortion output (linear load)
2 %

Output power factor
0.8

Overall efficiency
91 %

Efficiency in eco-mode
96 %

Potential free switch contact
Yes

Auto shut down function
Yes

Input connection
Fixed connection

Number of output connections C13
0

Number of output connections C19
0

Number of output connections with protective contact (SCHUKO)
0

Number of output connections fixed connection
1
