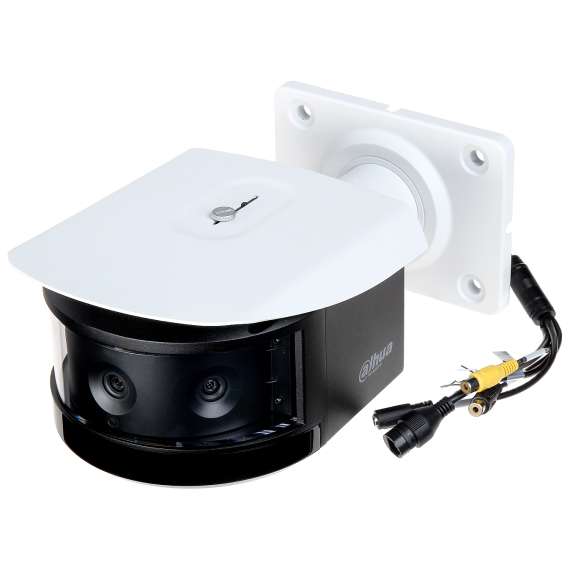

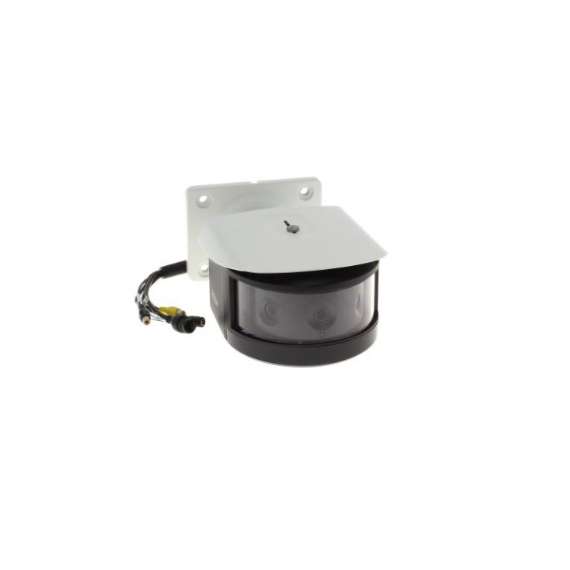

Dahua Vandalproof Panoramic IP Network Camera
![Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]](https://shopit.co.ke/images/thumbnails/40/40/detailed/65/dh-ipc-pfw8601p-a180_d.jpg.jpg "Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]"){kind=small}
![Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]](images/detailed/65/dh-ipc-pfw8601p-a180_d.jpg "Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]")
![Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]](images/detailed/65/IPC-PFW8601P-A180.jpg "Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]")
![Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]](images/detailed/65/dahua-technology-ipc-pfw8601-a180-ip-camera.jpg "Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]")
![Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/65/dh-ipc-pfw8601p-a180_d.jpg.jpg "Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]")
![Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/65/IPC-PFW8601P-A180.jpg.jpg "Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]")
![Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]](https://shopit.co.ke/images/thumbnails/50/50/detailed/65/dahua-technology-ipc-pfw8601-a180-ip-camera.jpg.jpg "Buy Dahua Vandalproof Panoramic IP Network Camera in [storefront]")
IPC-PFW8601P-A180
Please sign in so that we can notify you about a reply
The IP camera is equipped with 3 high quality image sensors and 3 lenses with 3.6 mm focal length. Thanks to its unique design, the camera has a 180° viewing angle.
PoE powering possibility, compatible with the 802.3af standard makes the device more universal and easier to install.
Specifications
| Standard: | TCP/IP |
| Sensor: | 3 x 1/2.8 ” Megapixel Exmor R CMOS |
| Matrix size: | 3 x 2.0 Mpx – 6.0 Mpx (total) |
| Scanning system: | Progressive |
| Resolution: | 4096 x 832 – 3.4 Mpx , 3840 x 780 – 3.0 Mpx , 2560 x 520 – 1.3 Mpx , 1280 x 260 – 0.3 Mpx , 1024 x 208 – 0.2 Mpx |
| Lens: | 3 x 3.6 mm / F1.8 |
| View angle: | 180 ° (horizontal) 44 ° (vertical) |
| Range of IR illumination: | 30 m |
| S/N ratio: | > 50 dB |
| RS-485 interface: | |
| Image compression method: | H.265 / H.264 / MJPEG |
| Alarm inputs / outputs: | 2 / 1 |
| Audio: |
|
| Bitrate: | 1024 … 7424 kbps @ H.265 4096 … 12288 kbps @ H.264 |
| Main stream frame rate: | 25 fps @ 3.4 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, 802.1x Radius, Multicast, ICMP, IGMP, SNMP |
| Memory card slot: | Micro SD memory cards up to 128GB support (possible local recording) |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P)
|
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / admin |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Port ONVIF: | 80 |
| RTSP URL: | rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype=1 – Sub stream |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | 2.42 |
| Main features: |
|
| Power supply: |
|
| Power consumption: | < 23 W |
| Housing: | Compact, Metal |
| Color: | Black / White |
| Vandal-proof: | IK10 |
| “Index of Protection”: | IP67 |
| Operation temp: | -40 °C … 60 °C |
| Weight: | 2.6 kg |
| Dimensions: | 298 x 173 x 121 mm |
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
