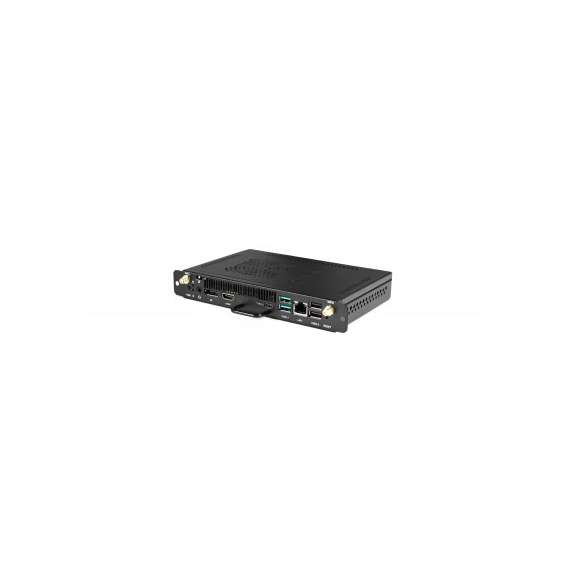

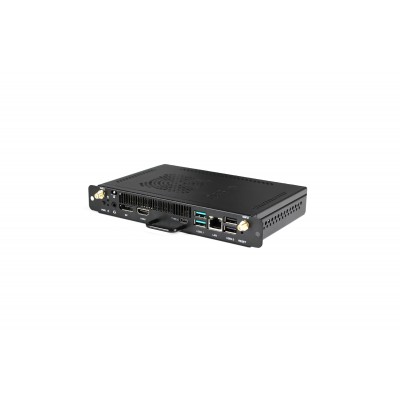

Dahua SP-PI5C821 Intel Alder lake-H i5 4.40 GHzntel Graphics Windows 11 Pro Interactive Display Desktop

The Dahua SP-PI5C821 is a compact interactive desktop system designed for commercial, office, and display applications. Powered by a 12th Gen Intel Core i5 processor, it delivers efficient everyday performance in a small-form-factor design suitable for kiosks, control systems, and business environments.

Specifications

• Processor: Intel Core i5-12450H (12th Gen, up to 4.4 GHz, 8 cores, 12 threads, 12MB cache)
• Graphics: Integrated Intel UHD Graphics (12th Gen Intel processors)
• Memory: 8GB RAM
• Storage: 256GB SSD
• Operating System: Windows 11 Pro supported (or no OS option)
• Audio: Realtek ALC897 integrated audio chipset
• Wireless: Intel Wi-Fi 6 AX101 (2230 CNVi module) with Bluetooth support
• BIOS: AMI UEFI BIOS
• Chipset: SOC platform
• Display Support: External display via HDMI and DisplayPort (up to 4K output support)

Ports

• 1 x DC-in power port, 1 x RJ-45 Gigabit Ethernet (10/100/1000 Mbps), 2 x USB 3.1 ports, 2 x USB 2.0 ports, 1 x USB Type-C (USB 3.1), 1 x DisplayPort 1.2 output (up to 4K @ 60Hz), 1 x HDMI 1.4 output (up to 4K @ 30Hz), 1 x Line-out / MIC-in combo audio port, 1 x 80-pin JAE expansion interface

Performance

• Cores: 8 cores
• Threads: 12 threads
• L3 Cache: 12MB
• Power Consumption: Typical 53W, Max 58.8W

Design & Build

• Form Factor: Compact embedded desktop module
• Dimensions: 119 × 180 × 30 mm
• Weight: 0.75 kg (net)
• Material: SGCC metal casing
• Color: Black

Environment

• Operating temperature: -5°C to 45°C
• Humidity: 10% to 90% non-condensing

Certifications

• CE certified
• Energy Star certified

Accessories

• 2 x antennas, Mounting screws, User manual, Desiccant pack

Warranty

• Manufacturer warranty
