Dahua PTZ1C200UE-GN 2MP Starlight IR PTZ Network Camera

Camera

Image Sensor

1/2.8" STARVIS™ CMOS

Max. Resolution

2MP

Effective Pixels

1920 (H) × 1080 (V)

ROM

128MB

RAM

256MB

Electronic Shutter Speed

1/3–1/30000s

Minimum Illumination

Color: [email protected]
B/W: [email protected]
0 Lux (IR light on)

IR Distance

20m (65.6ft)

IR On/Off Control

Manual/SmartIR

IR LED Number

1

Lens

Focal Length

3.6mm

Aperture

F2.0

Field of View

84.22°; V: 45.8°

Close Focus Distance

0.9m

Iris Control

Fixed Iris

DORI Distance

Detect

Observe

Recognize

Identify

55.2 m (181.10 ft)

22.1 m (72.51 ft)

11.0 m (36.09 ft)

5.5 m (18.04 ft)

PTZ

Pan/Tilt Range

Pan: 0°–180°; Tilt: -5°–55°

Manual Control Speed

Pan: 6°/s; Tilt: 3°/s

Intelligence

IVS

Tripwire; Intrusion; Object Abandoned/Missing

Advanced Intelligence

Face Detection; Heat Map

Video

Video Compression

H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG; H.265 +; H.264+

Streaming Capability

3 Streams

Resolution

1080P (1920 ×1080); 1.3M (1280×960); 720P (1280 × 720); D1 (704 × 576); CIF (352 × 288)

Video Frame Rate

Main Stream:
1080P/1.3M/720P(1–25/30fps)
Sub Stream 1:
D1/CIF(1–25/30fps)
Sub Stream 2:
720P/D1/CIF(1–25/30fps)

Bit Rate Control

Variable Bit Rate/Constant Bit Rate

Video Bit Rate

H.264: 216Kbps–8192Kbps
H.265: 108Kbps–8192Kbps

Day/Night

ICR

BLC

Support

WDR

120dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest (RoI)

Support

Electronic Image Stabilization

Support

Defog

Electronic Defog

Digital Zoom

16x

Audio

Audio Compression

G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729

Audio In

1

Audio Out

1

Network

Ethernet Port

1 RJ-45 Port 10/100Base-T

Network Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE

Interoperability

ONVIF; CGI

Streaming Method

Unicast/Multicast

User/Host

20 (Total bandwidth 48M)

Edge Storage

FTP; Micro SD card (256G); P2P

Browser

IE7 and newer versions
Chrome 42 and older versions
Firefox 52 and older versions
Safari

Management Software

Smart player
Configtool
SMART PSS
DMSS
DSS

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

Electrical

Power Supply

DC12V/1.5A±10% (optional)
POE (802.3af) (optional)

Power Consumption

7W
11W (PTZ, IR light)

Environmental

Operating Conditions

–30°C to +60°C (–22°F to 140°F)

Operating Humidity

≤95% RH

Ingress Protection

IP66; TVS 4000V lightning protection; surge protection

Construction

Housing Material

Aluminium alloy ADC12

Dimensions

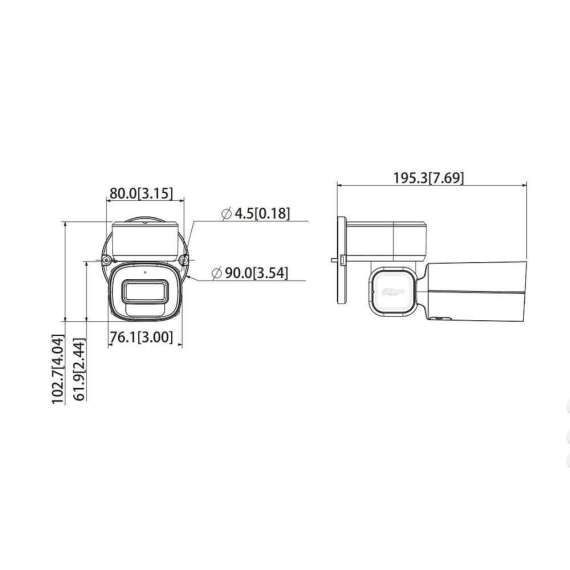

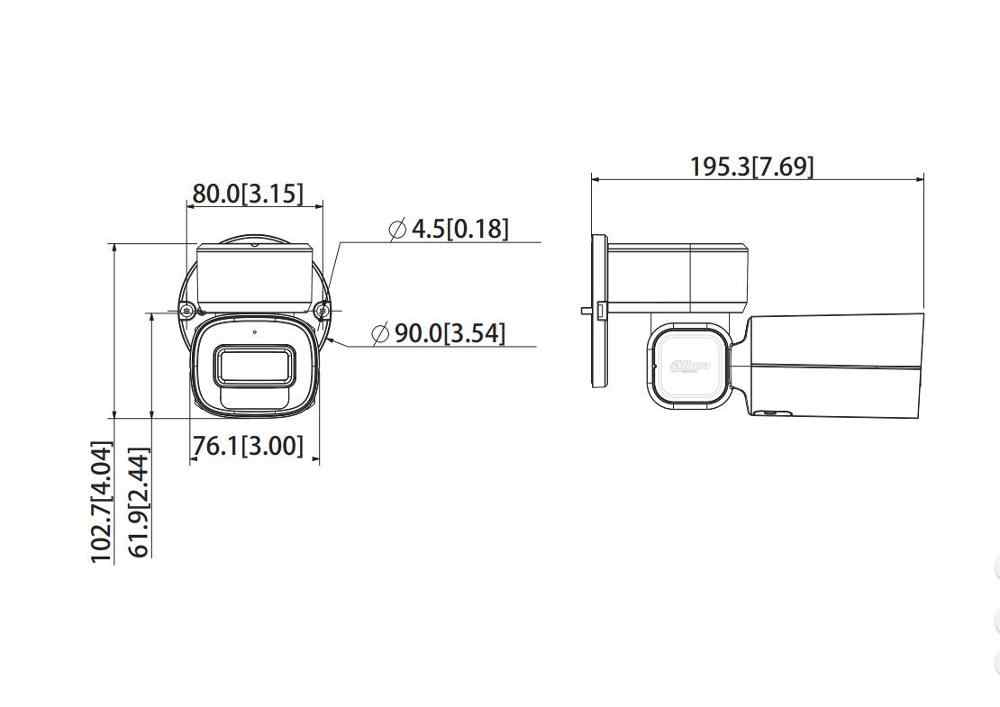

Wall mounted: 195.3 mm×90 mm×102.7 mm (7.69"×3.54"×4.04")

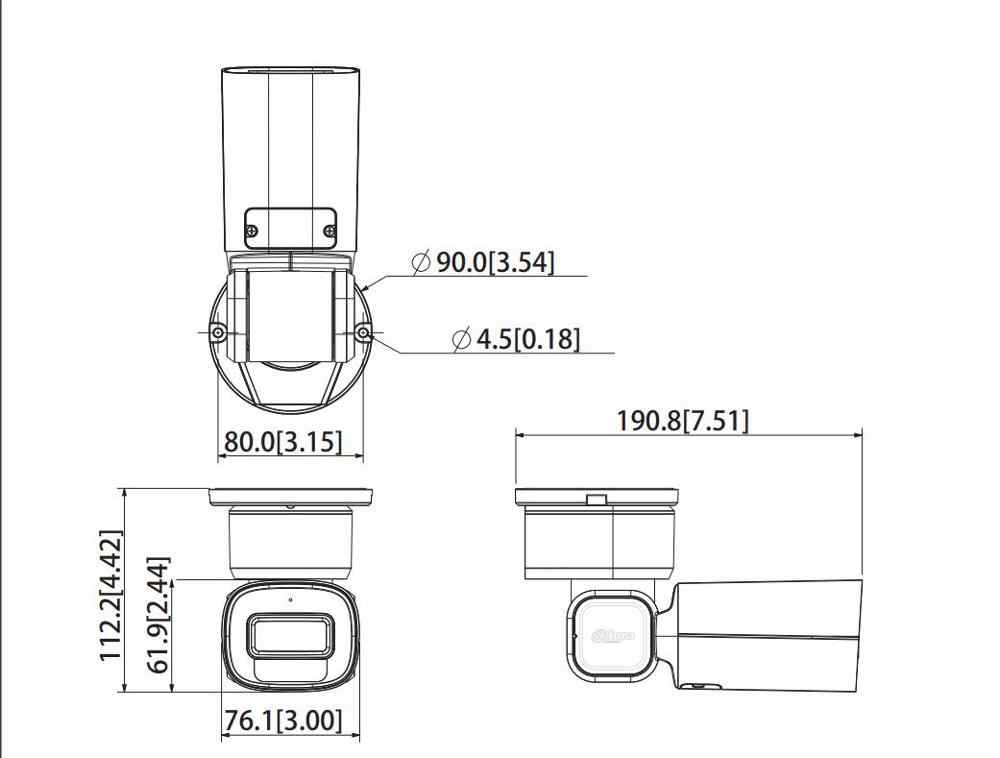

Ceiling mounted: 190.8 mm×90 mm×112.2 mm (7.51"×3.54"×4.12")"

Weight

Net Weight: 0.9 kg (1.98 lb);

Gross Weight: 1.2 kg (2.65 lb)
