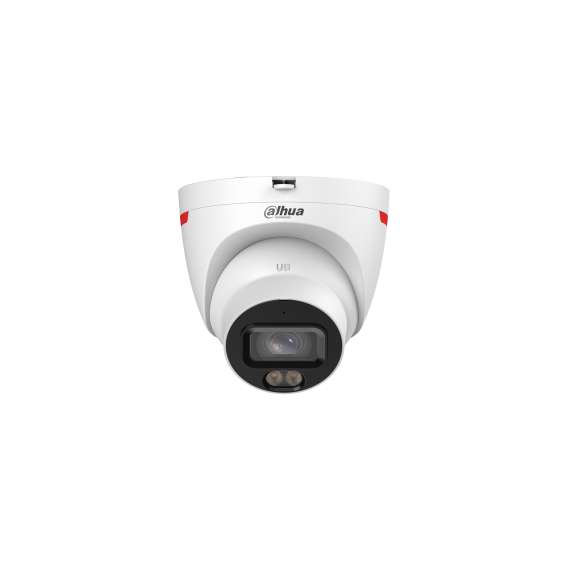

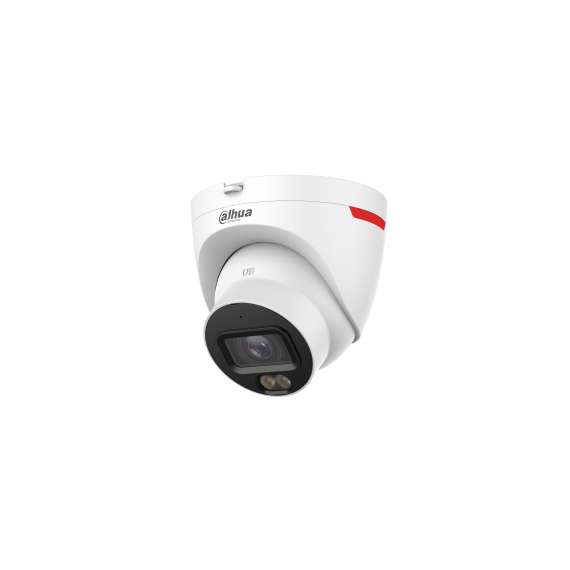

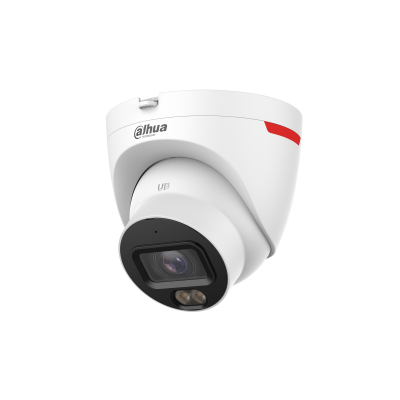

DAHUA IPC-HDW2449T-S-PRO WizSense Network Camera 4MP WizColor Fixed focal Eyeball CCTV Camera

The Dahua IPC-HDW2449T-S-PRO is a 4MP WizSense WizColor eyeball network camera designed for ultra-low-light full-colour surveillance. It delivers AI-powered detection, smart perimeter protection, and reliable 24/7 outdoor security performance in harsh environments.

Specifications

• Image Sensor / Processor: 1/1.8" CMOS, 128 MB ROM, 256 MB RAM
• Max Resolution: 2688 × 1520
• Scanning / Shutter: Progressive, Auto/Manual 1/3 s–1/100,000 s
• Minimum Illumination: 0.0005 lux @ F1.0, >56 dB SNR
• Lens: Fixed-focal M16 mount, 2.8 mm / 3.6 mm options, F1.0
• Field of View: 2.8 mm (H 112°, V 60°, D 134°) / 3.6 mm (H 94°, V 50°, D 113°)
• Focus Distance: 2.8 mm (2 m), 3.6 mm (3 m)
• Smart Illumination: Up to 30 m warm light, 2 LEDs, auto/manual control
• Image Controls: 120 dB WDR, 3D NR, BLC, HLC, ROI (4 areas), mirror, image rotation (0°/90°/180°/270°)
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG; Smart H.265+/H.264+
• Streams / Frame Rate: 2 streams, up to 25/30 fps depending on resolution
• Resolution Support: 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
• Smart Features: SMD Plus, IVS (intrusion, tripwire), smart search
• Detection Zones: Motion detection (4 zones), privacy masking (4 areas)
• Audio: Built-in microphone, G.711a/G.711Mu/PCM/G.726
• Network: RJ-45 (10/100 Mbps), IPv4/IPv6, HTTP, TCP, UDP, RTSP, FTP, SMTP, NTP, P2P, and more
• Storage: Micro SD up to 256 GB, NAS, FTP, SFTP
• Compatibility: ONVIF (S/G/T), CGI, IE/Chrome/Firefox, DMSS mobile app
• Power: 12 VDC or PoE, max 6.4 W
• Protection: IP67 weatherproof rating
• Operating Temp: -40°C to +60°C
• Build: Metal inner core, plastic cover
• Dimensions / Weight: 109.5 mm × 109.9 mm, 0.42 kg net
