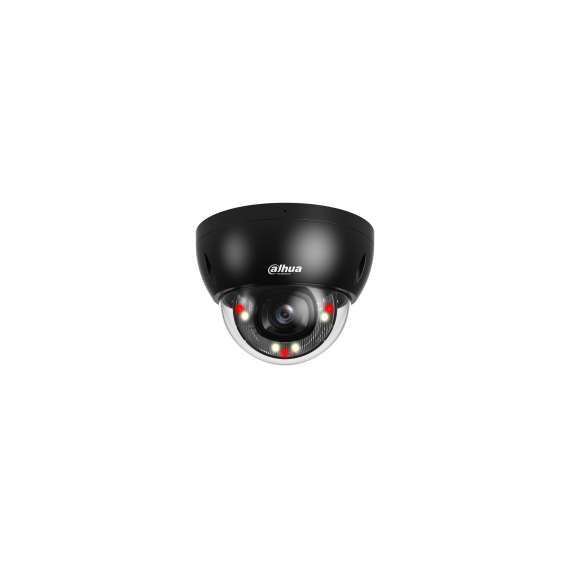

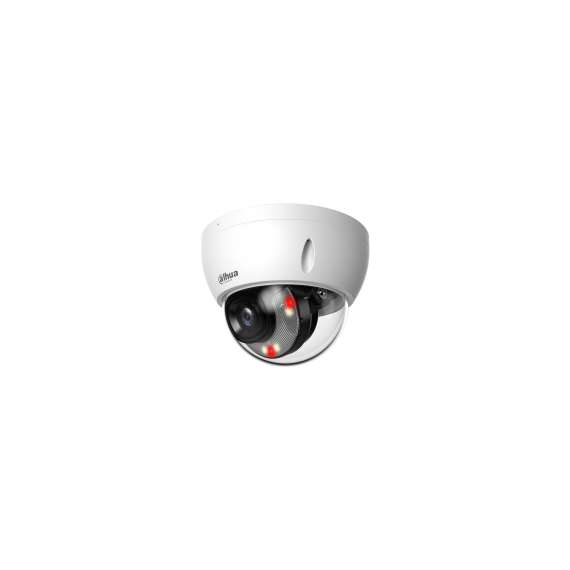

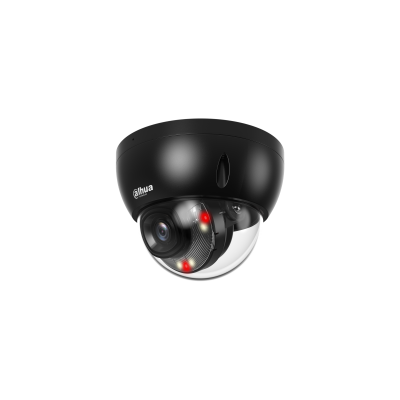

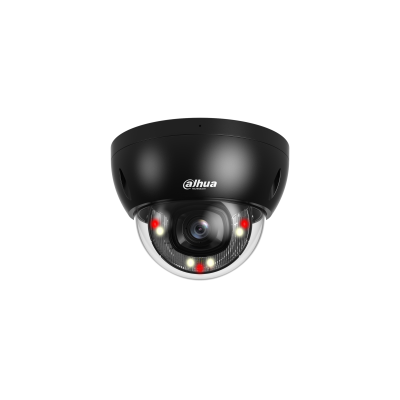

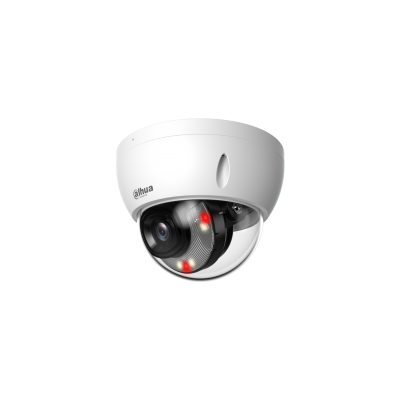

DAHUA IPC-HDBW2449E-S-IL 4MP Smart Dual Light Fixed focal Dome CCTV Camera

The Dahua DH-IPC-HDBW2449E-S-IL is a 4MP dome camera delivering full-color night vision up to 30 meters with its Smart Dual Light technology. Featuring a wide-angle fixed lens, 120 dB WDR, built-in microphone, and AI-powered human and vehicle detection, it offers robust, detailed perimeter protection in a durable IP67 and IK10-rated metal housing for demanding outdoor installations.

Specifications

• Image Sensor: 1/2.9" CMOS, Max. Resolution 2688 (H) × 1520 (V)

• Lens Options: 3.6 mm (H: 83°, D: 100°) or 2.8 mm (H: 101°, D: 120°) fixed-focal, Max. Aperture F1.6

• Illumination: Smart Dual Light, 3 IR LEDs and 4 Warm Light LEDs, max distance up to 30 m

• Minimum Illumination: 0.006 lux (Color, 30 IRE), 0 lux when illuminator is on

• Video Compression: Smart H.265+, Smart H.264+, H.265, H.264

• Frame Rate: Main stream up to 2688 × 1520 at 20 fps, 2560 × 1440 at 25/30 fps

• Streaming Capability: 2 streams with configurable resolution down to CIF

• Image Enhancements: 120 dB True WDR, 3D NR, BLC, HLC, Auto/Manual White Balance and Gain Control

• Day/Night: Auto (ICR), Color, B/W with Smart Illumination control

• Angle Adjustment: Pan 0°–355°, Tilt 0°–65°, Rotation 0°–355°

• Audio: Built-in Microphone, Compression G.711a, G.711Mu, PCM, G.726

• Intelligent Functions: IVS Perimeter Protection (Intrusion, Tripwire with human/vehicle classification), SMD Plus, Motion Detection (4 areas), Smart Search with compatible NVR

• Privacy Masking: Up to 4 configurable areas

• Alarm Events: Motion detection, video tampering, network disconnection, IP conflict, SD card error, audio detection, security exception

• Network Interface: 1 x RJ-45 (10/100 Base-T) Ethernet port

• Network Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTSP, RTP, SMTP, DHCP, NTP, ONVIF (Profile S, G, T), P2P

• Storage: Micro SD card slot supporting up to 256 GB, FTP, SFTP

• Power Supply: 12 VDC or Power over Ethernet (PoE 802.3af)

• Power Consumption: Basic 2.4 W (12 VDC), Max. 6.6 W (12 VDC) with H.265, AI, WDR, and illuminator on

• Durability: IP67 weatherproof and IK10 vandal-resistant, metal casing

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)

• Dimensions and Weight: 81.0 mm × Φ109.9 mm, Net weight 0.35 kg
